Specifications
Brand Name :
Sussman Machinery
Model Number :
SSM-DFF
Certification :
CE ISO 9001
Place of Origin :
Jiangsu,Chain
MOQ :
1 set
Price :
negotation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10 set per month
Delivery Time :
95 days
Packaging Details :
Standard Packing with steel wire fixed and film coated
Power(w) :
7.5KW+4KW
Production capacity :
0-12m/min
Step of rollers :
Up floor 21 rollers，down floor 21 rollers
Raw material :
Galvanized Sheet，PPGI，Color Steel
Material thickness :
0.3-0.8mm
Voltage :
220V 60HZ 3phases or Customized
Control system :
PLC
Cutting blade material :
cr12 with quenched treatment
Roller material :
First grade 45# steel/GCr15
Machine Sizes :
9.5*1.2*1.1m
Weight :
8,500KGS
Color :
Client's Request
Warranty :
1 Year
Description

0.3-0.8mm Thickness Trapozial IBR PBU Roofing Sheet Double Layer Roof Panel Roll Forming Machine

Most Popular Design Galvanized Steel 0.3-0.8mm Thickness Trapozial IBR PBU Roofing Sheet Double Layer Roof Panel Roll Forming Machine with hydraulic decoiler

1.Trapozial IBR PBU Roofing Sheet Roll Forming Machine Technical Parameter

1 Suitable to process Galvanized steel,PPGI,Color steel
2 Width of the plate As customer need
3 Thickness of the plate 0.3-0.8 mm
4 De-coiler 5 tons hydraulic decoiler with arm and coil car

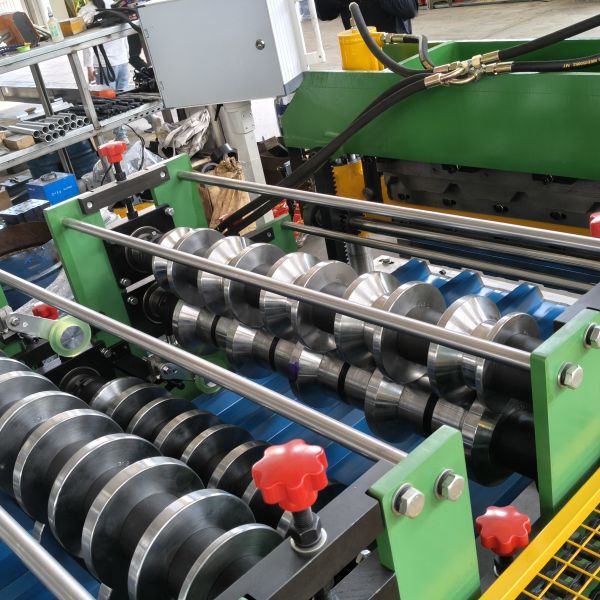

5 Rollers for forming Up floor 21 rollers,down floor 21 rollers
6 Diameter of the roller Φ60mm
7 Rolling material High Grade Steel 45#
8 Main motor power 7.5KW
9 Productivity About 0-12m/min
10 Cutting method Stop to cutting
11 Material of the cutting blade Cr12Mov
12 Hydraulic cutting power 4kw
13 Processing precision Within 1.50mm
14 Control system Siemems PLC control
15 Main structure of the machine 350 H steel
16 Weight About 8.5T
17 Dimensions 9.5*1.2*1.1m
18 Voltage 220V 60Hz 3phases,or according to your request

2. Trapozial IBR PBU Roofing Sheet Roll Forming Machine’s Components

Item Components Name Quantity
1 5 tons hydraulic decoiler with arm and coil car 1 set

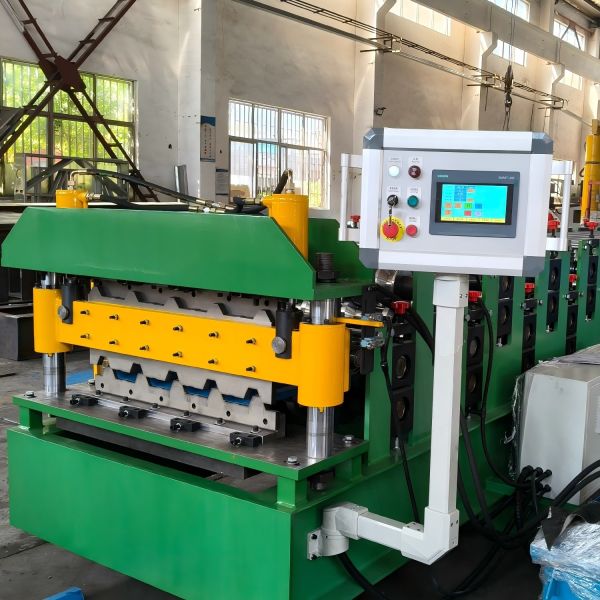

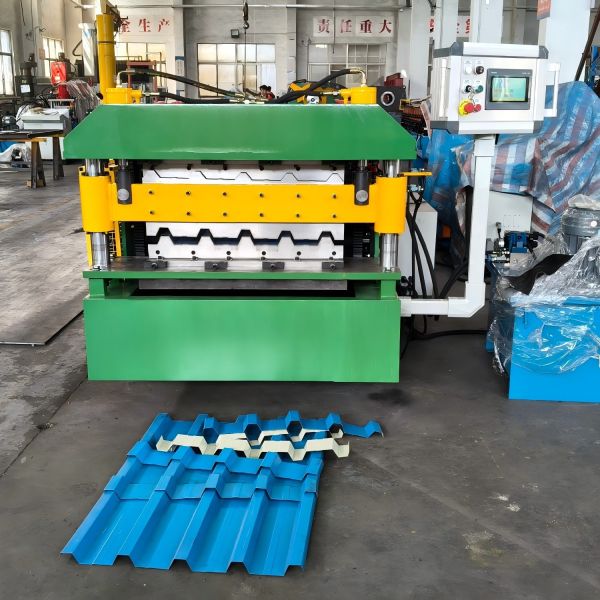

2 Main Roll Forming Machine 1 set
3 Hydraulic Station 1 set
4 PLC control box 1 set
5 Hydraulic cutting 1 unit
6 Passive out table 1 unit

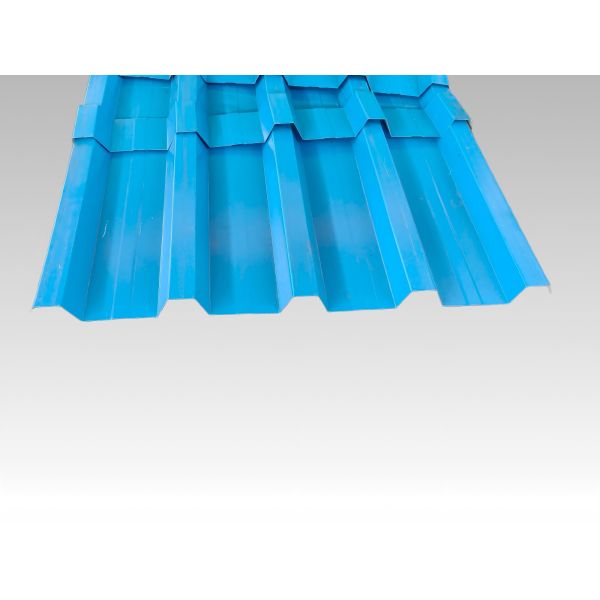

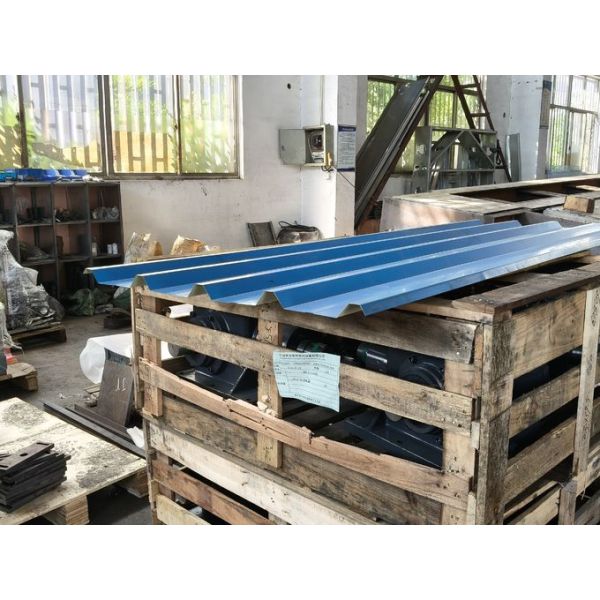

3.Trapozial IBR PBU Roofing Sheet Profile Samples

Most Popular Design Galvanized Steel 0.3-0.8mm Thickness Trapozial IBR PBU Roofing Sheet Double Layer Roof Panel Roll Forming Machine with hydraulic decoilerMost Popular Design Galvanized Steel 0.3-0.8mm Thickness Trapozial IBR PBU Roofing Sheet Double Layer Roof Panel Roll Forming Machine with hydraulic decoiler

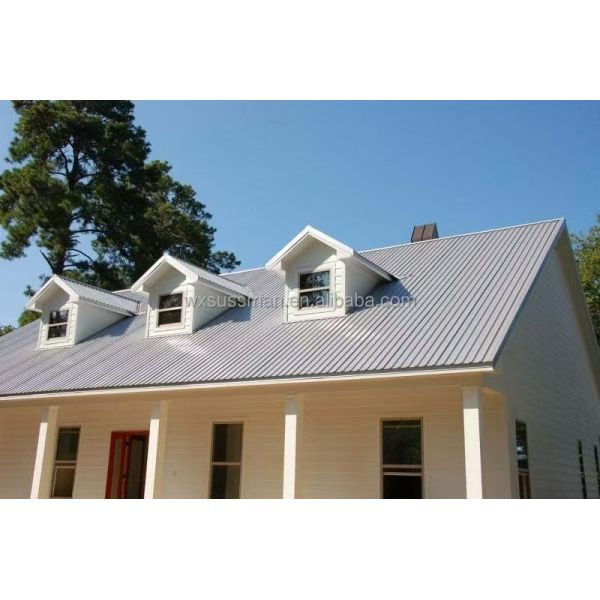

4.Appliction:


Most Popular Design Galvanized Steel 0.3-0.8mm Thickness Trapozial IBR PBU Roofing Sheet Double Layer Roof Panel Roll Forming Machine with hydraulic decoiler

We can make different profiles in one machine, please feel free to contact us to get more details about it !
