Specifications
Brand Name :
Sussman Machinery
Model Number :
SSM-U
Certification :
CE ISO 9001
Place of Origin :
Jiangsu,Chain
MOQ :
1 set
Price :
negotation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10 set per month
Delivery Time :
95 days
Packaging Details :
Standard Packing with steel wire fixed and film coated
Voltage :
380V 50Hz 3phases or as your requirements
Material thickness :
1.5-2.0 or Customized
Material :
Galvanized steel,Carbon steel
Power(w) :
11KW
Color :
Client's Request
Roller material :
45# Forged Steel
Cutting type :
Automatic Hydraulic Cutting
Warranty :
1 Year
After-sales service provided :
Engineers available to service machinery overseas,Online support,Video technical support
Description

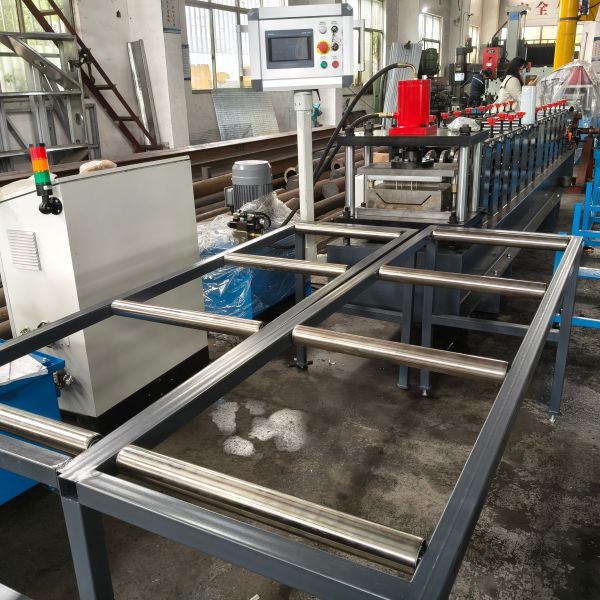

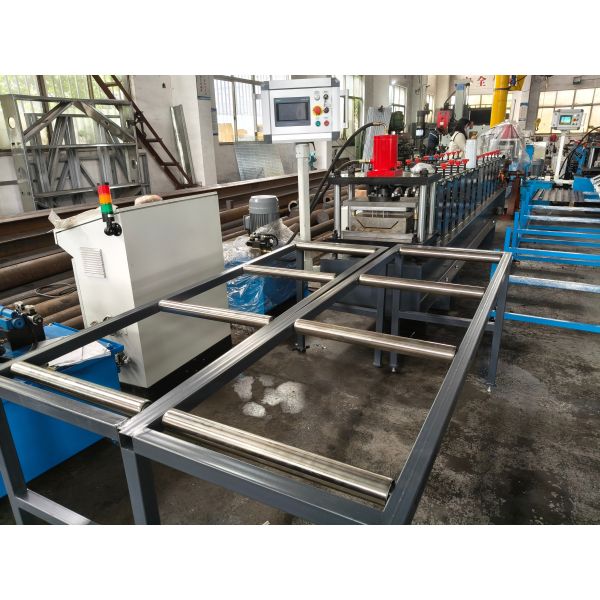

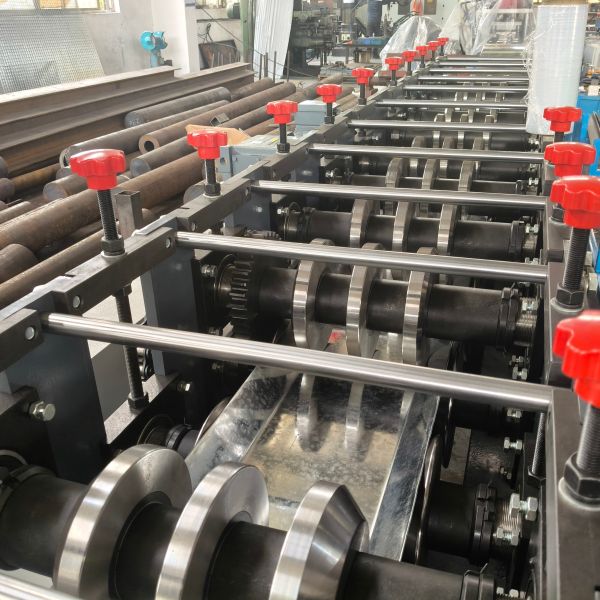

Galvanized Steel Carbon Steel U-Shaped Water-Stop Steel Sheet Pile/ Piling Plate Roll Forming Machine

Customized 1.5-3.0mm Thickness Galvanized Steel Carbon Steel U-Shaped Water-Stop Steel Sheet Pile/ Piling Plate Roll Forming Machine For Sale

1. U-Shaped Water-Stop Steel Sheet Pile/ Piling Plate Roll Forming Machine Technical Parameter

1 Suitable to process Galvanized steel,Carbon steel
2 Width of the plate As customer need
3 Thickness of the plate 1.5-3.0mm or customized
4 De-coiler 5 tons passive decoiler
5 Rollers for forming About 11 rollers
6 Diameter of the roller Φ75mm
7 Rolling material High Grade Steel 45#
8 Main motor power 11KW
9 Productivity About 0-12m/min
10 Cutting method Stop to cutting
11 Material of the cutting blade Cr12Mov
12 Hydraulic cutting power 4kw
13 Processing precision Within 1.50mm
14 Control system Siemems PLC control
15 Main structure of the machine 350 H steel
16 Weight About 3.0 T
17 Dimensions 5.5*1.0*1.0m
18 Voltage 220V 60Hz 3phases,or according to your request

2. U-Shaped Water-Stop Steel Sheet Pile/ Piling Plate Machine’s Components

Item Components Name Quantity
1 5 tons passive decoiler 1 set
2 Roll Forming Machine 1 set
3 Hydraulic Station 1 set
4 PLC control box 1 set
5 Hydraulic cutting 1 unit
6 Passive out table 1 unit

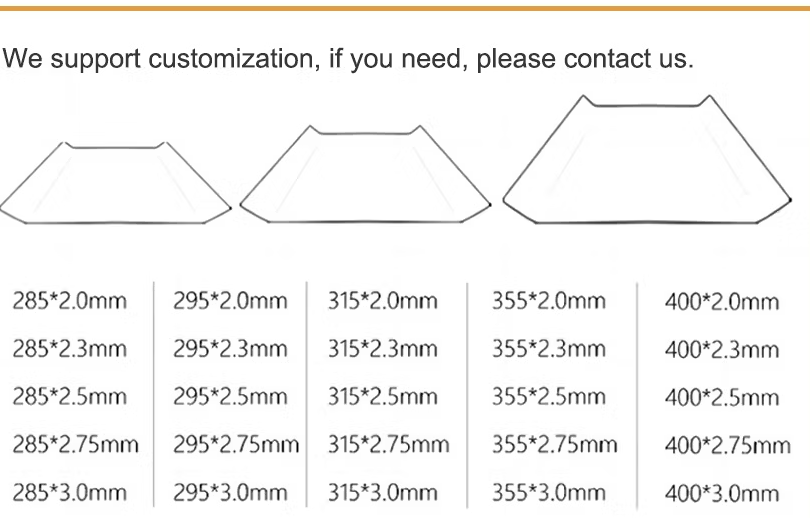

3.U-Shaped Water-Stop Steel Sheet Pile Profile Drawings

Customized 1.5-3.0mm Thickness Galvanized Steel Carbon Steel U-Shaped Water-Stop Steel Sheet Pile/ Piling Plate Roll Forming Machine For Sale

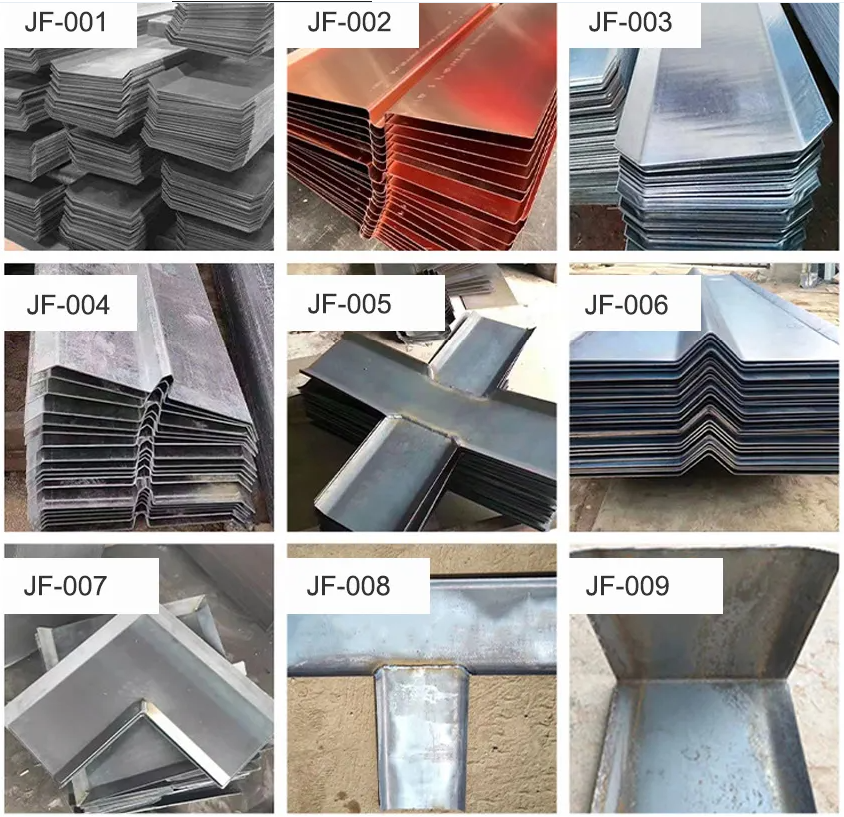

Samples:

Customized 1.5-3.0mm Thickness Galvanized Steel Carbon Steel U-Shaped Water-Stop Steel Sheet Pile/ Piling Plate Roll Forming Machine For Sale

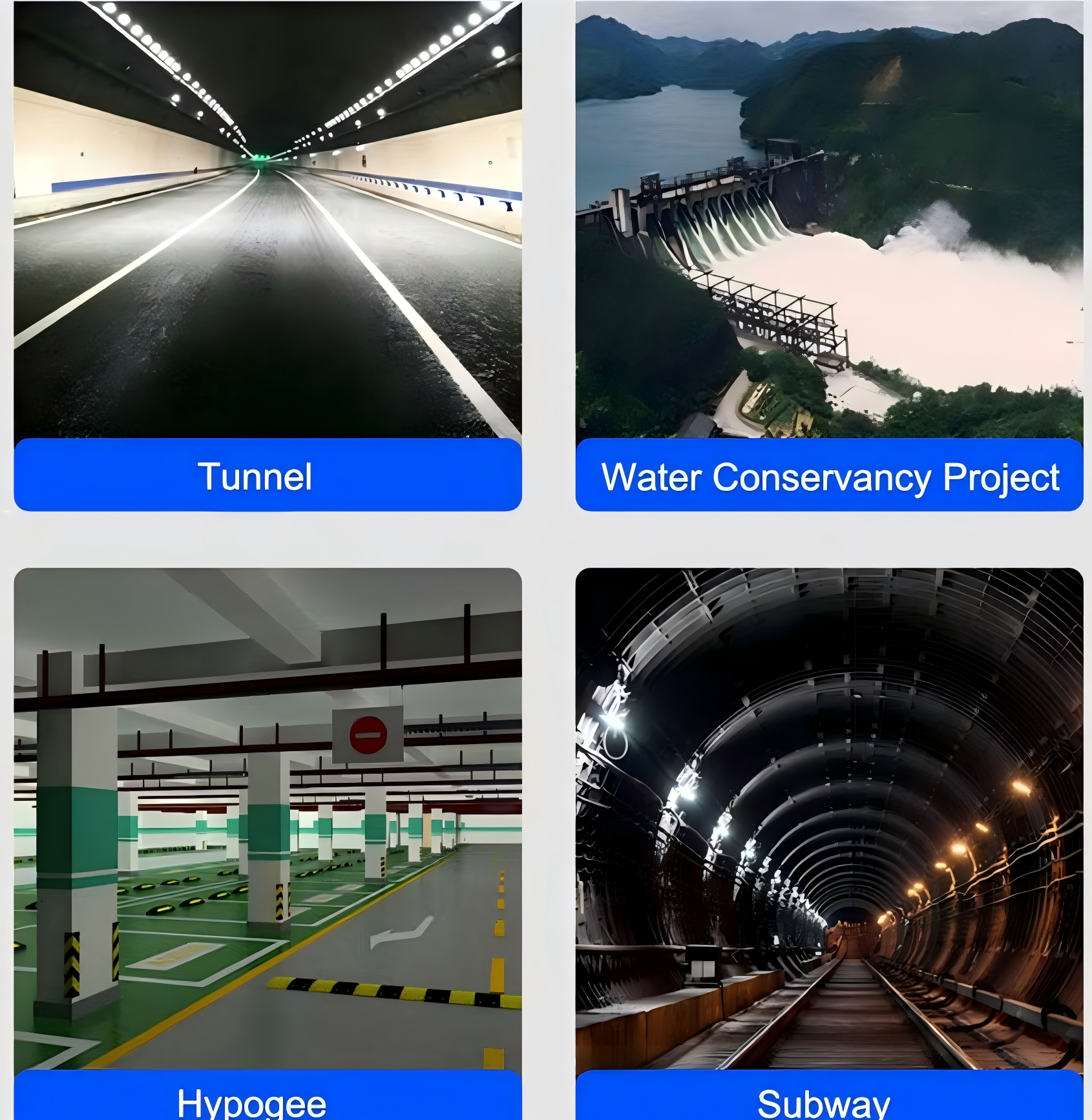

4.Appliction:

Steel waterstop, is also called water stop steel belt. It is made of steel plate, copper plate or alloy plate.

It is commonly used material for construction projects. Such as reinforced concrete structure, dam and other big projects.

It can change seepage path and extend the infiltration routes. It is anti-corrosion, suitable for construction condition that contains corrosion water. It can guarantee the protecting effect of projects.

It is also used in small area projects, that has high requirements for anti-leaking. Such as pouring holes and electric furnace holes in smelting plants.

Customized 1.5-3.0mm Thickness Galvanized Steel Carbon Steel U-Shaped Water-Stop Steel Sheet Pile/ Piling Plate Roll Forming Machine For Sale

Welcome to consult more details about it !
