Specifications
Brand Name :
Sussman
Model Number :
RF-ST
Certification :
CE, SGS, ISO
Place of Origin :
Wuxi, China
MOQ :
1 set
Price :
negotiable
Supply Ability :
10 sets/month
Delivery Time :
60 days after deposit
Packaging Details :
Film and steel
Steel thickness :
Calibre 24 22 20 26 Aluminum, pre-painted steel
Forming speed :
8-12m/min
Roller stations :
9 stations
Cutting method :
hydraulic cutting
Roof seam model :
KR18,45.7cm
Height :
steepness 6.35 cm (2 ½ in)
Description

Hidden Clips Model Calibre 24 SSR (Standing Sean Roof) Kr-18 Sheet Roll Forming Machine

What is KR-18 corrugated sheeting?


It is a concealed-fix corrugated profile designed for low-slope roofs. Thanks to its perforation-free assembly, it minimizes the risk of leaks and improves structural strength.

This portable standing seam machine is for both the workshop and for on-site operation. It is easy to transport, light weight with wheels for optional, mounted on frame.

It has no length limitations as it is manufactured in a single piece from gutter to ridge, is very popular in L.A.B Monterrey, Nuevo León, Mexico, Federal District, Guadalajara.

1. Technical Parameter

Number

Items

UnitType

RF-ST

1

Steel Thickness

mm

0.7-1.2mm for Color coated steel
0.5-0.8mm for aluminum sheet

2

Forming Speed

m/min

8-12

3

Roller stands

stations

9 stations

4

Roller Material

mm

45# steel, coated with chrome

5

Shaft material and diameter

mm

Ф70mm, 45# steel, fire treated

6

Main Power

KW

5.5

7

Power Supply

220V, 60HZ,3 phase

8

Tolerance

mm

1.5

9

Material of cutting

Cr12Mov HRC60-62
10 Machine weight T about 2500KGS

2. Machine List

* 5Tons Manual Uncoiler
* PLC Controlling System
* Hydraulic Cutter;
* Run out table ( 2 units );
* Protective Cover;
* Tools;
* Operation Manual;

3.Work flow

Decoiler→Guide with Adjustable →Roll forming machine → Hydraulic cutting → Product Support Table

4. KR18 Profile Drawing

Lámina KR 18 medidas
Ancho efectivo: 45.7 cm (17.99”)
Ancho total: 54 cm (21.25”)
Peralte: 6.35 cm (2.5”)
Longitudes estándar: 2.44 m a 7.32 m
Longitudes especiales: 1 m a 15 m

Hidden Clips Model Calibre 24 SSR (Standing Sean Roof) Kr-18 Sheet Roll Forming Machine

5.KR-18 application

The K18 SSR-type corrugated and seamed sheet. This corrugated sheet features concealed clip fixing. It consists of a pintro profile manufactured on-site. Its main feature is its longitudinal overlaps joined using a portable seamer.

It uses 90- or 180-degree clips for fixing, which are hidden in the overlaps, eliminating the risk of potential leaks.


It is quick to install, and its fastening is concealed using clips attached to the structure and crimped along the longitudinal overlap. It has excellent drainage capacity and works excellently on low-sloped roofs.

Hidden Clips Model Calibre 24 SSR (Standing Sean Roof) Kr-18 Sheet Roll Forming Machine

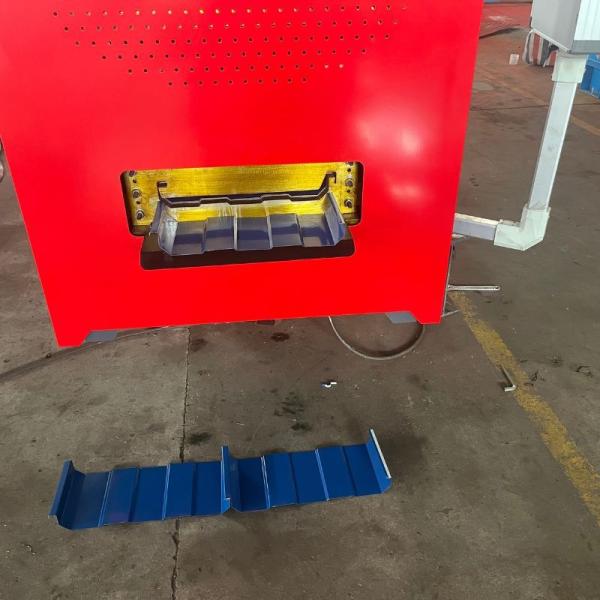

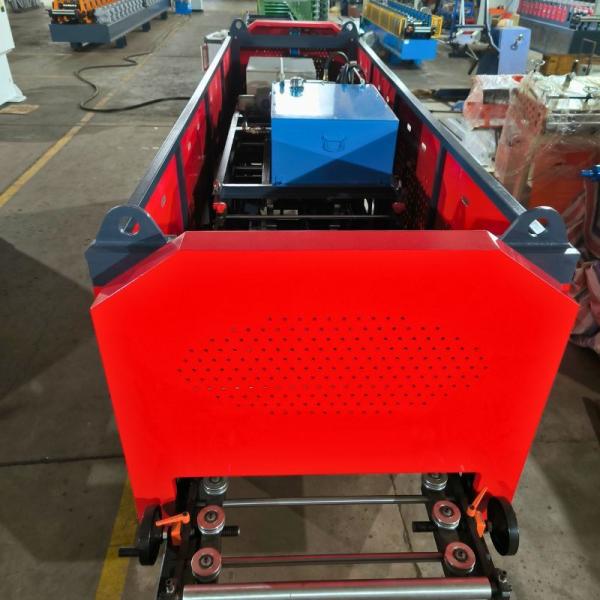

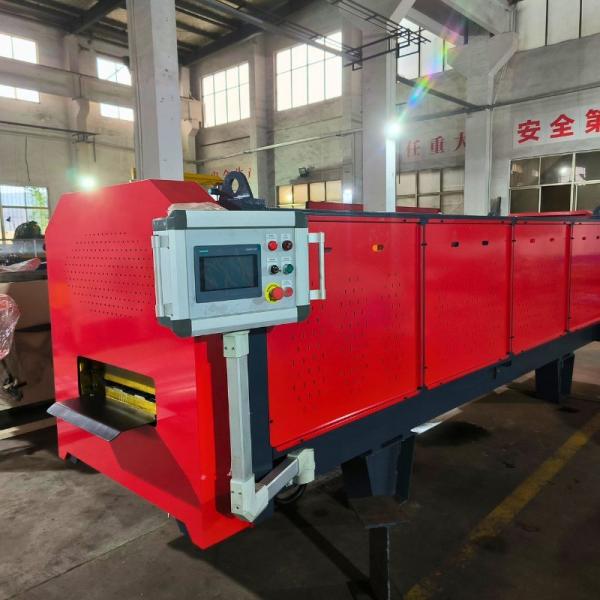

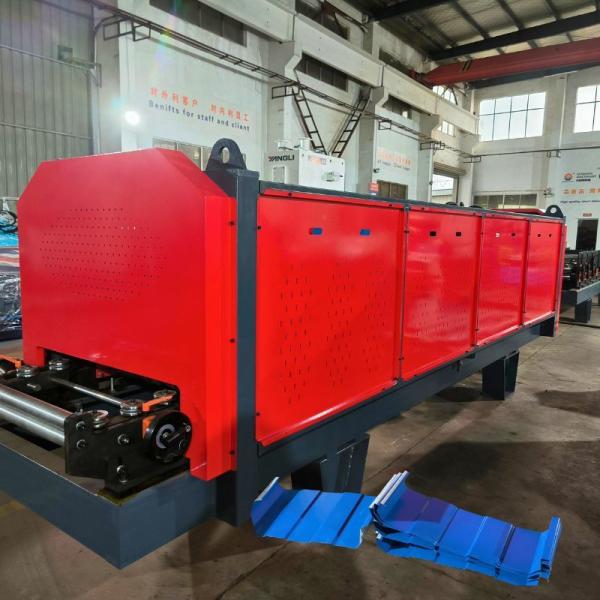

6. Machine photo

Hidden Clips Model Calibre 24 SSR (Standing Sean Roof) Kr-18 Sheet Roll Forming Machine

Hidden Clips Model Calibre 24 SSR (Standing Sean Roof) Kr-18 Sheet Roll Forming Machine
