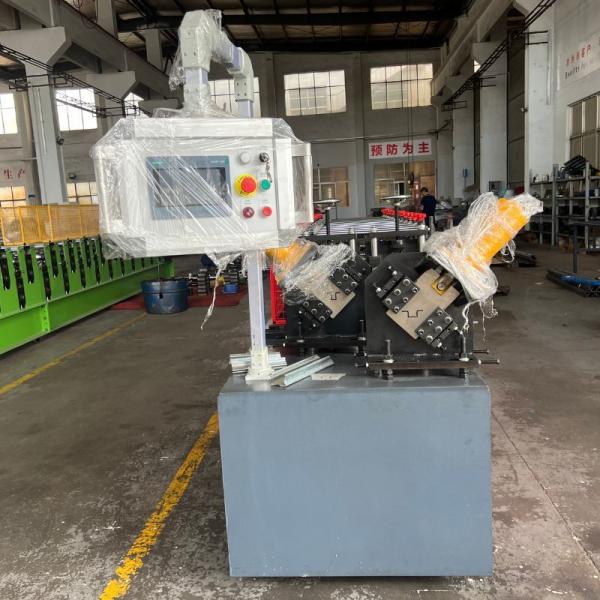

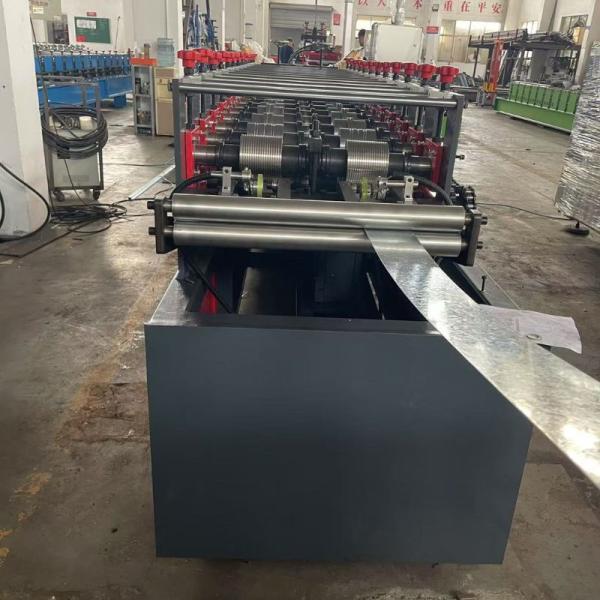

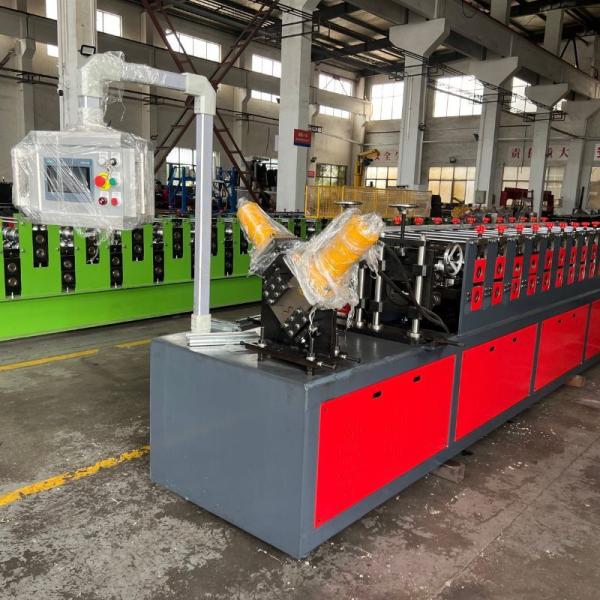

0.4-1.2mm Steel Thickness Top Hat Channel Furring Channel Profile Roll Forming Machine
0.4-1.2mm Steel Thickness Top Hat Channel Furring Channel Profile Roll Forming Machine
0.4-1.2mm Steel Thickness Top Hat Channel Furring Channel Profile Roll Forming Machine
0.4-1.2mm Steel Thickness Top Hat Channel Furring Channel Profile Roll Forming Machine
0.4-1.2mm Steel Thickness Top Hat Channel Furring Channel Profile Roll Forming Machine
0.4-1.2mm Steel Thickness Top Hat Channel Furring Channel Profile Roll Forming Machine
Specifications
Brand Name :
Sussman
Model Number :
SM-RM
Certification :
SGS, ISO9001, CE
Place of Origin :
Wuxi Jiangsu China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per month
Delivery Time :
60 days after deposit
Packaging Details :
Standard packing
Material :
0.4-1.0MM PPGI GI Zinc Galvanized
Forming speed :
8-12m/min
Forming stations :
About 12 stations / 12 stations
Weight :
4000kgs
Roller material :
Gcr15 steel with quenching
Product name :
Metal furring channel machine
Profile :
two different hat channel size
Application :
Roof ceiling, ceilling batten
Description

0.4-1.2mm Steel Thickness Top Hat Channel Furring Channel Profile Roll Forming Machine

Hat channel machine also called omega machine, furring channel machine, roof battern machine, we can design the machine as your requirement.

This line can do two different hat furring channel profiles, but produce one by one, which can not work at the same time, but save costs, space and power.

Technical parameter

Item

Technical data

Steel sheet thickness

0.4-1.2mm galvanized steel,PPGI,GI

Hydraulic power

4kw

Transmission way

1 inch chain

Capacity of Decoiler

3 Tons passive

Forming Speed

8-12m/min

Roller Groups

about 12 rollers with embossing

Roller Material

45# high grade steel, high frequency quenched HRC58-62

Roller Diameter

60mm

Principal Axis

45# high grade steel with quenching treatment

Main Motor Power

5.5 KW

Dimension

About 5.5*1.1*1.500m

Profile drawings

Furring channels are usually used in metal stud ceiling systems. They can be directly fixed with load bearing main carriers by screws, and can also be bound and fixed by iron wires or strings.

It’s convenient to install and they can be used in combination, which can satisfy different demands for ceiling systems or other home decorations.

0.4-1.2mm Steel Thickness Top Hat Channel Furring Channel Profile Roll Forming Machine

Main Components

Machine name Quantity
3T passive uncoiler 1 set
Main roll forming system 2 sets
Hydraulic stop cutting system 2 sets
4 meters out tables 1 set
PLC control box system 1 set
Toll box 1 package
Safety cover

Furring Channel Machine Advantage

1.The roller is solid and electroplated, which will not have rust

2.The material are all national standard.

3.The board is cost iron frame and all milled and polished.

4. Only need one main power wire

5. Two people to operate it

0.4-1.2mm Steel Thickness Top Hat Channel Furring Channel Profile Roll Forming Machine
