Specifications
Brand Name :
Sussman
Model Number :
SSM-CT
Certification :
CE ISO 9001
Place of Origin :
Jiangsu,Chain
MOQ :
1 set
Price :
negotation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10 set per month
Delivery Time :
75 days
Packaging Details :
Standard Packing with steel wire fixed and film coated
Material :
Galvanized steel
Roller stations :
About 18 stations
Material thickness :
1.5mm-2mm
roller speed :
0-12m/min
Way of drive :
Gear box
Main motor :
15kw
Hydraulic station :
5.5kw
Description

Malaysia 14 Gauge Galvanized Steel Automatic Adjustable Width Ladder Cable Tray Plate Roll Forming Machine

1. Ladder Cable Tray Roll Forming Machine Technical Parameter

1 Suitable to process Galvanized steel
2 Width of the plate As profile
3 Thickness of the plate 1.5-2.0mm
4 De-coiler Passive one, can load 5 tons raw material
5 Rollers for forming About 18 rollers
6 Diameter of the roller Φ75mm
7 Rolling material High Grade Steel 45#
9 Productivity About 5-6m/min
10 Cutting method Hydraulic cutting
11 Material of the cutting blade Cr12Mov
12 Hydraulic cutting power 5.5kw
13 Processing precision Within 1.50mm
14 Control system Siemems PLC control
15 Main structure of the machine 350 H steel
16 Weight About 18 T
17 Dimensions 12*0.85*1.1m
18 Voltage 220V 60Hz 3phase or according to clients' request

2.Ladder Cable Tray Machine’s Components

Item Components Name Quantity
1 5T Passive Decoiler 1 set
2 Roll Forming Machine 1 set
3 Hydraulic Station 1 set
4 PLC Control Cabinet 1 set
5 Cutting Blade 1 set
6 Out Table 1 set
7 Safety Cover 1 pc
8 Punching machine 1 set
9 Other Spare Parts 1 set

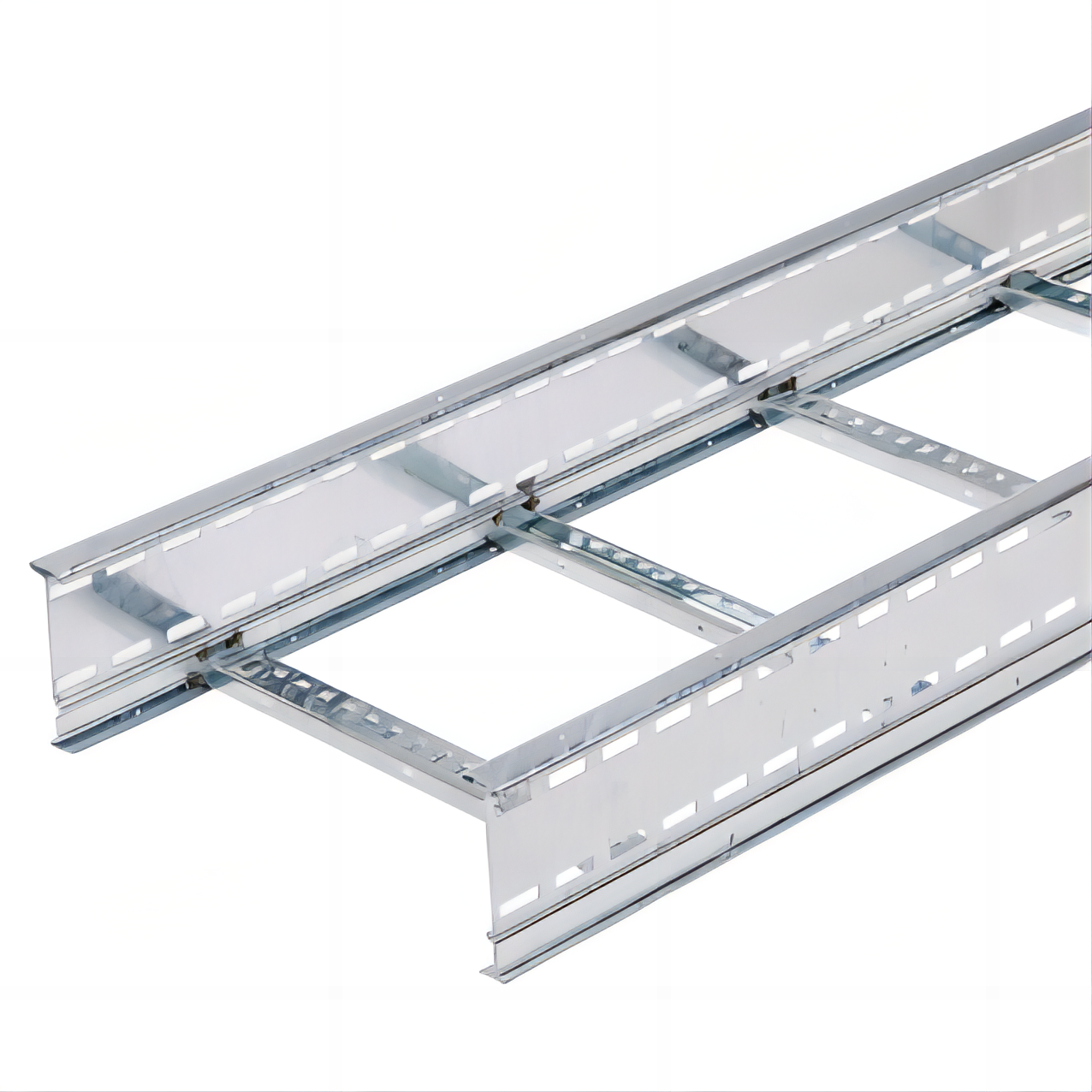

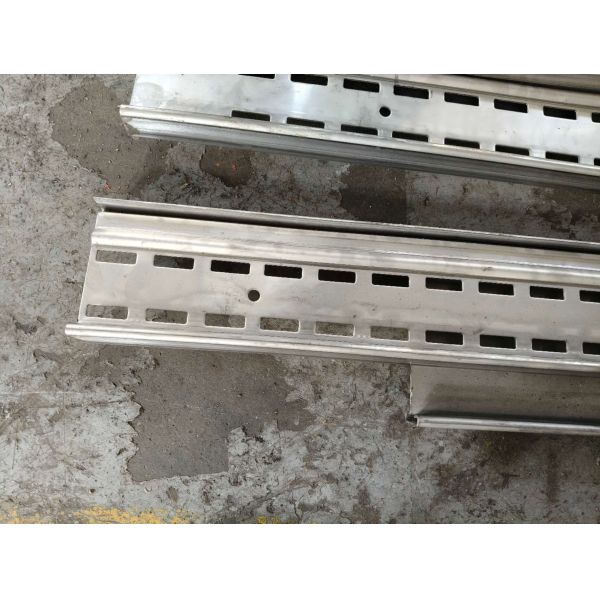

3. Ladder Cable Tray Profile

Malaysia Stainless Steel Automatic Adjustable Width Ladder Cable Tray Roll Forming Machine

Malaysia Stainless Steel Automatic Adjustable Width Ladder Cable Tray Roll Forming Machine

4.Application

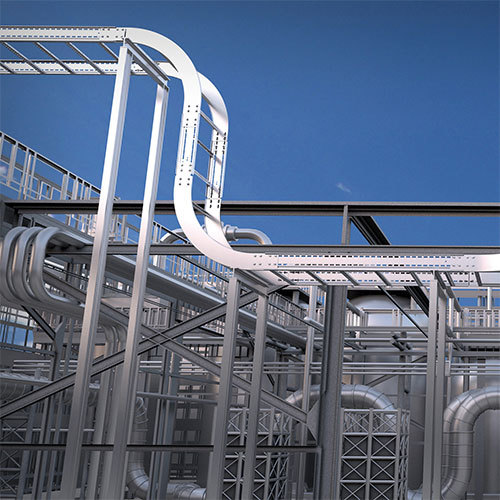

Cable tray roll forming machine is commonly used for cable management in commercial and industrial construction.

This intelligent roll former could produce different types of cable trays like: Solid bottom cable tray, Trough cable tray,

Channel cable tray, Perforated cable tray, Non perforated cable tray and Trunking cable tray etc.

with different raw materials like: hot-dip galvanized steel, pre-galvanized steel, hot-rolled and cold-rolled steel,

stainless steel and aluminum. Thickness range of material is 0.6mm-1.2mm or 1-2mm.

You could set up 10 different lengths for cable tray.Welcome to consult more details about it.
