Specifications
Brand Name :
Sussman
Model Number :
SSM-VG
Certification :
CE ISO 9001
Place of Origin :
Jiangsu,Chain
MOQ :
1 set
Price :
negotation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10 set per month
Delivery Time :
75 days
Packaging Details :
Standard Packing with steel wire fixed and film coated
Material :
Galvanized steel,color pre-painted steel
Material thickness :
0.4-0.7mm
Roller stations :
About 18 steps
Roller speed :
0-12m/min
Main motor :
11kw
Hydraulic station :
5.5kw
Way of drive :
Chain driven
Used for :
House roof building drainage system
Description

New Design Aluminum PPGI Galvanized Steel V-style Tile Ridge Capping Valley Gutter Roll Forming Machine

1.V-style Tile Ridge Capping Valley Gutter Roll Forming Machine Technical Parameter

1 Suitable to process Color steel plate,Galvanized steel
2 Width of the plate As customer need
3 Thickness of the plate 0.4-0.7mm
4 De-coiler Automatic one, can load 3 tons raw material
5 Rollers for forming 18 rollers
6 Diameter of the roller Φ75mm
7 Rolling material High Grade Steel 45#
8 Main motor power 11kw
9 Productivity About 0-12m/min(without punching time)
10 Cutting method Hydraulic cutting
11 Material of the cutting blade Cr12Mov
12 Hydraulic cutting power 5.5kw
13 Processing precision Within 1.50mm
14 Control system Delta PLC control
15 Main structure of the machine 350 H steel
16 Weight About 6 T
17 Dimensions 8.5*0.85*1.0m
18 Voltage 380V 50Hz 3phases or according to your request


2. V-style Tile Ridge Capping Valley Gutter Machine’s Components

Item Components Name Quantity
1 3T hydraulic Decoiler 1 set
2 Leveling machine with punching device 1 set
3 Roll Forming Machine 1set
4 Hydraulic Station 1set
5 PLC control cabinet 1set
6 Safety cover 1 set
7 Outable 1 pc
8 Cutting blade 1 set
9 Other spare parts 1 set

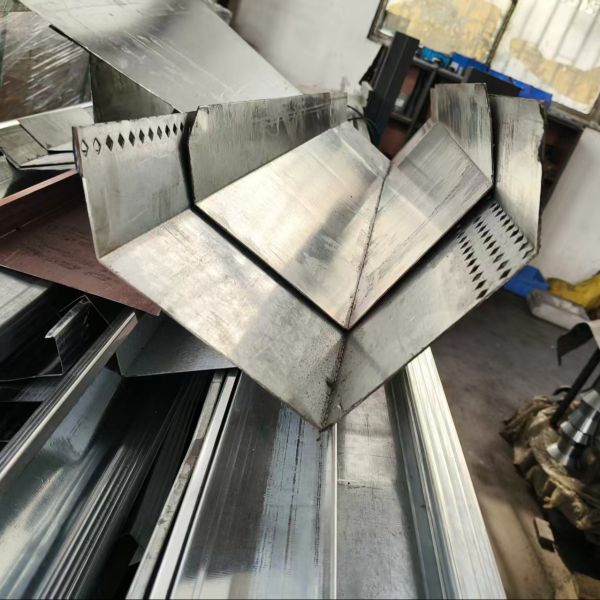

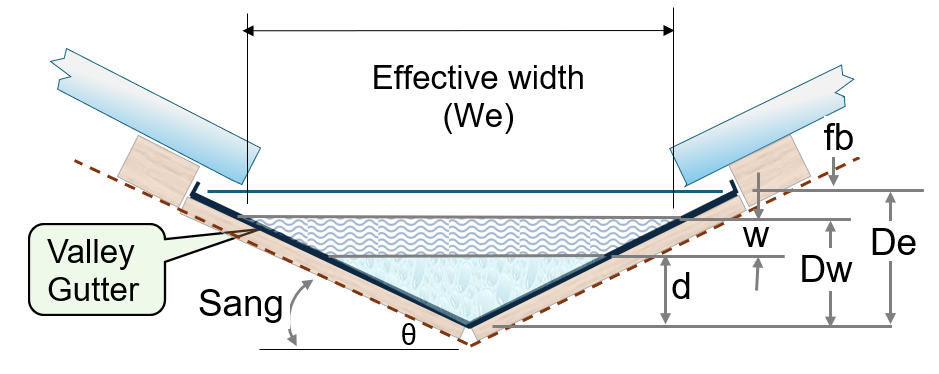

3. V-style Tile Ridge Capping Valley Gutter Profile drawing

New Design Aluminum PPGI Galvanized Steel V-style Tile Ridge Capping Valley Gutter Roll Forming Machine

New Design Aluminum PPGI Galvanized Steel V-style Tile Ridge Capping Valley Gutter Roll Forming Machine

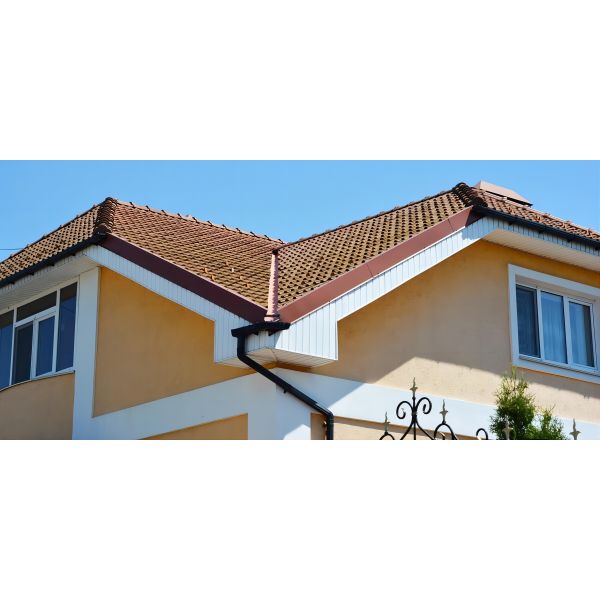

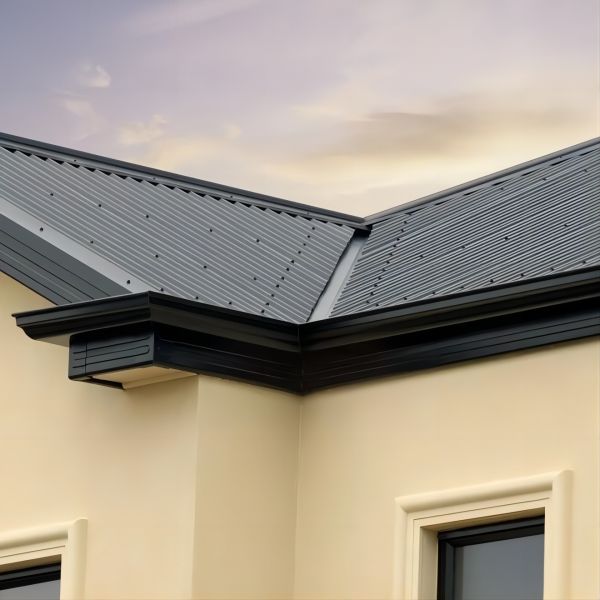

4.Application

Open Valleys:In an open valley system, a metal liner runs the entire length of the valley, exposed to the elements.

Shingles are cut back a few inches from the center line on both sides, allowing water to run freely along the smooth metal surface.

New Design Aluminum PPGI Galvanized Steel V-style Tile Ridge Capping Valley Gutter Roll Forming MachineNew Design Aluminum PPGI Galvanized Steel V-style Tile Ridge Capping Valley Gutter Roll Forming Machine
