Specifications
Brand Name :
Sussman
Model Number :
SSM-KR18
Certification :
CE ISO 9001
Place of Origin :
Jiangsu,Chain
MOQ :
1 set
Price :
negotation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10 set per month
Delivery Time :
75 days
Packaging Details :
Standard Packing with steel wire fixed and film coated
Material :
Colored steel,Galvanized steel
Roller stations :
8 stations
Roller speed :
0-12m/min
Driven system :
Petrol
Battery :
12 Volt DC*3
Way of driven :
Chain drive
Cutting type :
Hydraulic Cutting
Description

Newest Design Colored Steel Petrol-Powered Portable KR18 Standing Seam Roll Forming Machine

1. KR18 Standing Seam Roof Panel Roll Forming Machine Technical Parameter

1 Suitable to process Color steel and galvanized steel
2 Width of the plate As profile
3 Thickness of the plate 0.3-0.7mm
4 De-coiler Passive one, can load 5 tons raw material
5 Rollers for forming About 8 rollers
6 Diameter of the roller Φ75mm
7 Rolling material High Grade Steel 45#
9 Productivity About 8-12m/min
10 Cutting method Hydraulic cutting
11 Material of the cutting blade Cr12Mov
12 Hydraulic cutting power 4kw
13 Processing precision Within 1.50mm
14 Control system Siemems PLC control
15 Main structure of the machine 350 H steel
16 Weight About 2 T
17 Dimensions 4.5*0.95*1.1m
18 Energy Petrol

2.Standing Seam Roof Panel Machine’s Components

Item Components Name Quantity
1 5T Passive Decoiler 1 set
2 Roll Forming Machine 1 set
3 Hydraulic Station 1 set
4 PLC Control Cabinet 1 set
5 Cutting Blade 1 set
6 Out Table 1 set
7 Safety Cover 1 pc
8

Seamer machine

1 set
9 Other Spare Parts 1 set

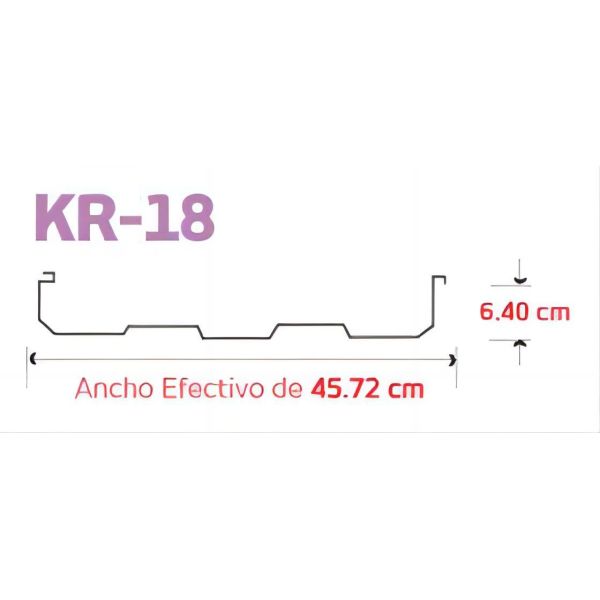

3. KR 18 Standing Seam Roof Panel Profile drawing

Newest Design Colored Steel Petrol-Powered Portable KR18 Standing Seam Roll Forming Machine

This machine can work on-site with portable device.

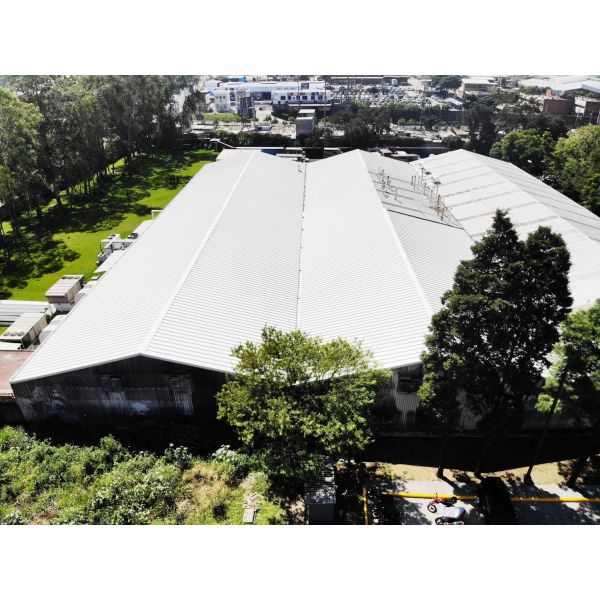

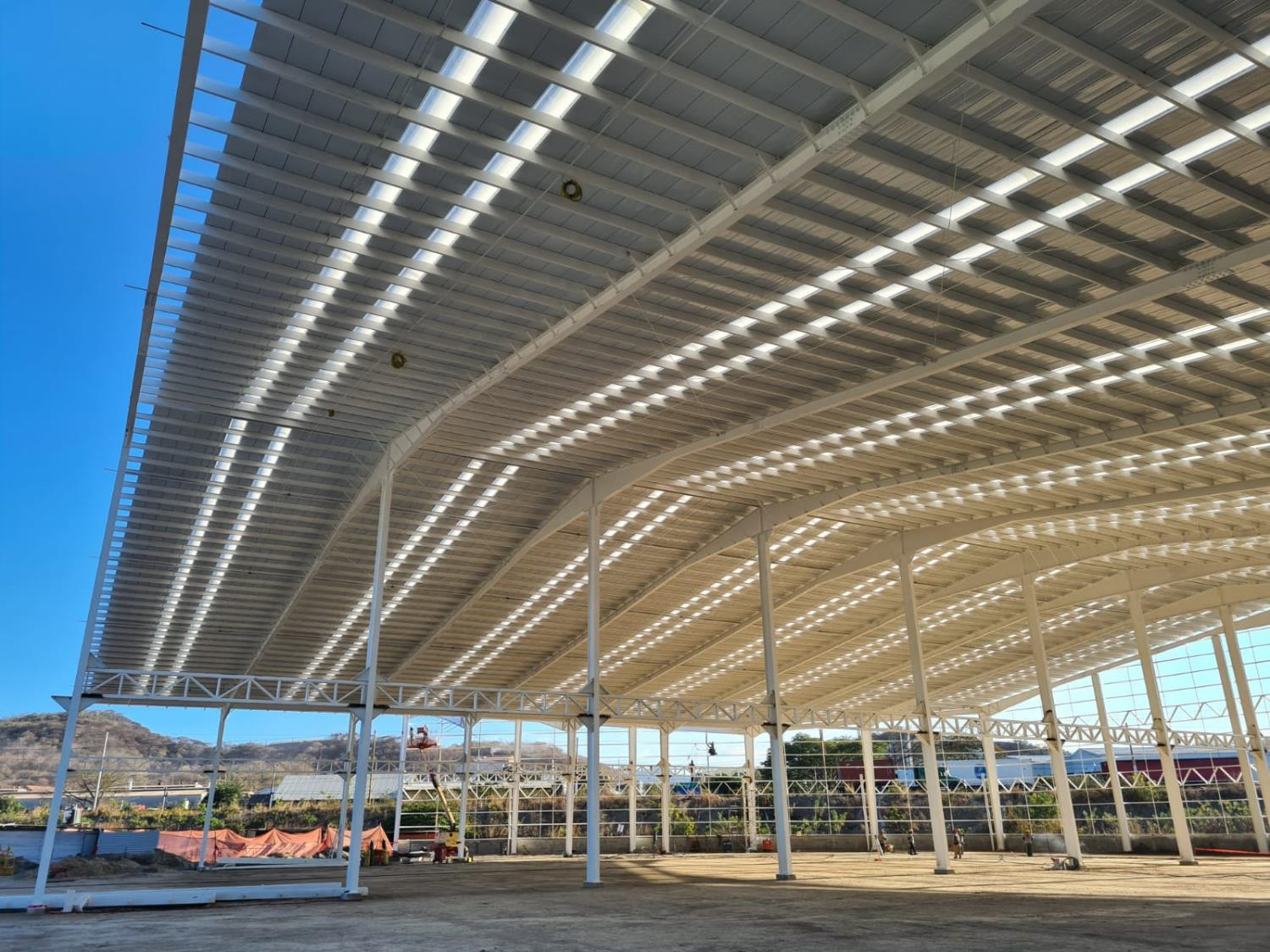

4.Application

One of the world’s most popular standing-seam roof roll-formers, KR18 is the gold standard for quality,precision,

and reliability for roofing contractors all over the globe. Fabricating trapezoidal 18-in. (460-mm) profiles,

KR18 is suitable for both residential and commercial metal roof applications.

Newest Design Colored Steel Petrol-Powered Portable KR18 Standing Seam Roll Forming Machine

Newest Design Colored Steel Petrol-Powered Portable KR18 Standing Seam Roll Forming MachineNewest Design Colored Steel Petrol-Powered Portable KR18 Standing Seam Roll Forming Machine
