Specifications
Brand Name :
Sussman
Model Number :
SSM-RRD
Certification :
CE ISO 9001
Place of Origin :
Jiangsu,Chain
MOQ :
1 set
Price :
negotation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10 set per month
Delivery Time :
75 days
Packaging Details :
Standard Packing with steel wire fixed and film coated
Tile type :
Steel Forming Machine
Voltage :
380V 50Hz 3Phases Or As Your Requirment
Weight :
5T
Use :
gutter,wall and roof
After-sales service provided :
Engineers available to service machinery overseas
Control system :
PLC(imported Brand)
Warranty :
12 months
Raw material :
Color Steel Sheet/Galvanized Coil
Color :
Customers Requirement
Thickness :
0.3-0.7mm
Usage :
rain gutter,Water Gutter for roof
Description

3 Inches Diameter Metal Steel Aluminium Round Rain Downspout Pipe Roll Forming Machine

1.Round Rain Downspout Pipe Roll Forming Machine Technical Parameter

1 Suitable to process Aluminium PPGI and galvanized steel
2 Width of the plate As customer need
3 Thickness of the plate 0.4-0.7mm
4 De-coiler Passive one, can load 5 tons raw material
5 Rollers for forming About 24 rollers
6 Diameter of the roller Φ75mm
7 Rolling material High Grade Steel 45#
8 Main motor power 7.5kw
9 Productivity About 3-5m/min
10 Cutting method Hydraulic cutting
11 Material of the cutting blade Cr12Mov
12 Hydraulic cutting power 7.5kw
13 Processing precision Within 1.50mm
14 Control system Siemems PLC control
15 Main structure of the machine 350 H steel
16 Weight About 5 T
17 Dimensions 9.5*0.9*1.2m
18 Voltage 380V 50Hz 3phases,or according to your request

2. Round Rain Downspout Pipe Machine’s Components

Item Components Name Quantity
1 3T Passive Decoiler 1 set
2 Feeding with guide 1 unit
3 Roll Forming Machine 1 set
4 Hydraulic Station 1 set
5 PLC control Cabinet 1 set
6 Straighten device 1 unit
7 Cutting blade 1 set
8 Out table 1 set
9 Downpipe elbow bending machine 1 set
10 Seaming machine 1 set
11 Safety cover 1 pc

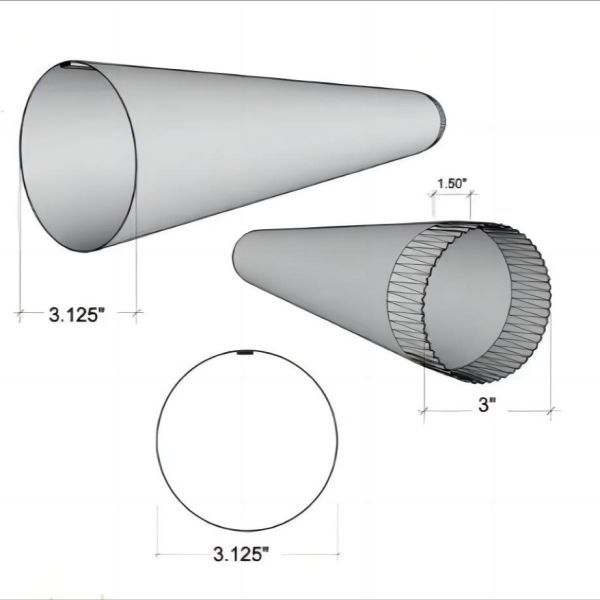

3. Round Rain Downspout Pipe Profile Drawing

3 Inches Diameter Metal Steel Aluminium Round Rain Downspout Pipe Roll Forming Machine

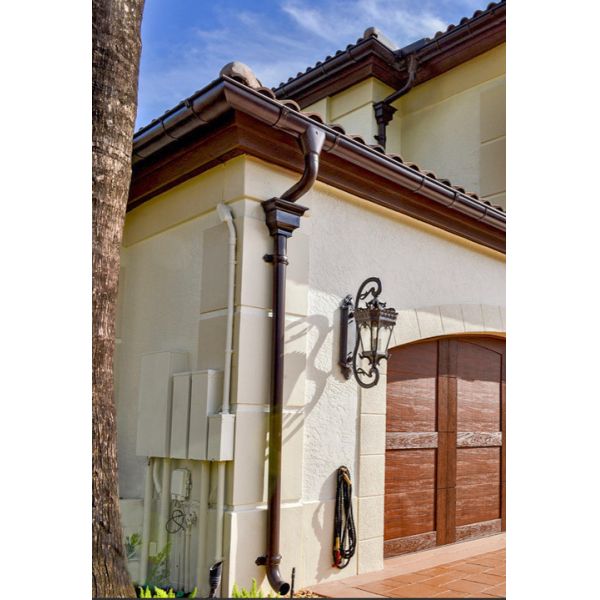

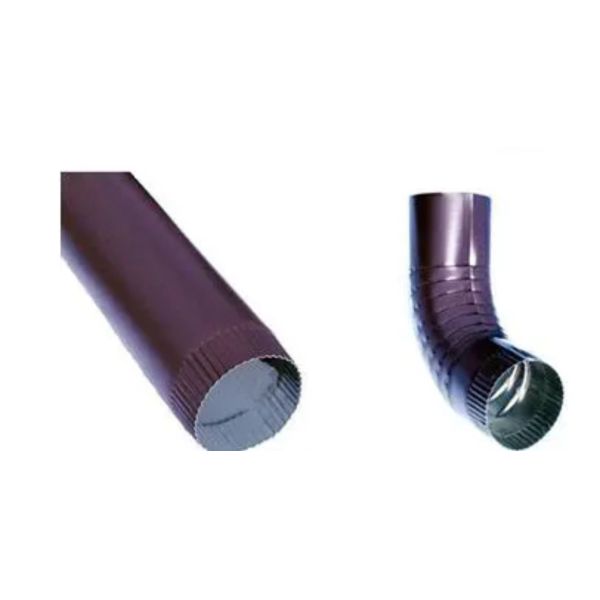

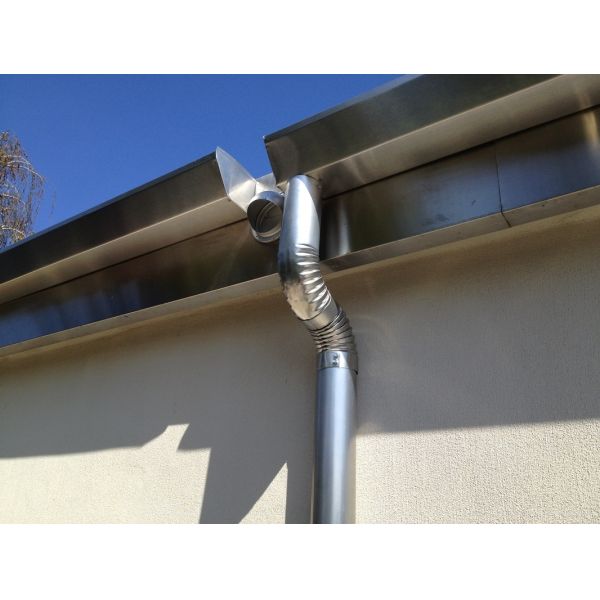

4.Application

Round downspout is a circular-section pipe used in building drainage systems to discharge rainwater from the roof.

Its core function is to quickly direct rainwater collected on the roof to the ground or underground drainage network,

preventing water accumulation that could erode the building structure.

3 Inches Diameter Metal Steel Aluminium Round Rain Downspout Pipe Roll Forming Machine

3 Inches Diameter Metal Steel Aluminium Round Rain Downspout Pipe Roll Forming Machine

3 Inches Diameter Metal Steel Aluminium Round Rain Downspout Pipe Roll Forming Machine
