Specifications
Brand Name :
Sussman
Model Number :
RF-ST
Certification :
CE, SGS, ISO
Place of Origin :
Wuxi, China
MOQ :
1 set
Price :
negotiable
Supply Ability :
5 sets/month
Delivery Time :
60 days after deposit
Packaging Details :
Film and steel
design software :
Vertex BD，Framebuilder
power(KW) :
11kw sevo motor
product capacity :
12-15m/min
Thickness :
0.8-2.0mm galvanzied steel
Size :
C89mm C152mm, C305mm
Machine weight :
3 tons
Applciation :
House Buildings, prefab house
Name :
width adjustable light steel frame machine manufacturer
Description

14 Gauge Steel Frame C89mm C152mm C305mm LSF Steel Framing Roll Forming Machine for Multi-Story Prefabricated Steel Frame Building

1.Main Specifications

Size
C89 C152 C305
Thickness
0.8-2.0mm (G300-G550Galvanzied coils and Aluzinc )
Standard producing speed
300-700m/h
Max producing speed
1500m/h
Main motor
11kw
Power supplier
380V 50Hz 3phases or according to your request
Hydraulic station
7.5kw
Hydraulic tank capacity
200L
Hydraulic cooling
Fan cooling
Hydraulic pressure
computer set
Frame and punching dies
Screw hole, chamfer, slot hole, flange cut, pipe hole, suspension, cutting
Tolerance
0.5mm
Inkjet printer
EC-JET
Machine size
9500*1000*1500mm
Weight
6000kg
Color
according to your request
De-colier
bearing 3 tonne, automatical decoiler

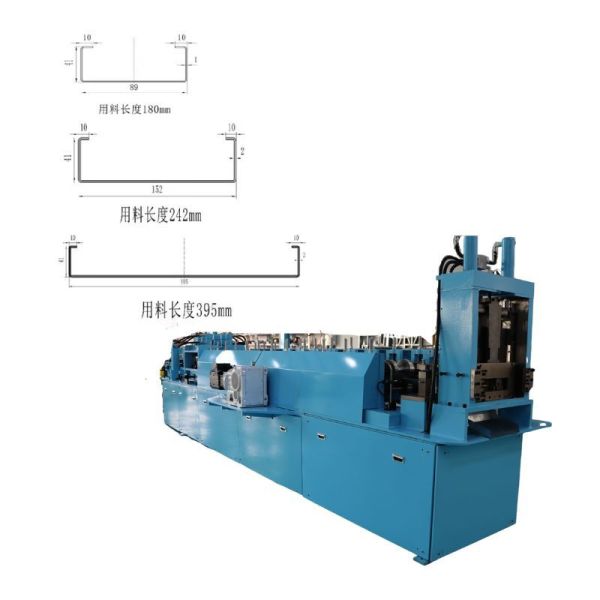

2.Profile photo

Steel framing machine (often called a light gauge steel roll forming machine) that can produce multiple steel frame sizes ranging from 89mm to 305mm(e.g. 89, 100, 150, 200, 250, 305 mm)

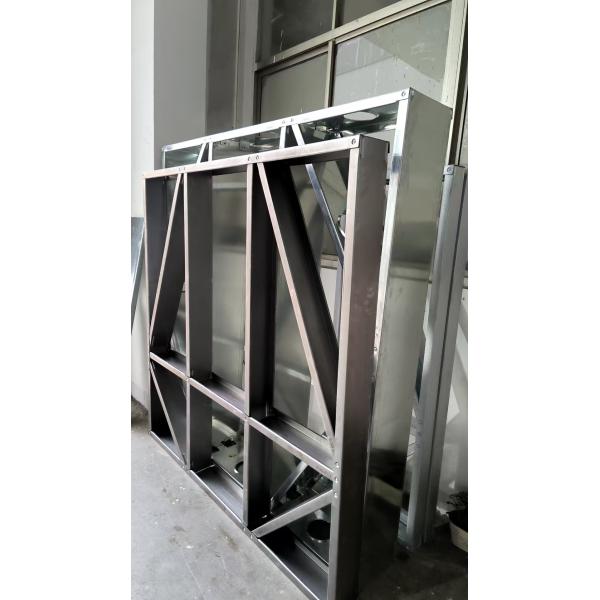

Applications: construction walls, floors and roofs for 1–5 level residential, modular house, transportable units, light commercial construction and custom building like Solar Panel Frames.

14 Gauge Steel Frame C89mm C152mm C305mm LSF Steel Framing Roll Forming Machine for Multi-Story Prefabricated Steel Frame Building

14 Gauge Steel Frame C89mm C152mm C305mm LSF Steel Framing Roll Forming Machine for Multi-Story Prefabricated Steel Frame Building

2.Machine Components & Specifications:

No.
Items
Quantity
1

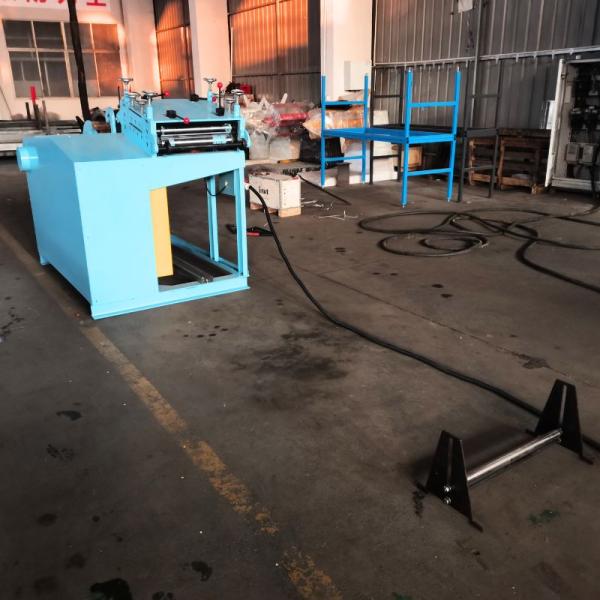

3 tons Automatic Uncoiler
1 set
2

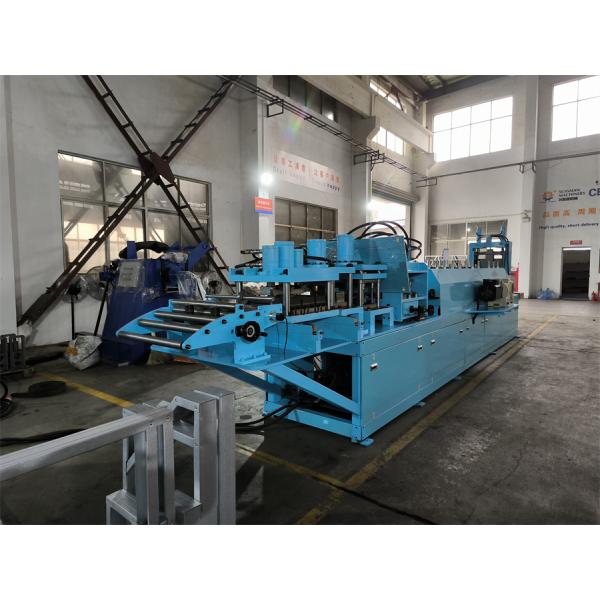

Roll Former Machine
1 set
3

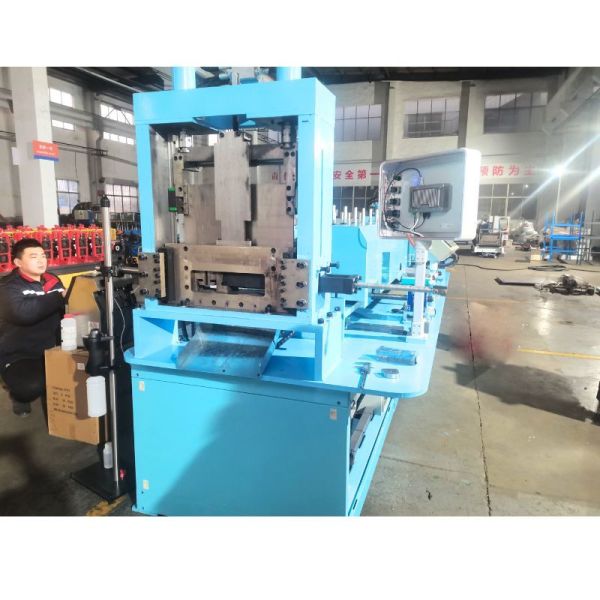

Hydraulic Punching device
 10 sets
4
Hydraulic Station
1 set
5
Vertex Software
1 set
6
Controlling System
1 set
7
Printer
1 set
8
Receiving Table
1 set
9
Tool box for free

3.Features of Multi-Size Framing Machine

Feature Description
Automatic Size Adjustment Some high-end machines offer fully automatic profile changeovers with no manual tooling required. Others are semi-automatic.
Integrated Punching Punches for service holes, web notches, lip cuts, and screw holes based on framing design.
CNC/PLC Control Operated via touchscreen or software interface; often includes integration with CAD/BIM software like Vertex, FRAMECAD, or Howick.
Material Compatibility Typically uses galvanized steel coils (G90/G60), sometimes black steel or aluminum.
Length Cutting Automated cut-to-length shearing or flying cut system based on design input.

14 Gauge Steel Frame C89mm C152mm C305mm LSF Steel Framing Roll Forming Machine for Multi-Story Prefabricated Steel Frame Building
