Europe Popular Fencing Security System Color Coated Galvanized Steel Fence Panel Roll Forming Machine
Europe Popular Fencing Security System Color Coated Galvanized Steel Fence Panel Roll Forming Machine
Europe Popular Fencing Security System Color Coated Galvanized Steel Fence Panel Roll Forming Machine
Europe Popular Fencing Security System Color Coated Galvanized Steel Fence Panel Roll Forming Machine
Europe Popular Fencing Security System Color Coated Galvanized Steel Fence Panel Roll Forming Machine
Europe Popular Fencing Security System Color Coated Galvanized Steel Fence Panel Roll Forming Machine
Europe Popular Fencing Security System Color Coated Galvanized Steel Fence Panel Roll Forming Machine
Europe Popular Fencing Security System Color Coated Galvanized Steel Fence Panel Roll Forming Machine
Europe Popular Fencing Security System Color Coated Galvanized Steel Fence Panel Roll Forming Machine
Europe Popular Fencing Security System Color Coated Galvanized Steel Fence Panel Roll Forming Machine
Specifications
Brand Name :
Sussman
Model Number :
SSM-GFP
Place of Origin :
Jiangsu China
MOQ :
1 set
Certification :
CE ISO 9001
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets per month
Delivery Time :
75 days
Packaging Details :
Standard Packing with steel wire fixed and film coated
Voltage :
220V 60Hz 3P,380V/50HZ3Phase (as customer's request)
Tile type :
Colored Steel,double layer roll forming machine,galvanized steel sheet,aluminium sheet
Use :
Roof/wall,civil buildings
After-sales service provided :
Engineers available to service machinery overseas
Weight :
8.5T
Warranty :
1 year
Color :
Client's Request
Control system :
PLC(imported Brand)
Name :
double layer roll forming machine
Material Thickness :
0.3-0.8mm
Main Motor :
7.5KW
Hydraulic station :
4KW
Description

Europe Popular Fencing Security System Color Coated Galvanized Steel Fence Panel Roll Forming Machine

1.Fence panel machine

1 Suitable to process Color steel plate,Galvanized steel
2 Width of the plate As customer need
3 Thickness of the plate 0.3-0.8mm
4 De-coiler Automatic one, can load 3 tons raw material
5 Rollers for forming Uplevel18 rollers Downlevel 18 Rollers
6 Diameter of the roller Φ75mm
7 Rolling material High Grade Steel 45#
8 Main motor power 7.5kw
9 Productivity About 8-10m/min
10 Cutting method Hydraulic cutting
11 Material of the cutting blade Cr12Mov
12 Hydraulic cutting power 4kw
13 Processing precision Within 1.00mm
14 Control system PLC control
15 Main structure of the machine 350 H steel
16 Weight About 8.5 T
17 Dimensions 7.5*1.2*1.3m
18 Voltage 380V 50Hz 3phases


2. Fence Panel Machine’s Components

Item Components Name Quantity
1 3T hydraulic Decoiler 1 set
2 Leveling machine 1 set
3 Roll Forming Machine 1 set
4 Hydraulic Station 1 set
5 PLC control cabinet 1 set
6 Cutting blade 1 set
7 Safety cover 1 set
8 Outable 1 pc

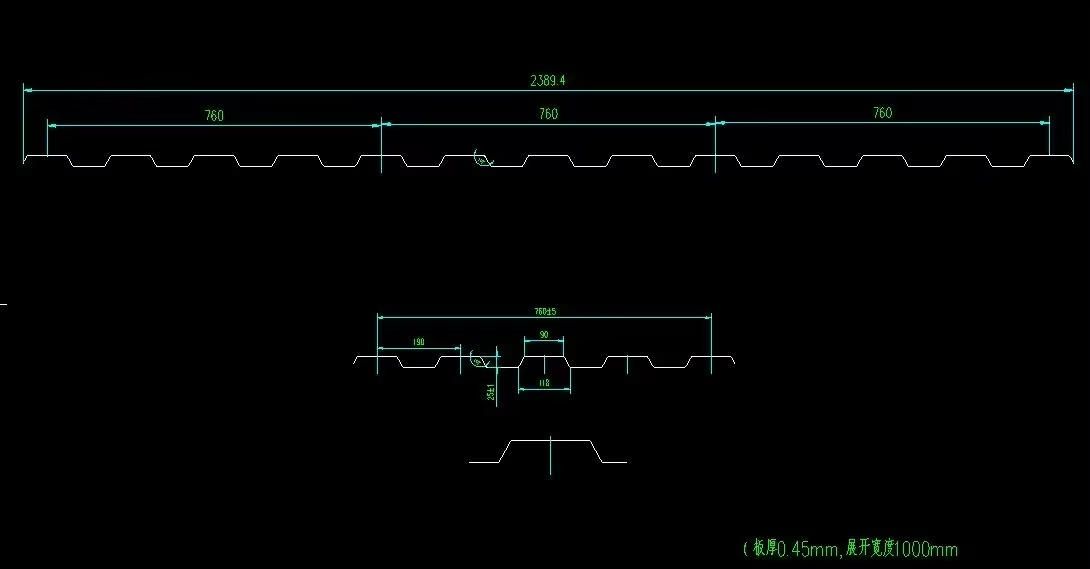

3. Fence Panel Profile drawing

Europe Popular Fencing Security System Color Coated Galvanized Steel Fence Panel Roll Forming Machine

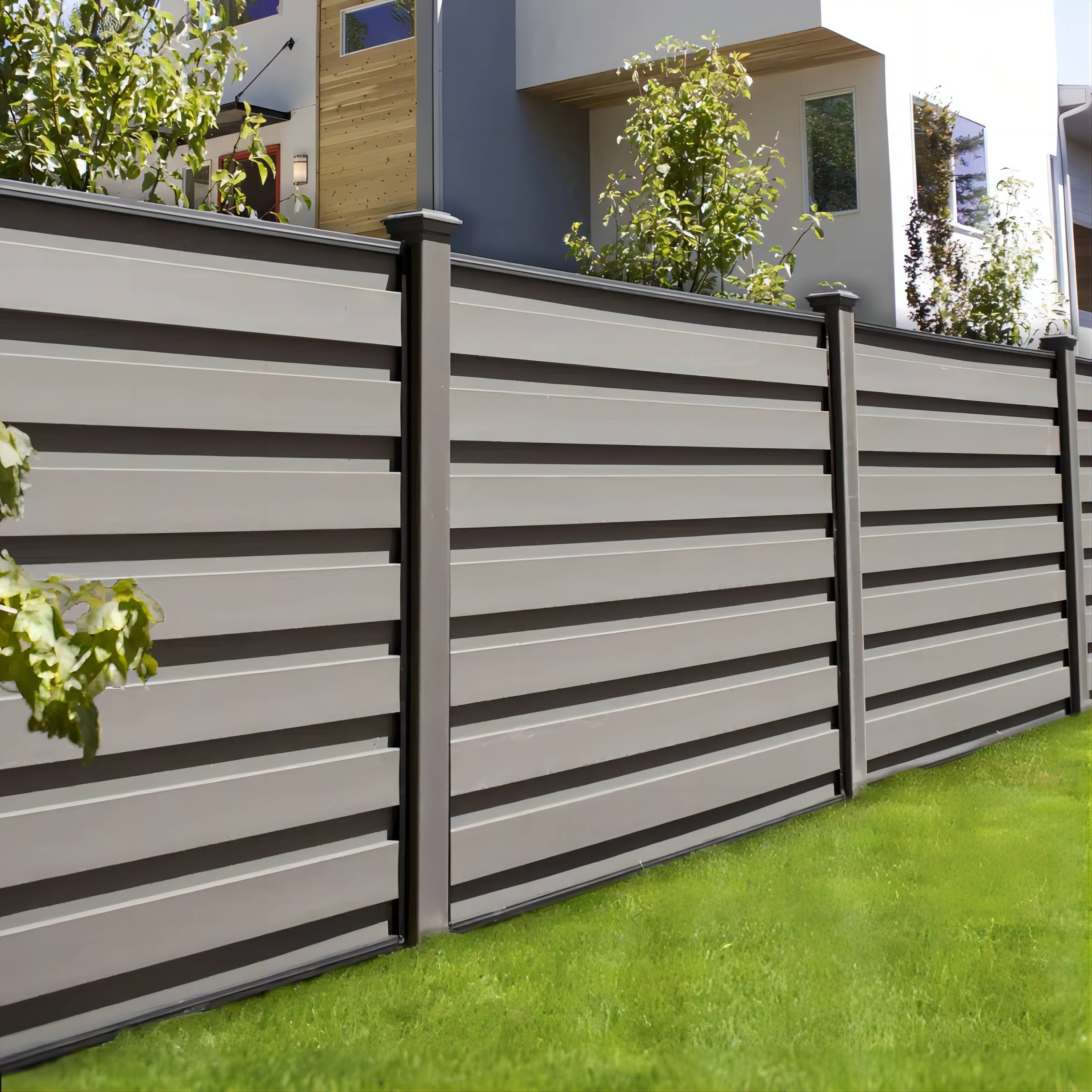

4.Application
The core value of iron fences lies in the combination of "safety protection + durability + flexibility," while also balancing
aesthetics and environmental friendliness. Therefore, they have become a classic choice for protection and isolation in
residential, commercial, industrial, and municipal fields.
Europe Popular Fencing Security System Color Coated Galvanized Steel Fence Panel Roll Forming Machine

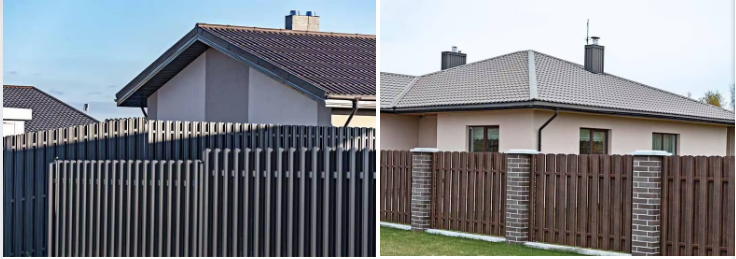

Other type fence:Picket fences are an ideal alternative to wooden fence boards because they are durable and long-lasting.

They do not require annual protection, they are made of high-quality galvanized steel, coated on both sides with a layer of polyester.

Europe Popular Fencing Security System Color Coated Galvanized Steel Fence Panel Roll Forming Machine
