1.5-3.5mm Thickness Cee Zee Purlin Metal Frame Roll Forming Machine Multiple Sizes Adjustable
1.5-3.5mm Thickness Cee Zee Purlin Metal Frame Roll Forming Machine Multiple Sizes Adjustable
1.5-3.5mm Thickness Cee Zee Purlin Metal Frame Roll Forming Machine Multiple Sizes Adjustable
1.5-3.5mm Thickness Cee Zee Purlin Metal Frame Roll Forming Machine Multiple Sizes Adjustable
1.5-3.5mm Thickness Cee Zee Purlin Metal Frame Roll Forming Machine Multiple Sizes Adjustable
1.5-3.5mm Thickness Cee Zee Purlin Metal Frame Roll Forming Machine Multiple Sizes Adjustable
1.5-3.5mm Thickness Cee Zee Purlin Metal Frame Roll Forming Machine Multiple Sizes Adjustable
1.5-3.5mm Thickness Cee Zee Purlin Metal Frame Roll Forming Machine Multiple Sizes Adjustable
Specifications
Model Number :
CZ
MOQ :
1 set
Delivery Time :
75 days
Main motor :
18.5kw
Payment Terms :
T/T,L/C
Thickness :
2.0-3.5mm
Roller material :
Cr15 to be quenched
Roller stations :
22 stations
Certification :
CE; ISO9001
Price :
negotiate
Forming Speed :
12-15m/min
Supply Ability :
10 sets per month
Material :
PI; PPGI
Place of Origin :
China
Packaging Details :
Naked packing
Brand Name :
Sussman
Description

1.5-3.5mm Thickness Cee Zee Purlin Metal Frame Roll Forming Machine Multiple Sizes Adjustable

Purlin is widely using in industry building. The machine can forms different size through change some rollers position. And also can punch and cut automatically as setting.

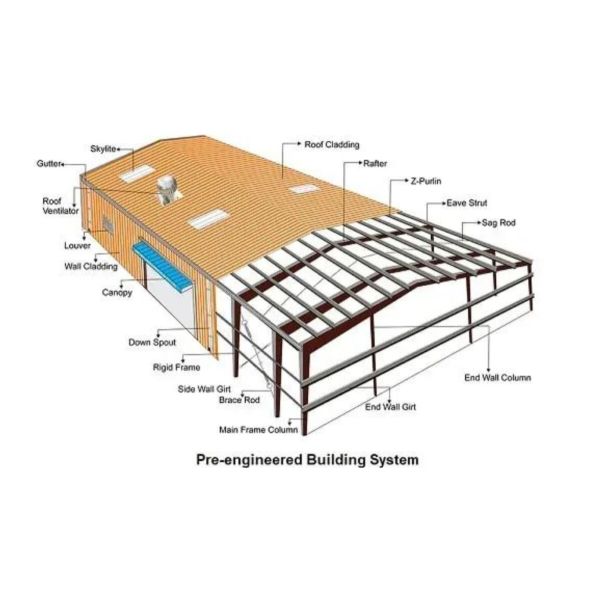

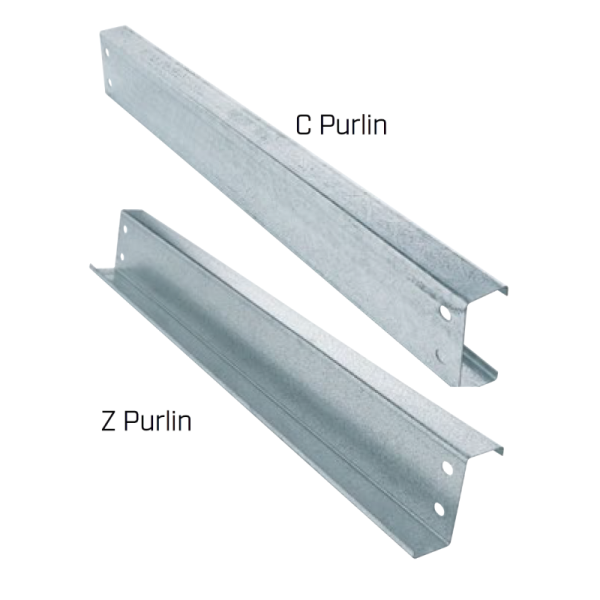

C & Z Purlins are horizontal beams or bars used for structural support in buildings. Sussman Machinery purlin roll forming machine can produce different size purlins. CZ purlin roll forming machine are also called interchangeable purlin roll forming machine. In steel construction, the term purlin typically refers to roof framing members that span parallel to the building eave abd suppor the roof decking or sheeting.


Applications of C&Z purlin include:

1. Industrial construction
2. Hall and warehouse construction
3. Extension construction and renovation
4. Agricultural projects

Technicial Speciafication

Material PI; PPGI
Thickness 1.5-3.5 mm
Forming Speed 15m/min
Roller stations 22 stations
Roller material Gcr15 to be quenched
Main motor 18.5kw
Hydraulic cutting power 5.5kw
Control system PLC
Dimension 10.3×1.5×1.2m
Driving system Gearbox Drive
Tolerance ±1.5mm

Working Flow

Decoiler---Leveling Device----Hydraulic Pre-cutting& Hydraulic Punching---Roll Forming---Output Table

1.5-3.5mm Thickness Cee Zee Purlin Metal Frame Roll Forming Machine Multiple Sizes Adjustable

Machine List

5 Ton Hydraulic Decoiler 1 set
Leveling Device 1 set
Hydraulic Pre-Cutting 1 unit
Hydraulic Punching 1 set
Punching Die 2 sets
Main Roll Forming Machine 1 set
Hydraulic Station 1 unit
Control Box 1 set
6 Meters output table 1 unit
Spare Part 1 Package
Safety Cover 1 set
Gearbox Drive 1 set

Profiles

C PURLIN SIZES

Width: C80-300

Thickness: 1.5-3.5mm

Height: 40-100mm

1.5-3.5mm Thickness Cee Zee Purlin Metal Frame Roll Forming Machine Multiple Sizes Adjustable

Pictures of the product:

1.5-3.5mm Thickness Cee Zee Purlin Metal Frame Roll Forming Machine Multiple Sizes Adjustable

1.5-3.5mm Thickness Cee Zee Purlin Metal Frame Roll Forming Machine Multiple Sizes Adjustable

1.5-3.5mm Thickness Cee Zee Purlin Metal Frame Roll Forming Machine Multiple Sizes Adjustable

1.5-3.5mm Thickness Cee Zee Purlin Metal Frame Roll Forming Machine Multiple Sizes Adjustable
