0.8-1.2mm Thickness G550 Material Light Steel Framing Machine C70 C90 2 In 1 Machine
0.8-1.2mm Thickness G550 Material Light Steel Framing Machine C70 C90 2 In 1 Machine
0.8-1.2mm Thickness G550 Material Light Steel Framing Machine C70 C90 2 In 1 Machine
0.8-1.2mm Thickness G550 Material Light Steel Framing Machine C70 C90 2 In 1 Machine
0.8-1.2mm Thickness G550 Material Light Steel Framing Machine C70 C90 2 In 1 Machine
0.8-1.2mm Thickness G550 Material Light Steel Framing Machine C70 C90 2 In 1 Machine
0.8-1.2mm Thickness G550 Material Light Steel Framing Machine C70 C90 2 In 1 Machine
0.8-1.2mm Thickness G550 Material Light Steel Framing Machine C70 C90 2 In 1 Machine
0.8-1.2mm Thickness G550 Material Light Steel Framing Machine C70 C90 2 In 1 Machine
0.8-1.2mm Thickness G550 Material Light Steel Framing Machine C70 C90 2 In 1 Machine
Specifications
Model Number :
RF-ST
MOQ :
1 set
Packaging Details :
Film and steel
Supply Ability :
5 sets/month
Motor Power :
7.5 KW Servo Motor
Certification :
CE, SGS, ISO
Brand Name :
Sussman
Price :
negotiable
Material :
0.8-1.2mm
Delivery Time :
75 working days after deposit
Working Speed :
12-15 meters /minute
Place of Origin :
Wuxi, China
Type :
C70 C90 light steel framing machine
Description

0.8-1.2mm Thickness G550 Material Light Steel Framing Machine C70 C90 2 In 1 Machine

Light steel framing machines use roll-formed steel to create metal frames and floor joists. The process involves feeding steel coils into the machine, which then shapes and cuts the steel into the desired sizes and profiles. These machines can produce frames and joists in multiple sizes, making them suitable for a wide range of construction projects.

This machine is made for our Australian customer, 0.8-1.2mm thickness, C70 C90 in one machine.

Main Specifications

Size 70*41mm,90*41mm
Thickness 0.75-1.2mm(G300-G550Galvanzied coils and Aluzinc )
Standard Producing speed 300-700m/h
Max producing speed 1500m/h
Main motor 7.5KW Servo motor
Power supplier 415V 50Hz 3phases according to your request
Hydraulic station 7.5kw Motor
Hydraulic tank capacity 100L
Hydraulic cooling Fan cooling with Accumulator
Hydraulic pressure Manually set
Host cordless remote control Standard
Frame and punching dies Service Hole, Web Notch, End Truss, Lip Cut, Bolt Hole, Dimple Hole, Swage, Cutting
Product accuracy+- 0.5mm
CNC inkjet-printer HP inkjet printer
Size 5000*950*1200mm
Weight 4500kg
Color According to your request
De-colier 2 Tons electric decoiler with leveling device

Our machine photo

0.8-1.2mm Thickness G550 Material Light Steel Framing Machine C70 C90 2 In 1 Machine

0.8-1.2mm Thickness G550 Material Light Steel Framing Machine C70 C90 2 In 1 Machine

0.8-1.2mm Thickness G550 Material Light Steel Framing Machine C70 C90 2 In 1 Machine

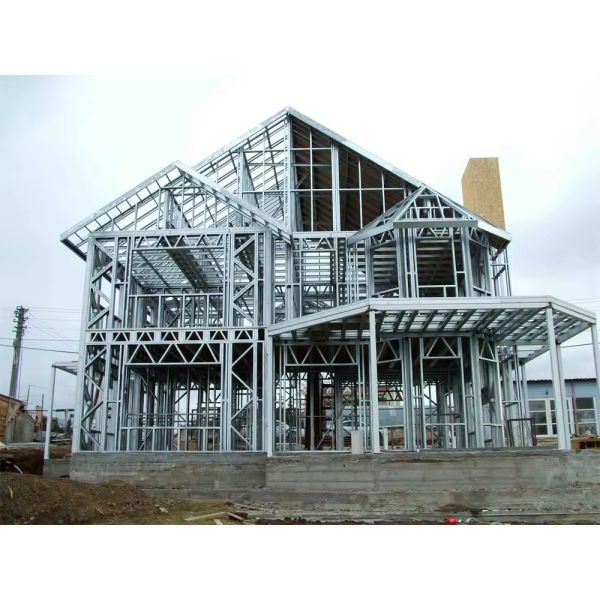

Application:

0.8-1.2mm Thickness G550 Material Light Steel Framing Machine C70 C90 2 In 1 Machine

0.8-1.2mm Thickness G550 Material Light Steel Framing Machine C70 C90 2 In 1 Machine

0.8-1.2mm Thickness G550 Material Light Steel Framing Machine C70 C90 2 In 1 Machine

Softwares:

0.8-1.2mm Thickness G550 Material Light Steel Framing Machine C70 C90 2 In 1 Machine

0.8-1.2mm Thickness G550 Material Light Steel Framing Machine C70 C90 2 In 1 Machine

0.8-1.2mm Thickness G550 Material Light Steel Framing Machine C70 C90 2 In 1 Machine
