Specifications
Brand Name :
Sussman Machinery
Model Number :
SSM-OH
Certification :
CE ISO 9001
Place of Origin :
Jiangsu,Chain
MOQ :
1 set
Price :
negotation
Payment Terms :
T/T,L/C,D/A,D/P,Western Union
Supply Ability :
10 set per month
Delivery Time :
95 days
Packaging Details :
Standard Packing with steel wire fixed and film coated
Material :
Zinc Copper Galvanized Steel
Material thickness :
0.8-1.2mm
Forming station :
About 12 stations
Speed :
0-12m/min
Driven system :
Chain driven
Main motor :
5.5kw
Hydraulic station :
4kw
Description

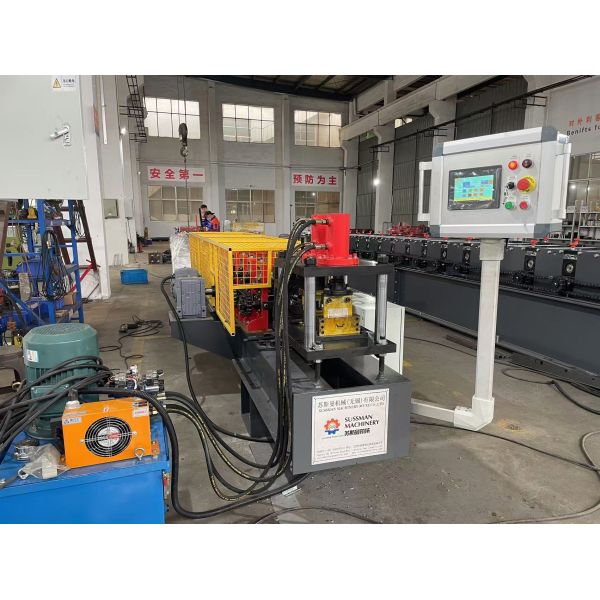

0.8-1.2mm Zinc Copper Galvanized Steel Electrical Cabinet Cable Tray Omega&Hat Din Rail Roll Forming Machine


0.8-1.2mm Zinc Copper Galvanized Steel Omega&Hat Din Rail Roll Forming Machine For Electrical Cabinet Cable Tray


1.Omega&Hat Din Rail Roll Forming Machine Technical Parameter


1 Suitable to process Zinc Copper Galvanized Steel
2 Width of the plate As customer need
3 Thickness of the plate 0.8-1.2 mm
4 De-coiler 3 tons passive decoiler
5 Rollers for forming About 12 stations
6 Diameter of the roller Φ60mm
7 Rolling material High Grade Steel 45#
8 Main motor power 5.5KW
9 Productivity About 0-12m/min
10 Cutting method Stop to cutting
11 Material of the cutting blade Cr12Mov
12 Hydraulic cutting power 4kw
13 Processing precision Within 1.50mm
14 Control system PLC control
15 Main structure of the machine 350 H steel
16 Weight About 2.5T
17 Dimensions 4.5*0.85*1.0m
18 Voltage 220V 60Hz 3phases,or according to your request


2.Machine List:


S.N
Equipment name
Quantity
1
3 ton passive de-coiler
1 set
2
Main roll forming machine
1 set
3
Hydraulic punching and cutting
1 set
4
PLC Control box
1 unit
5
Hydraulic station
1 unit
6
Passive out table
1 set
7
Safety cover
1 set
8
Spare parts
1 Package

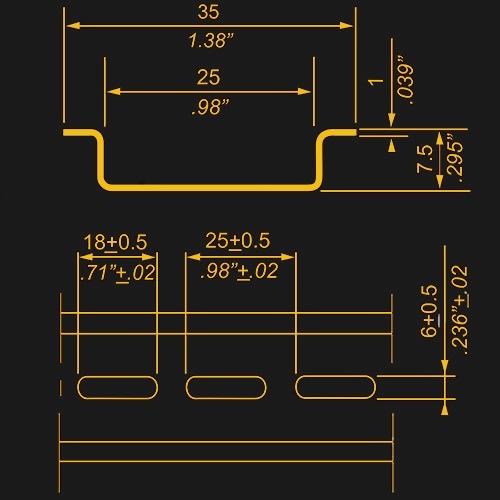

3.Omega&Hat Din Rail Profile Samples


0.8-1.2mm Zinc Copper Galvanized Steel Omega&Hat Din Rail Roll Forming Machine For Electrical Cabinet Cable Tray

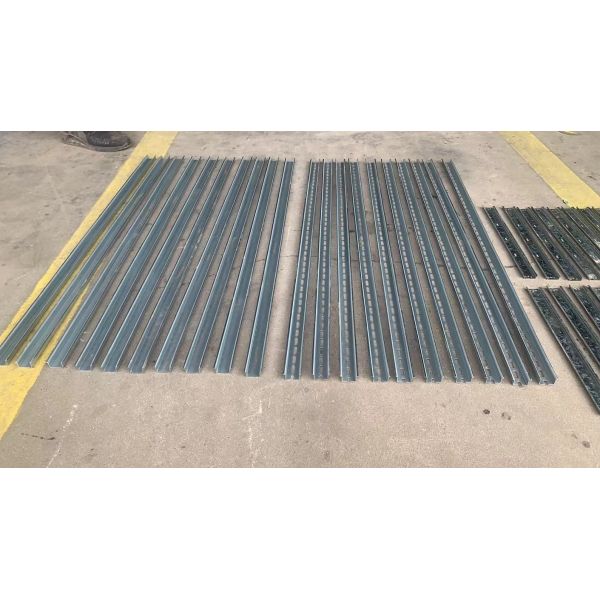

Samples:

0.8-1.2mm Zinc Copper Galvanized Steel Omega&Hat Din Rail Roll Forming Machine For Electrical Cabinet Cable Tray

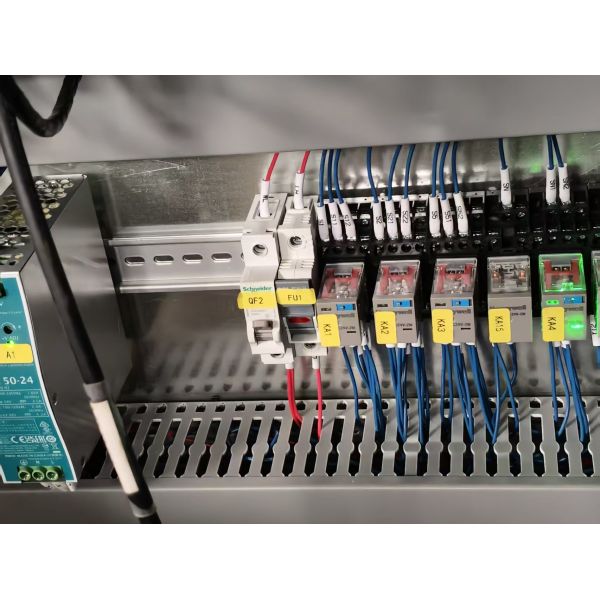

4.Application:


0.8-1.2mm Zinc Copper Galvanized Steel Omega&Hat Din Rail Roll Forming Machine For Electrical Cabinet Cable Tray

We can make different profiles in one machine, please feel free to contact us to get more details about it !
