2.0-3.5mm Galvanized Steel 100-500mm Width Adjustable CZ Purlin Roll Forming Machine With Auto Stacker For Building Structure
2.0-3.5mm Galvanized Steel 100-500mm Width Adjustable CZ Purlin Roll Forming Machine With Auto Stacker For Building Structure
2.0-3.5mm Galvanized Steel 100-500mm Width Adjustable CZ Purlin Roll Forming Machine With Auto Stacker For Building Structure
2.0-3.5mm Galvanized Steel 100-500mm Width Adjustable CZ Purlin Roll Forming Machine With Auto Stacker For Building Structure
2.0-3.5mm Galvanized Steel 100-500mm Width Adjustable CZ Purlin Roll Forming Machine With Auto Stacker For Building Structure
2.0-3.5mm Galvanized Steel 100-500mm Width Adjustable CZ Purlin Roll Forming Machine With Auto Stacker For Building Structure
2.0-3.5mm Galvanized Steel 100-500mm Width Adjustable CZ Purlin Roll Forming Machine With Auto Stacker For Building Structure
2.0-3.5mm Galvanized Steel 100-500mm Width Adjustable CZ Purlin Roll Forming Machine With Auto Stacker For Building Structure
2.0-3.5mm Galvanized Steel 100-500mm Width Adjustable CZ Purlin Roll Forming Machine With Auto Stacker For Building Structure
2.0-3.5mm Galvanized Steel 100-500mm Width Adjustable CZ Purlin Roll Forming Machine With Auto Stacker For Building Structure
2.0-3.5mm Galvanized Steel 100-500mm Width Adjustable CZ Purlin Roll Forming Machine With Auto Stacker For Building Structure
2.0-3.5mm Galvanized Steel 100-500mm Width Adjustable CZ Purlin Roll Forming Machine With Auto Stacker For Building Structure
Specifications
Brand Name :
Sussman Machinery
Model Number :
SSM-CZ100-500
Certification :
CE ISO 9001
Place of Origin :
Jiangsu,Chain
MOQ :
1 set
Price :
negotation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
10 set per month
Delivery Time :
95 days
Packaging Details :
Standard Packing with steel wire fixed and film coated
Usage :
Building
Material thickness :
2.0-3.5mm
Tile type :
Carbon steel,Galvanized plate
Weight :
About 20T
Production capacity :
0-12 meters per minute
Voltage :
customize
Control system :
PLC(imported Brand)
Roller material :
GCR15 with quenching
Cutting blade material :
cr12 with quenched treatment
Color :
Client's Request
Warranty :
1 Year
Description

2.0-3.0mm Galvanized Steel CZ100-500mm Width Adjustable CZ Purlin Roll Forming Machine With Auto Stacker

2.0-3.5mm Galvanized Steel 100-500mm Width Adjustable CZ Purlin Roll Forming Machine With Auto Stacker For Building Structure

1.CZ100-500mm width adjustable CZ Purlin Roll Forming Machine Technical Parameter

1 Suitable to process Galvanized steel,Carbon steel
2 Width of the plate As customer need
3 Thickness of the plate 2.0-3.5 mm
4 De-coiler 5 tons hydraulic decoiler
5 Rollers for forming About 24 rollers
6 Diameter of the roller Φ75mm
7 Rolling material High Grade Steel 45#
8 Main motor power 22KW
9 Productivity About 0-12m/min
10 Cutting method Stop to cutting
11 Material of the cutting blade Cr12Mov
12 Hydraulic cutting power 7.5kw
13 Processing precision +/-1.50mm
14 Control system PLC control
15 Main structure of the machine 350 H steel
16 Weight About 20 T
17 Voltage 220V 60Hz 3phases,or according to your request

2. CZ100-500mm Purlin Machine’s Components

Item Components Name Quantity
1 5 tons hydraulic decoiler 1 set
2 Pre-punching dies About 3 sets
3 Pre-cutting device 1 set

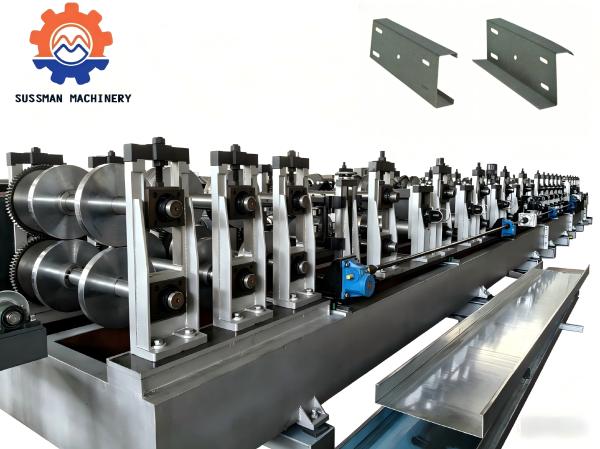

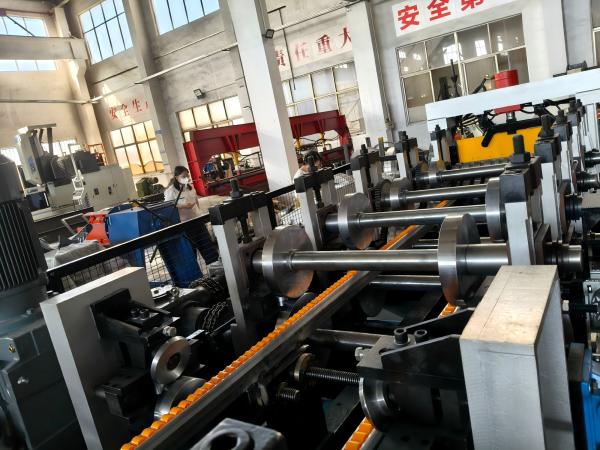

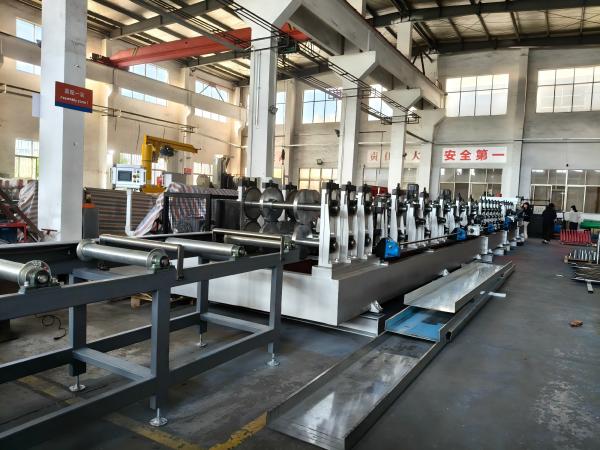

4 Main roll forming machine 1 set
5 Hydraulic station 1 set
6 PLC control box 1 set

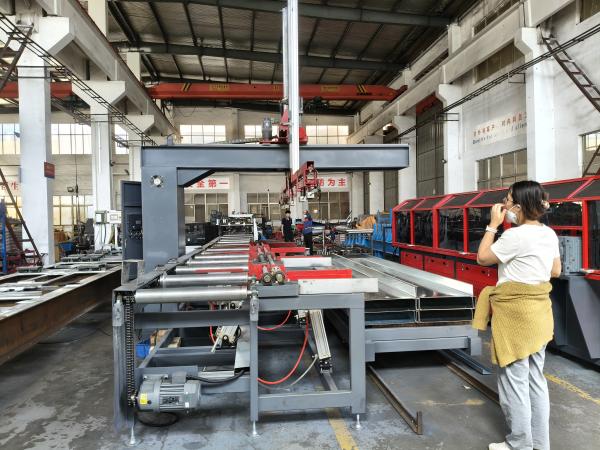

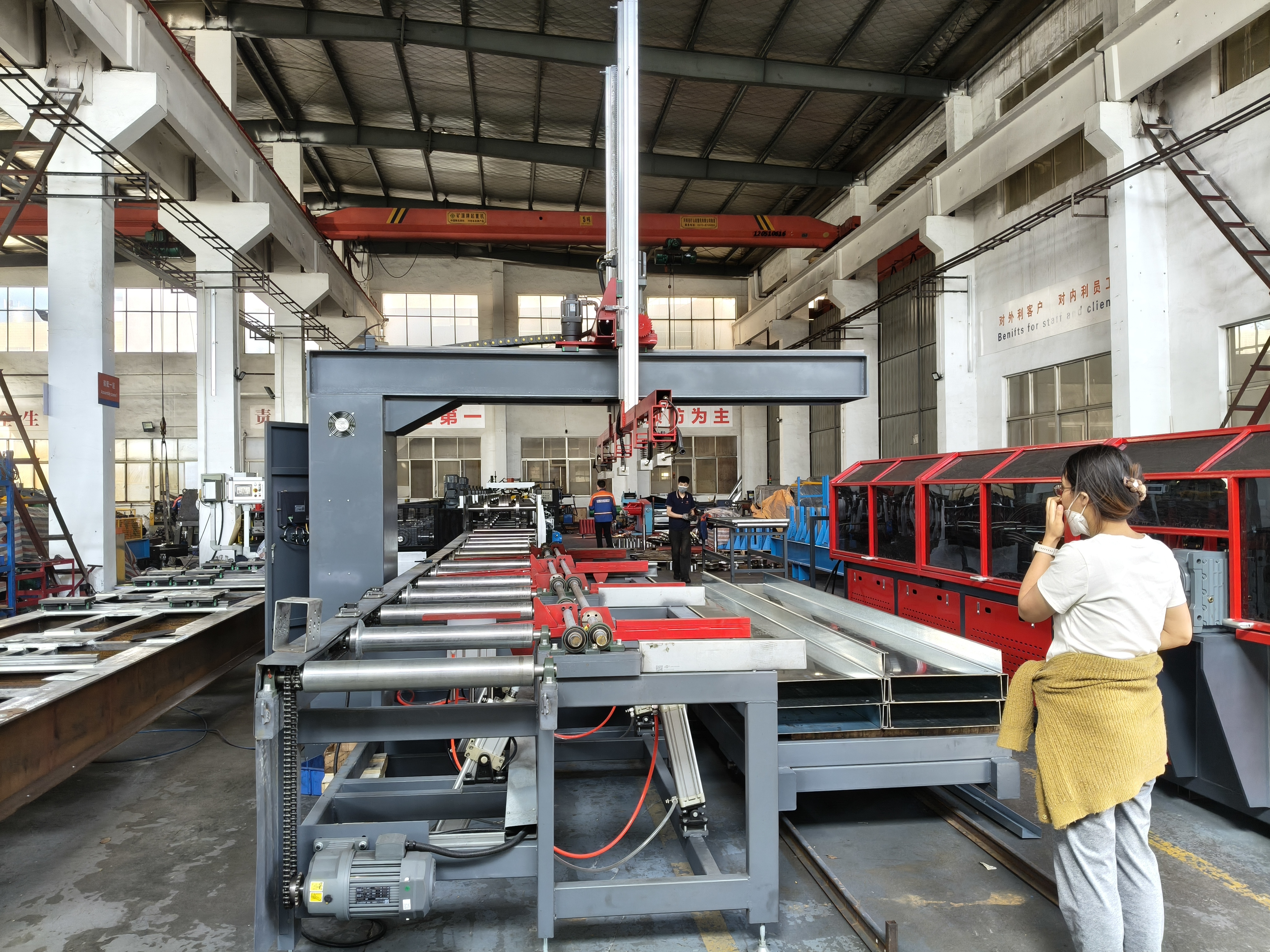

7 Auto stacker 1 set

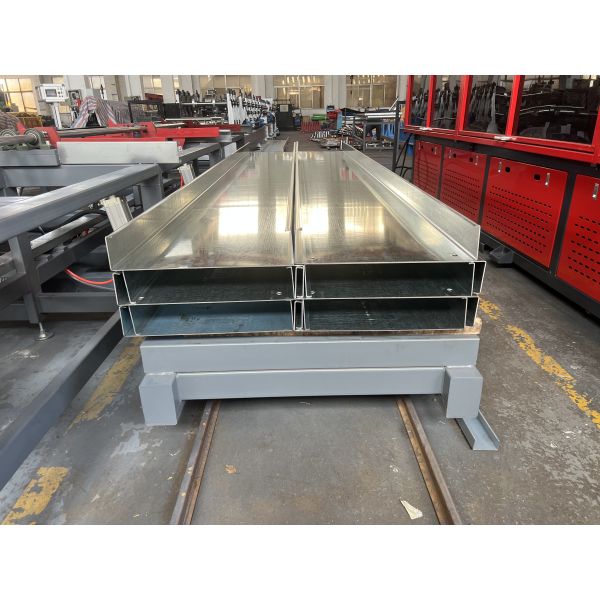

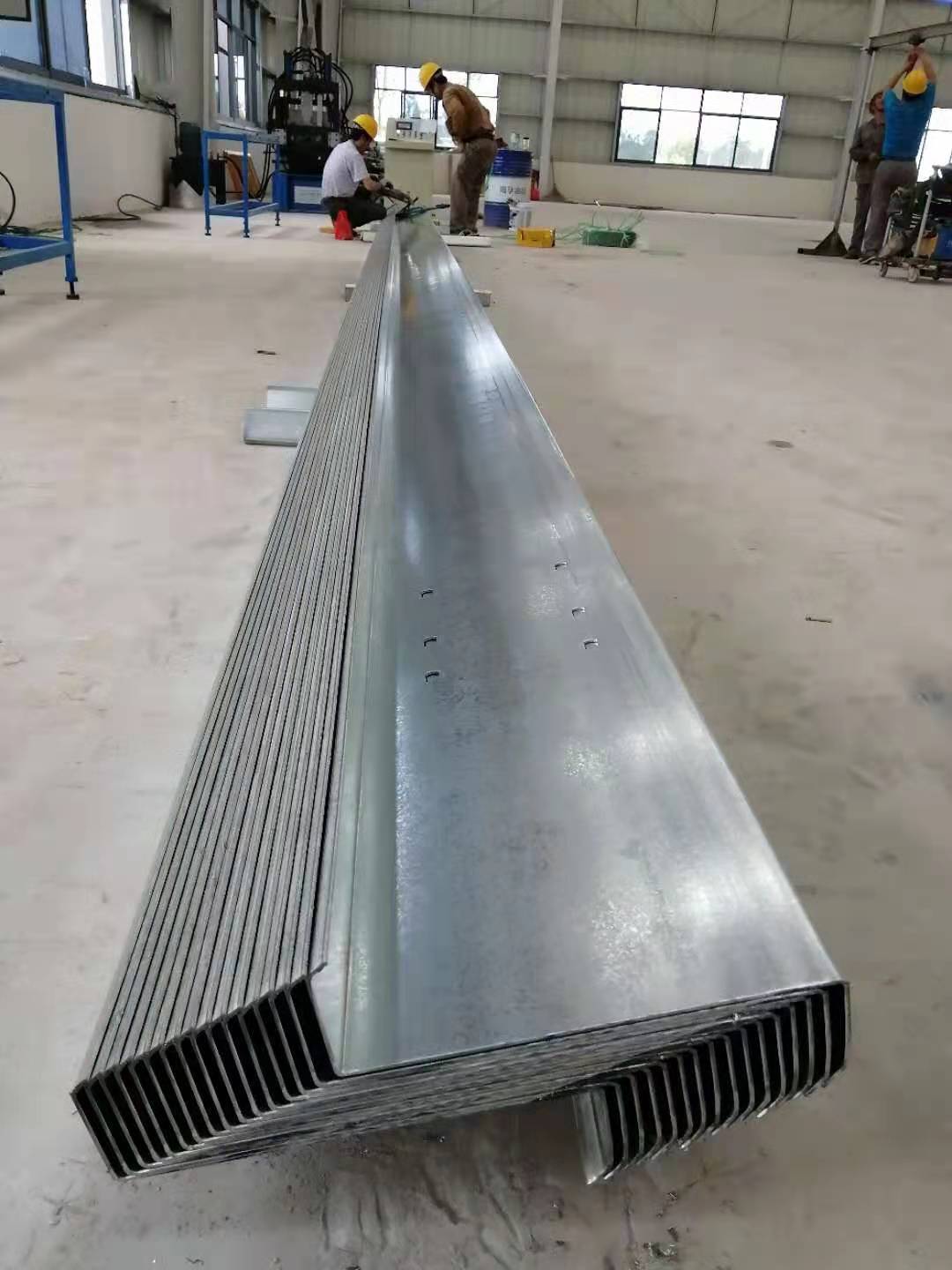

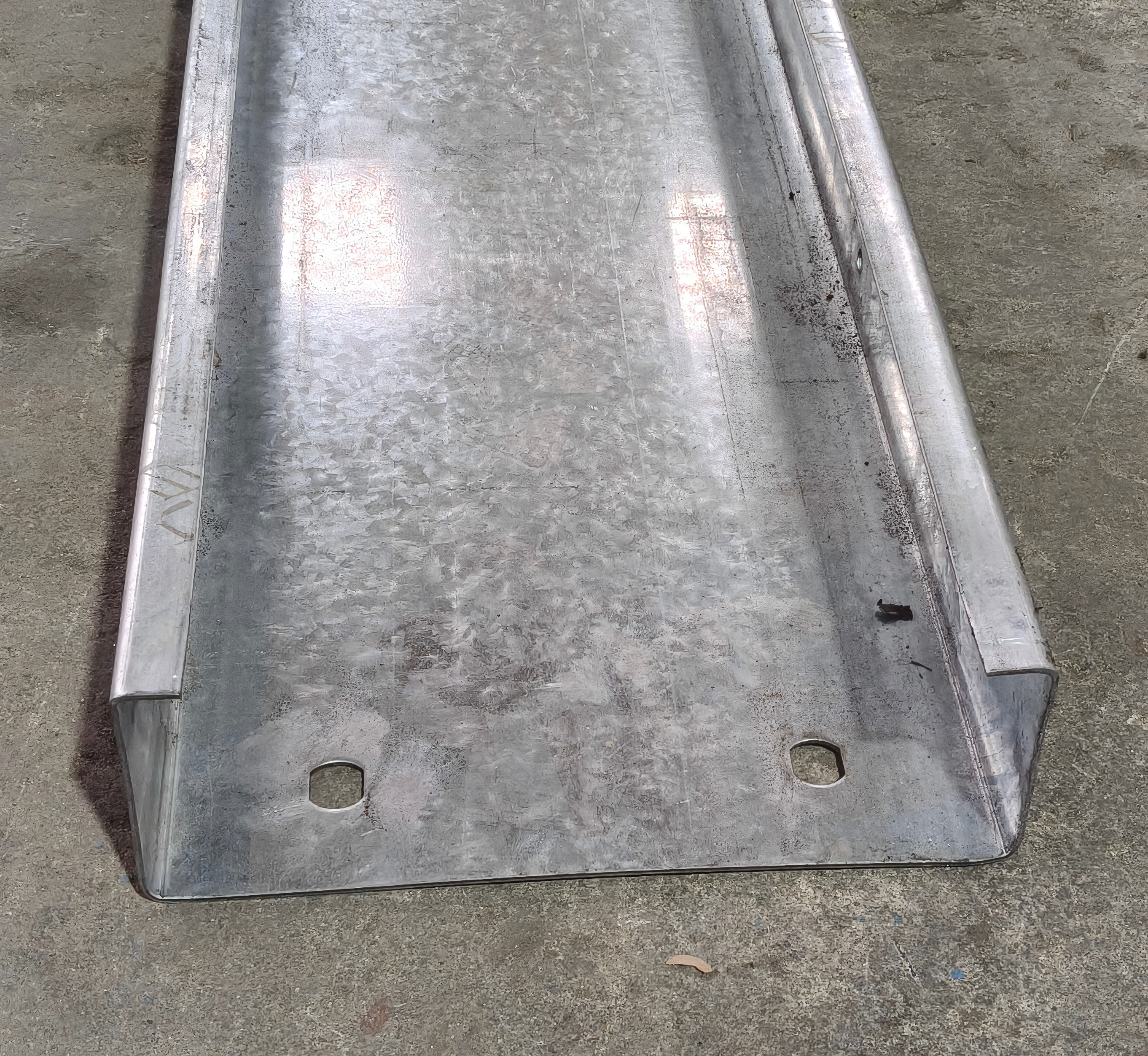

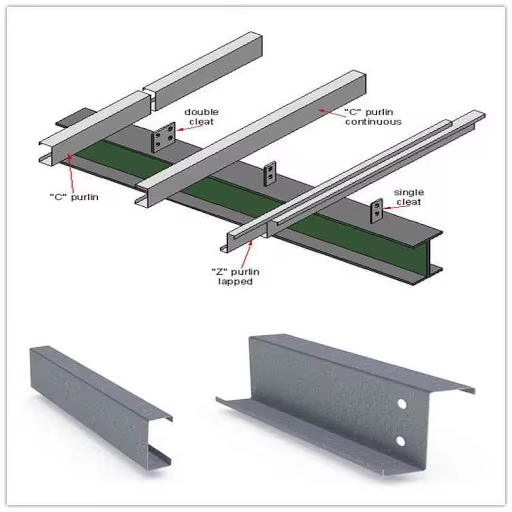

3. CZ100-500mm Purlin Profile Samples2.0-3.5mm Galvanized Steel 100-500mm Width Adjustable CZ Purlin Roll Forming Machine With Auto Stacker For Building Structure

2.0-3.5mm Galvanized Steel 100-500mm Width Adjustable CZ Purlin Roll Forming Machine With Auto Stacker For Building Structure

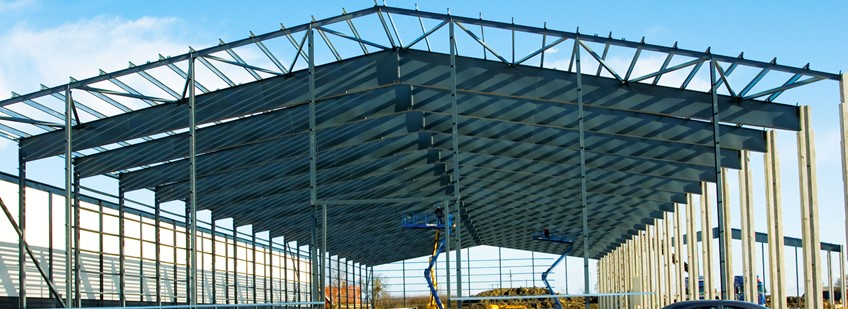

4.Appliction:

Commercial & Industrial Buildings: Used to bear the weight of roof sheeting (like metal deck) and connect seamlessly to the structural steel frame (rafters and columns).

Lightweight Efficiency: The cold-rolled design gives it a high strength-to-weight ratio, reducing the dead weight on the primary structural frame.

Customizability: The "100-300" range indicates the machine's ability to easily produce varying profiles, allowing structural engineers to specify the exact dimensions needed for specific wind, snow, and dead load limits.

2.0-3.5mm Galvanized Steel 100-500mm Width Adjustable CZ Purlin Roll Forming Machine With Auto Stacker For Building Structure

2.0-3.5mm Galvanized Steel 100-500mm Width Adjustable CZ Purlin Roll Forming Machine With Auto Stacker For Building Structure

Welcome to consult more details about it !
