0.3mm-0.8mm for Residential Building Corrugated Sheet Roof Panel Roll Forming Machine Color Steel PPGI Mini Wave
0.3mm-0.8mm for Residential Building Corrugated Sheet Roof Panel Roll Forming Machine Color Steel PPGI Mini Wave
0.3mm-0.8mm for Residential Building Corrugated Sheet Roof Panel Roll Forming Machine Color Steel PPGI Mini Wave
0.3mm-0.8mm for Residential Building Corrugated Sheet Roof Panel Roll Forming Machine Color Steel PPGI Mini Wave
0.3mm-0.8mm for Residential Building Corrugated Sheet Roof Panel Roll Forming Machine Color Steel PPGI Mini Wave
0.3mm-0.8mm for Residential Building Corrugated Sheet Roof Panel Roll Forming Machine Color Steel PPGI Mini Wave
0.3mm-0.8mm for Residential Building Corrugated Sheet Roof Panel Roll Forming Machine Color Steel PPGI Mini Wave
0.3mm-0.8mm for Residential Building Corrugated Sheet Roof Panel Roll Forming Machine Color Steel PPGI Mini Wave
0.3mm-0.8mm for Residential Building Corrugated Sheet Roof Panel Roll Forming Machine Color Steel PPGI Mini Wave
0.3mm-0.8mm for Residential Building Corrugated Sheet Roof Panel Roll Forming Machine Color Steel PPGI Mini Wave
0.3mm-0.8mm for Residential Building Corrugated Sheet Roof Panel Roll Forming Machine Color Steel PPGI Mini Wave
0.3mm-0.8mm for Residential Building Corrugated Sheet Roof Panel Roll Forming Machine Color Steel PPGI Mini Wave
Specifications
Brand Name :
Sussman Machinery
Model Number :
SSM-DFF
Certification :
CE ISO 9001
Place of Origin :
Jiangsu,China
MOQ :
1 set
Price :
negotation
Supply Ability :
10 set per month
Delivery Time :
95 days
Packaging Details :
Standard Packing with steel wire fixed and film coated
Material Thickness :
0.3-0.8 mm, Galvanized steel or PPGI
Working Speed :
About 8-12m/min
Driven system :
Chain driven
Main motor power :
7.5 KW
Description

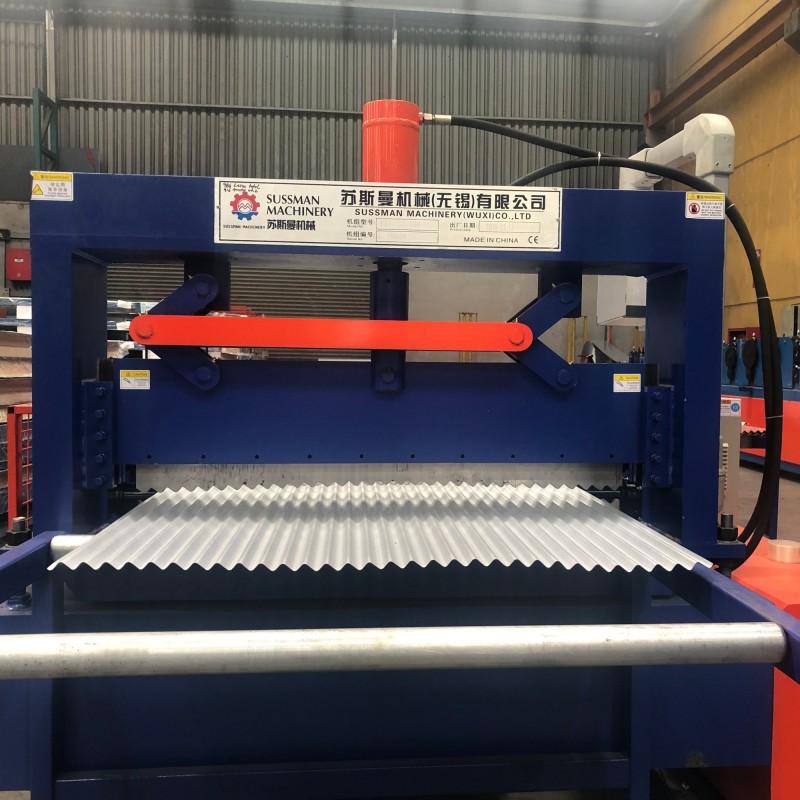

0.3mm-0.8mm for Residential Building Corrugated Sheet Roof Panel Roll Forming Machine Color Steel PPGI Mini Wave

0.3mm-0.8mm for Residential Building Corrugated Sheet Roof Panel Roll Forming Machine Color Steel PPGI Mini Wave

Machine List:
S.N
Equipment name
Quantity
1
5 tons passive un-coiler
1 set
2
Main roll forming machine
1 set
3
Hydraulic Cutting Device
1 unit
4
PLC Control box
1 unit
5
Hydraulic station
1 unit
6
Out table
1 set
7
Safety cover
1 set
8
Spare parts
1 Package
Machine Specification:
1
Material Thickness
thickness 0.3-0.8 mm, Galvanized steel or PPGI
2
Working Speed
About 8-12m/min
3
Forming Steps
About 20 stations
4
Material of Roller
Steel #45
5
Driven system
Chain drive
6
Main motor power
7.5 KW
7
Cutting type
Hydraulic cutting
8
Material of cutting
CR12 with quench treatment
9
Electronic control
PLC control
10
Hydraulic Station Power
4 kw


0.3mm-0.8mm for Residential Building Corrugated Sheet Roof Panel Roll Forming Machine Color Steel PPGI Mini Wave
Wide Application Scenarios

1. Industrial Construction
Ideal for roofing systems of large factories, production workshops, processing plants and logistics warehouses. The corrugated roof panels produced by the machine feature strong load-bearing capacity and good ventilation, fully meeting the durable and practical requirements of industrial buildings.
2. Commercial Buildings
Widely used for roofs of shopping malls, retail stores, office buildings and various commercial service venues. The finished roof sheets have neat appearance and excellent weather resistance, matching the aesthetic and functional
demands of commercial projects.

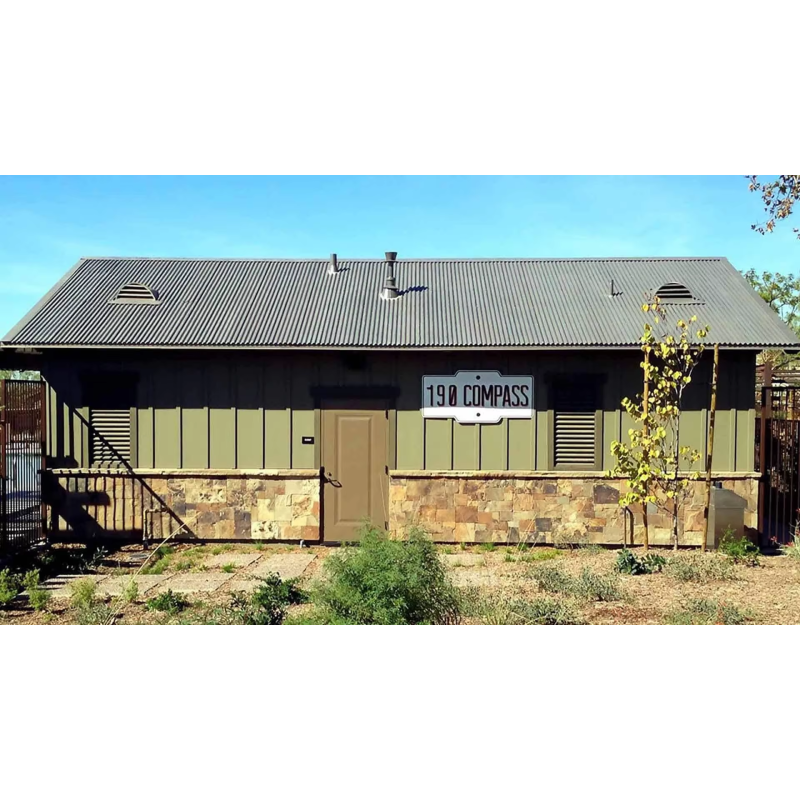

3. Residential Housing
Perfect for villas, family houses, residential communities and private garages. With reliable waterproof and anti-rust
performance, the roofing materials create a safe and comfortable living environment for residential spaces.
4. Agricultural Facilities
Suitable for farmhouses, barns, crop storage sheds, livestock shelters and other rural agricultural buildings. It adapts well to complex outdoor environments and stands up to long-term exposure to wind and rain.
Solution Advantages
1. Comprehensive After-sales Service
We promptly handle all equipment issues for customers. Remote technical guidance is available, and professional technicians can be dispatched for on-site commissioning to deliver satisfying service.
2. On-time Delivery Guarantee
Reasonable production schedules are formulated to arrange manufacturing orderly. We strictly control progress to ensure goods delivery as scheduled.
3. Complete Spare Parts Supply
Original matching accessories are fully provided, facilitating daily replacement and maintenance to keep machines running steadily.
4. Strict Quality Inspection
All products undergo multi-standard testing before delivery. Every detail is checked rigorously to guarantee reliable overall equipment quality.
0.3mm-0.8mm for Residential Building Corrugated Sheet Roof Panel Roll Forming Machine Color Steel PPGI Mini Wave
