Servo Motor Driven CU50-200 Light Gauge Steel Frame Roll Forming Machine Width & Height Adjustable for Making Light Steel Frame House
Servo Motor Driven CU50-200 Light Gauge Steel Frame Roll Forming Machine Width & Height Adjustable for Making Light Steel Frame House
Servo Motor Driven CU50-200 Light Gauge Steel Frame Roll Forming Machine Width & Height Adjustable for Making Light Steel Frame House
Servo Motor Driven CU50-200 Light Gauge Steel Frame Roll Forming Machine Width & Height Adjustable for Making Light Steel Frame House
Servo Motor Driven CU50-200 Light Gauge Steel Frame Roll Forming Machine Width & Height Adjustable for Making Light Steel Frame House
Servo Motor Driven CU50-200 Light Gauge Steel Frame Roll Forming Machine Width & Height Adjustable for Making Light Steel Frame House
Servo Motor Driven CU50-200 Light Gauge Steel Frame Roll Forming Machine Width & Height Adjustable for Making Light Steel Frame House
Servo Motor Driven CU50-200 Light Gauge Steel Frame Roll Forming Machine Width & Height Adjustable for Making Light Steel Frame House
Servo Motor Driven CU50-200 Light Gauge Steel Frame Roll Forming Machine Width & Height Adjustable for Making Light Steel Frame House
Servo Motor Driven CU50-200 Light Gauge Steel Frame Roll Forming Machine Width & Height Adjustable for Making Light Steel Frame House
Specifications
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Cutting System :
Hydraulic Cutting
Brand Name :
Sussman Machinery
Productionspeed :
About 1750m/h
Packaging Details :
Standard Packing with steel wire fixed and film coated
Cutting Blade Material :
Cr12Mov
Model Number :
SSM-CU50-200
Profile Sizes :
50-200mm
MOQ :
1 set
Delivery Time :
75 days
Roller Diameter :
75mm
Punching :
About 2 sets of web hole and dimple
Price :
negotation
Cutting Method :
Stop cutting
Supply Ability :
10 set per month
Driving Mode :
1.2 Inch Chain
Machine Weight :
6.5 tons
Certification :
CE ISO 9001
Feeding Thickness :
1.0-2.0mm
Place of Origin :
Jiangsu,China
Material :
Galvanized Coil
Description

Width & Height Adjustable CU50-200 Light Gauge Steel Frame Roll Forming Machine

Servo Motor Driven CU50-200 Light Gauge Steel Frame Roll Forming Machine Width & Height Adjustable for Making Light Steel Frame House

1. CU50-200 Light Gauge Steel Frame Roll Forming Machine Technical Parameter

1 Suitable to process Galvanized steel
2 Width of the plate As customer need
3 Thickness of the plate 1.0-2.0 mm
4 De-coiler 2 ton automatic de-coiler with leveller
5 Rollers for forming About 16 rollers
6 Diameter of the roller Φ75mm
7 Rolling material Gcr15 Steel with quenching
8 Main motor power 11kw servo motor
9 Productivity About 1750m/h
10 Cutting method Hydraulic cutting
11 Material of the cutting blade Cr12Mov
12 Hydraulic cutting power 7.5kw
13 Processing precision +/- 1.50mm
14 Control system PLC control
15 Main structure of the machine 350 H steel
16 Weight About 6.5 T
17 Dimensions 9.5*1.0*1.2m
18 Voltage 220V 60Hz 3phases,or according to your request

2. CU50-200 Light Gauge Steel Machine’s Components

Item Components Name Quantity
1 2 ton automatic de-coiler with leveller 1 set
2 Roll Forming Machine 1 set
3 Punching dies 3sets
4 Hydraulic Station 1 set
5 PLC control box 1 set
6 Cutting blade 1 unit
7 Passive out table 1 unit

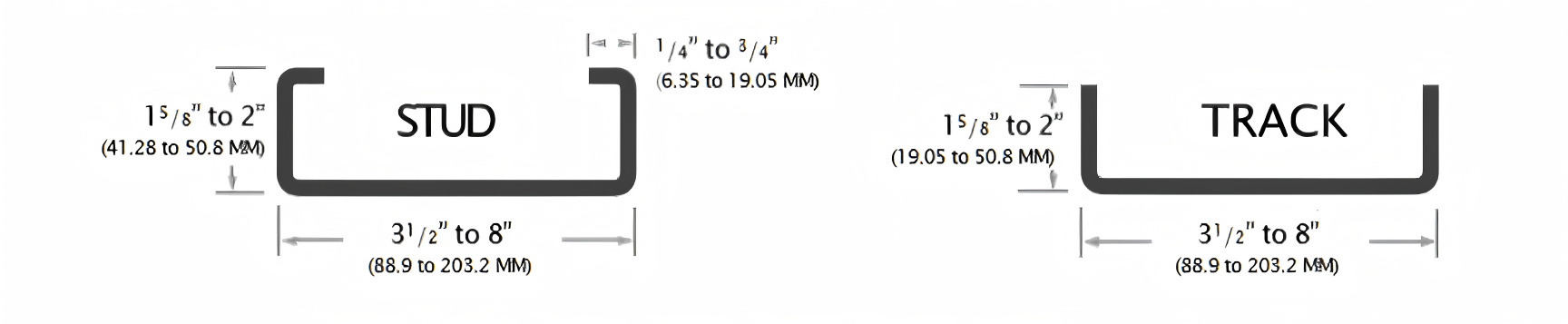

3. CU50-200 Light Gauge Steel Profile Drawings&Samples

Servo Motor Driven CU50-200 Light Gauge Steel Frame Roll Forming Machine Width & Height Adjustable for Making Light Steel Frame House

Servo Motor Driven CU50-200 Light Gauge Steel Frame Roll Forming Machine Width & Height Adjustable for Making Light Steel Frame HouseServo Motor Driven CU50-200 Light Gauge Steel Frame Roll Forming Machine Width & Height Adjustable for Making Light Steel Frame House

4.Appliction:

The CU50-200 Light Gauge Steel Framing Machine is a versatile C/U channel dual-purpose cold roll forming line, designed for high-efficiency production of C50–200mm series light steel keels (including matching U-type accessories). It serves as the core equipment for manufacturing purlins and partition frames in industrial plants, light steel villas, and prefabricated buildings.

The CU50-200 is a general-purpose mainstay equipment for medium and small-sized light steel keels, widely used in:

  1. Roof/wall purlin production for steel plants and warehouses

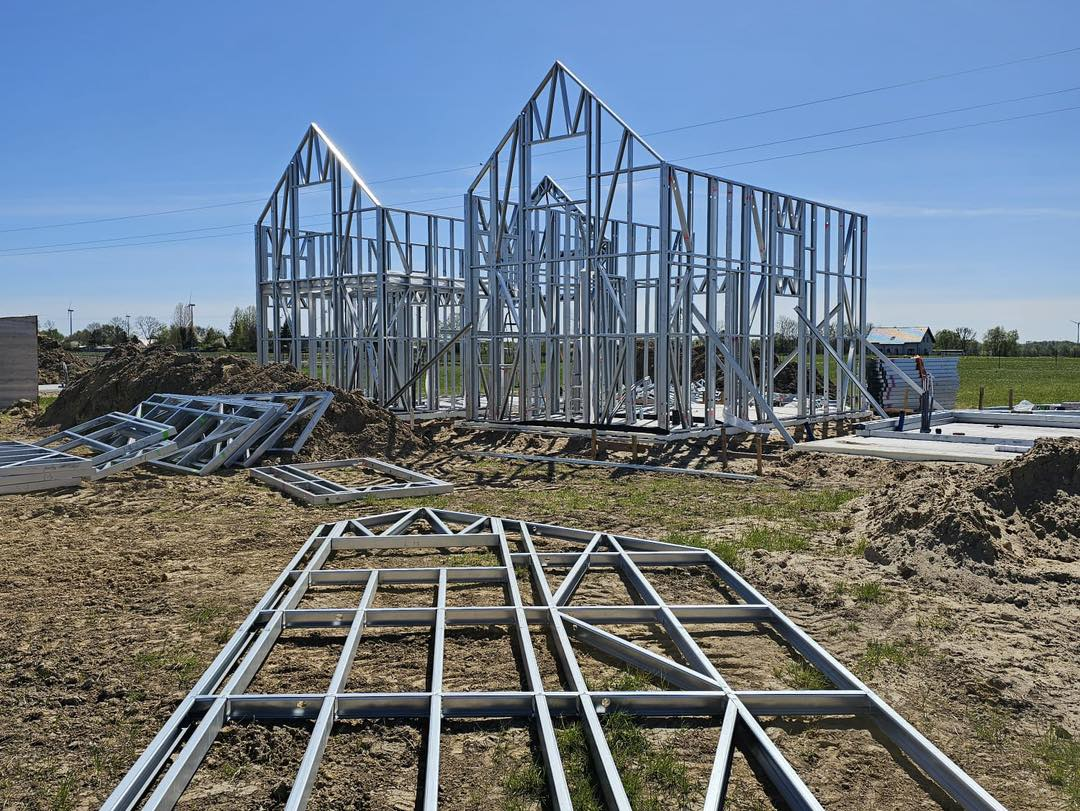

  2. Fabrication of load-bearing frames for prefabricated light steel villas
  3. Column and beam manufacturing for modular/prefabricated container houses

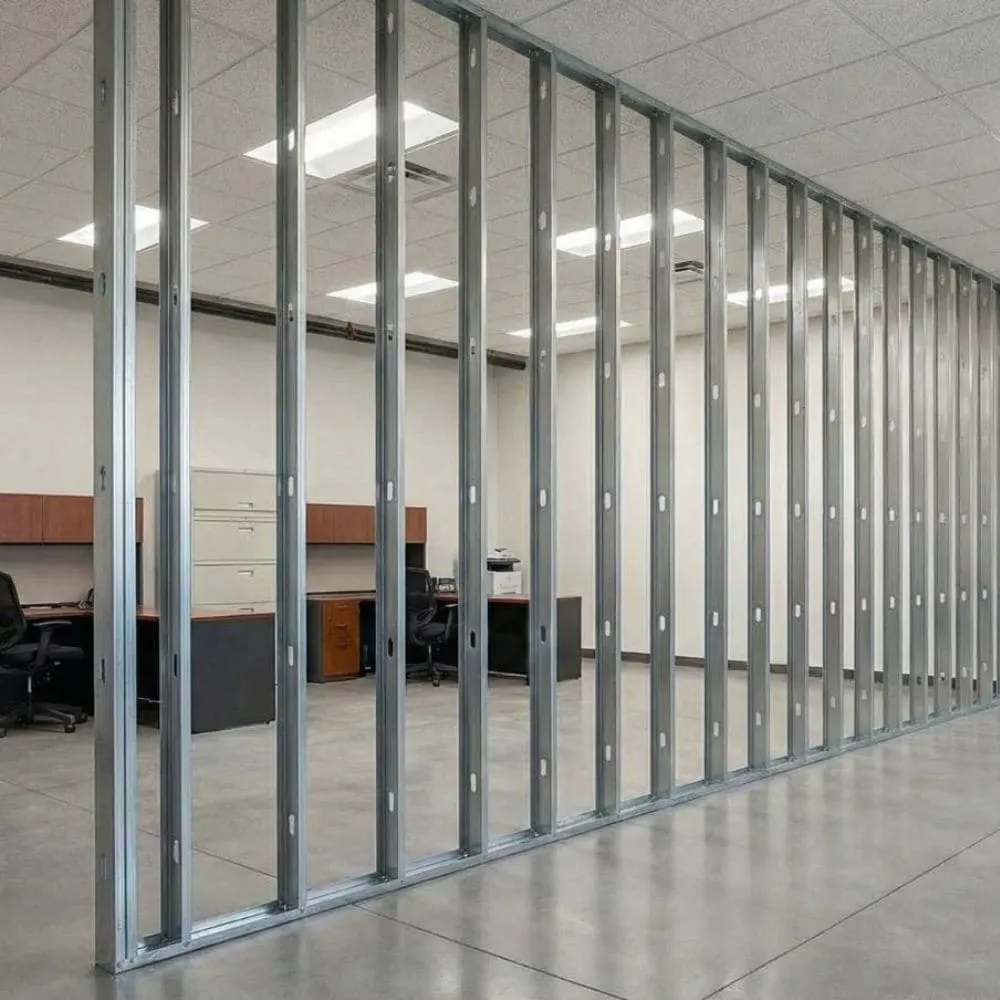

  4. Light steel partition and ceiling keel production for office buildings and shopping malls It addresses the pain points of high investment and cumbersome changeovers with traditional multi-specification equipment, making it a core tool for small-to-medium profile manufacturers to reduce costs and increase efficiency.

Servo Motor Driven CU50-200 Light Gauge Steel Frame Roll Forming Machine Width & Height Adjustable for Making Light Steel Frame House

Servo Motor Driven CU50-200 Light Gauge Steel Frame Roll Forming Machine Width & Height Adjustable for Making Light Steel Frame HouseServo Motor Driven CU50-200 Light Gauge Steel Frame Roll Forming Machine Width & Height Adjustable for Making Light Steel Frame House
