Specifications
Certification :
CE ISO 9001
Working Speed :
About 0-12 m/min
Supply Ability :
10 set per month
Hydraulic Station Power :
5.5 KW
MOQ :
1 set
Driven system :
Chain driven
Price :
negotation
Packaging Details :
Standard Packing with steel wire fixed and film coated
Main motor power :
18.5 KW
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Cutting type :
Hydraulic cutting
Place of Origin :
China
Forming Steps :
About 24 stations
Delivery Time :
75 days
Brand Name :
sussman
Material Thickness :
0.6-1.2mm Galvanized steel

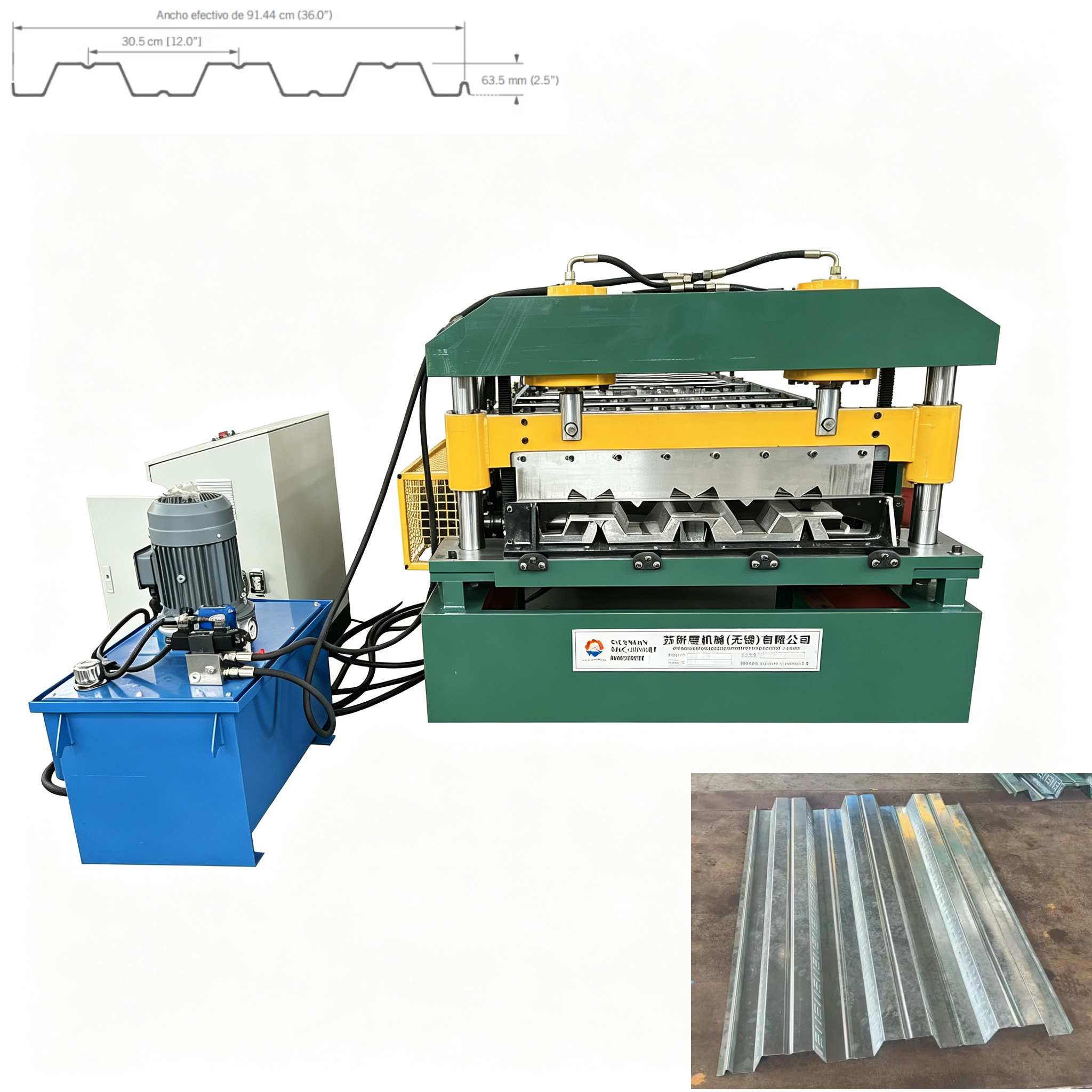

Description

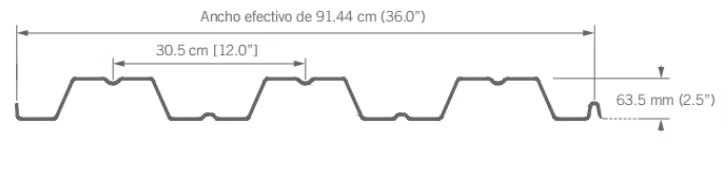

This popular 2.5 inch metal floor deck roll forming machine with embossing ribs is specially developed for Mexican steel construction projects. It adapts galvanized steel raw material with a processing thickness range of 0.6mm to 1.2mm, covering most common steel plate specifications for composite floor slabs.

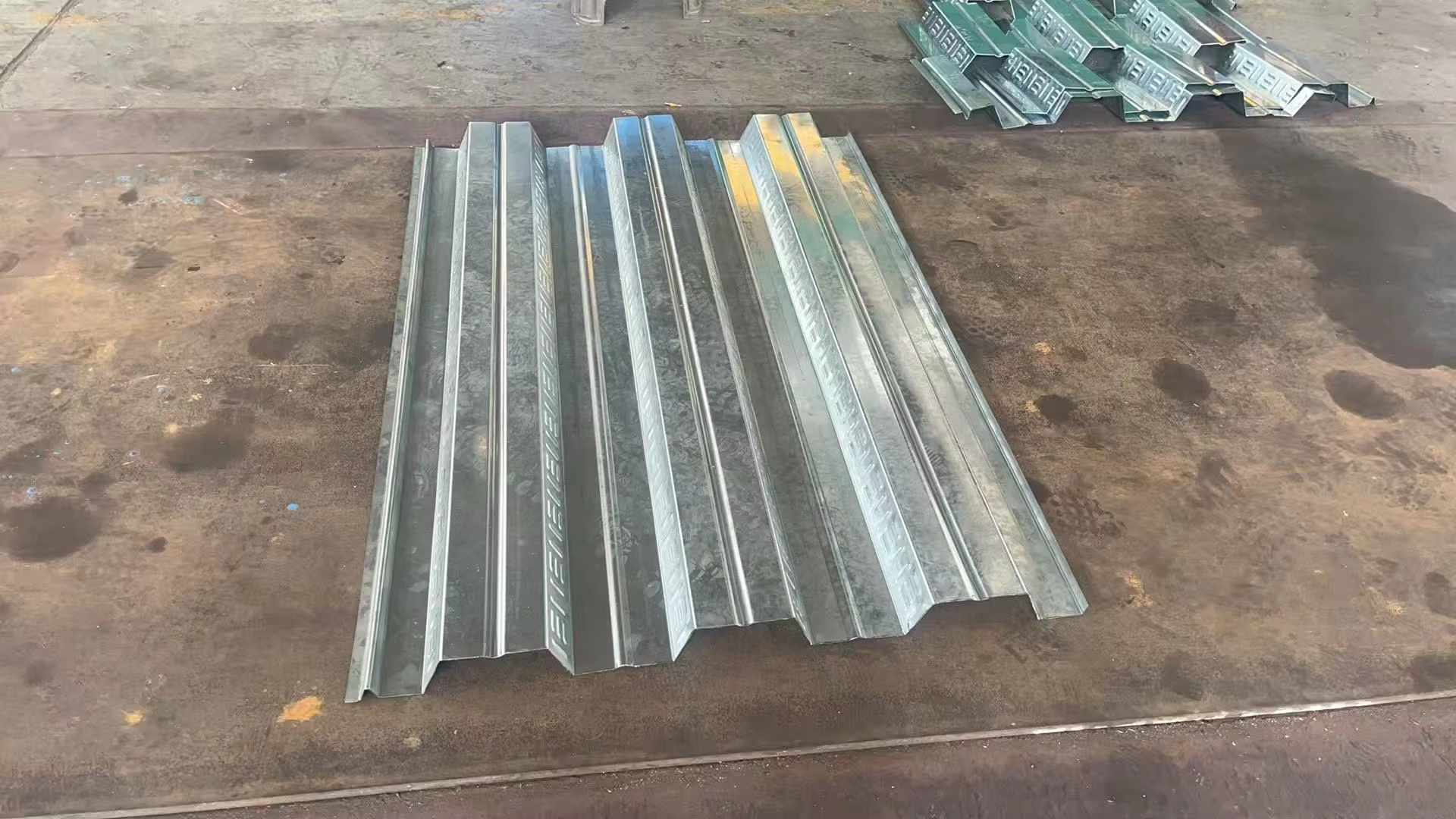

Equipped with embossing rib forming structure, the finished metal deck owns stronger bearing capacity and better combination performance with concrete. The whole production line runs stably and produces standardized floor deck sheets, which are widely applied in multi-story parking garages, industrial workshops, logistics warehouses, shopping malls and other steel structure buildings.
Machine List:
S.N
Equipment name
Quantity
1
5 ton passive decoiler
1 set
2

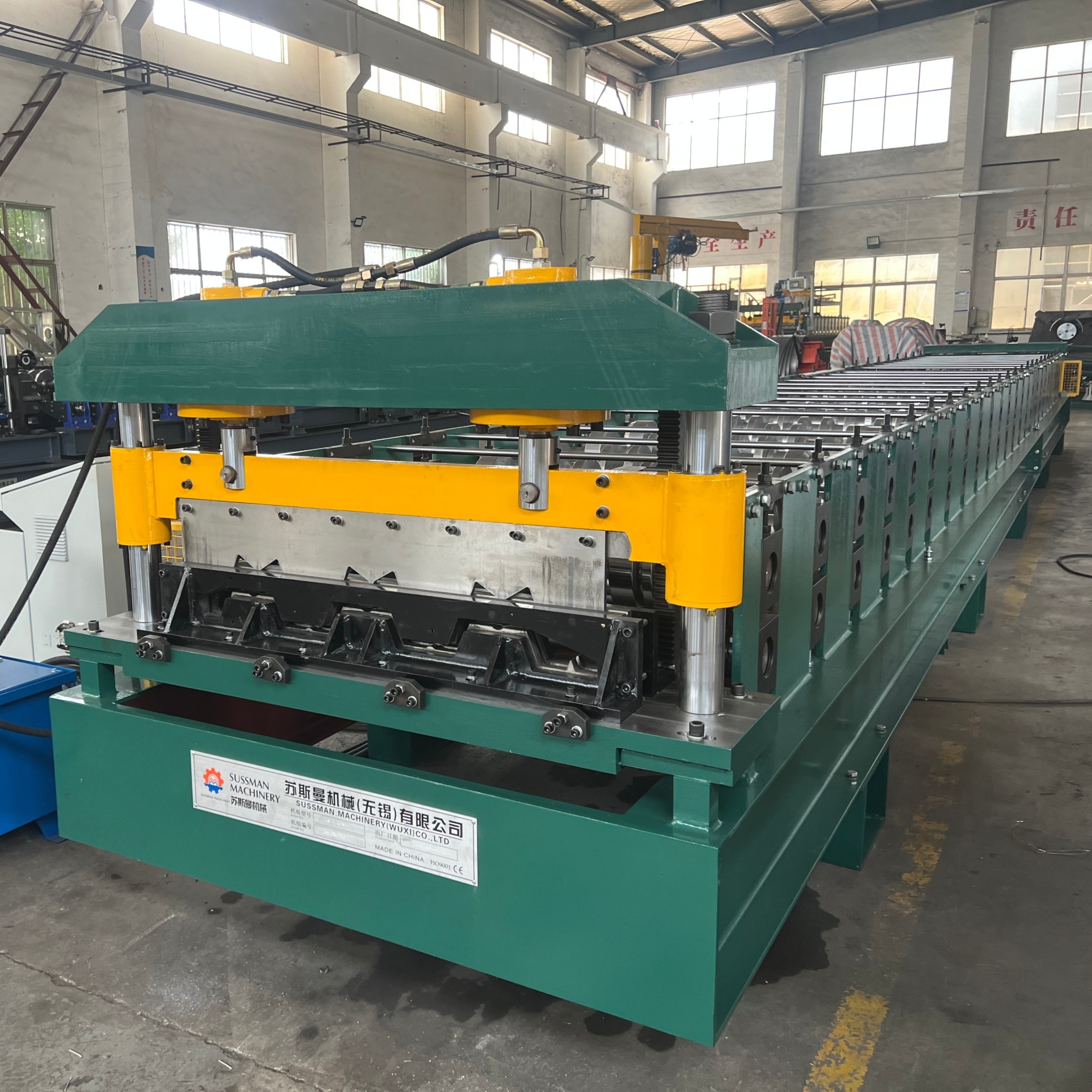

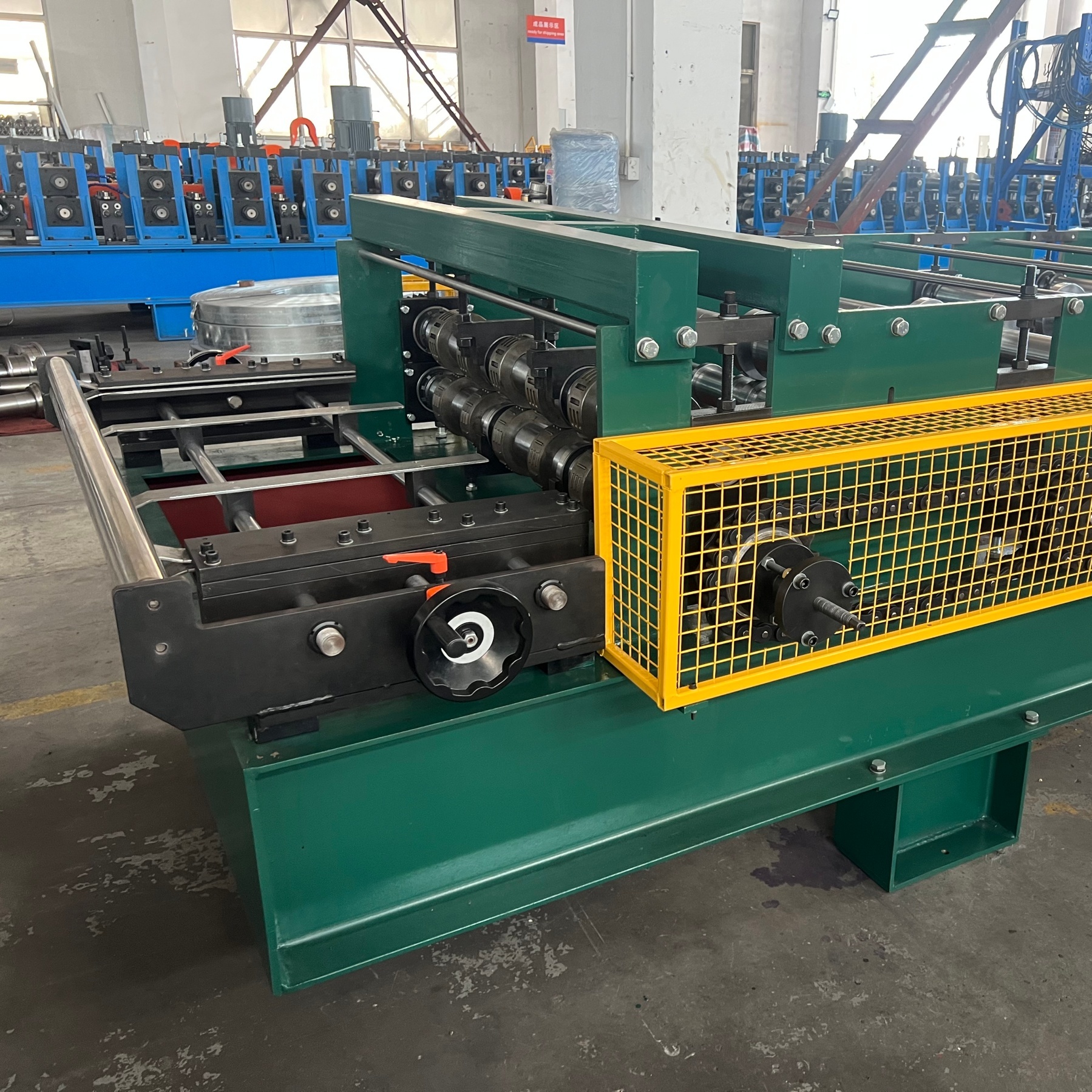

Main roll forming machine with embossing rollers
1 set
3
Hydraulic cutting
1 unit
4
PLC Control box
1 unit
5
Hydraulic station
1 unit
6
Out tables
2 units
7
Safety cover
1 set
8
Spare parts
1 Package

Machine Specification:

1
Material Thickness
thickness 0.6-1.2mm Galvanized steel
2
Working Speed
About 0-12 m/min
3
Forming Steps
About 24 stations
4
Material of Roller
Gcr15
5
Driven system
Chain driven
6
Main motor power
18.5 KW
7
Cutting type
Hydraulic cutting
8
Material of cutting
Cr12Mov
9
Electronic control
PLC control
10
Hydraulic Station Power
5.5 KW

Mexico With Embossing Ribs 0.6-1.2mm 2.5 Inch Metal Deck Floor Roll Forming Machine Industrial Factory Multi-Story Building

Mexico With Embossing Ribs 0.6-1.2mm 2.5 Inch Metal Deck Floor Roll Forming Machine Industrial Factory Multi-Story Building

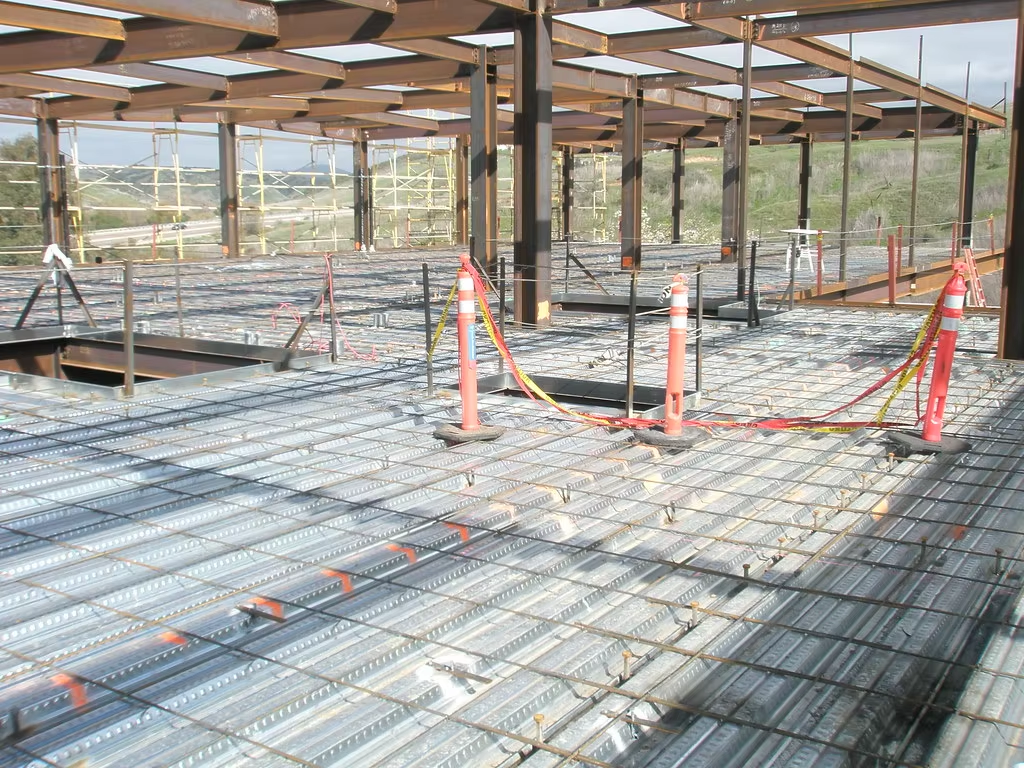

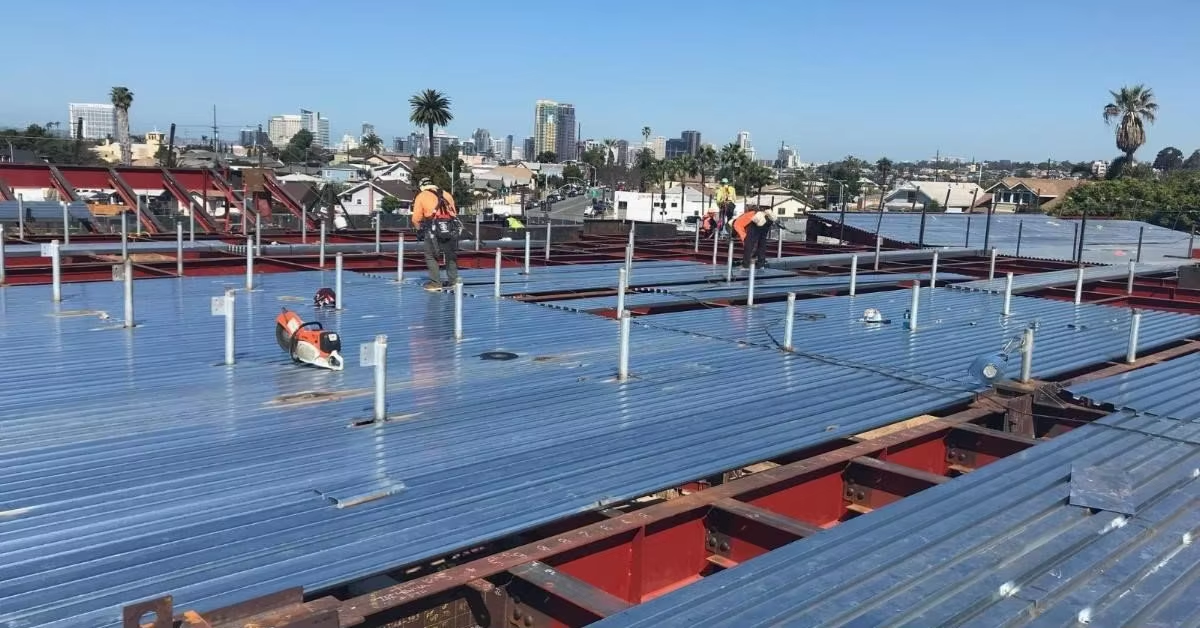

Wide Application Scenarios

1. Multi-level underground and ground parking garage composite floor slab projects


2. Large heavy-load industrial workshop steel bearing floor construction
3. Large logistics storage warehouse metal floor deck laying engineering
4. Large commercial shopping mall and supermarket steel structure floor system
5. Multi-storey office buildings and light steel residential composite floor projects

6. Municipal civil engineering concrete composite metal floor supporting projects
Solution Advantages
1. Comprehensive After-sales Service
We promptly handle all equipment issues for customers. Remote technical guidance is available, and professional technicians can be dispatched for on-site commissioning to deliver satisfying service.

2. On-time Delivery Guarantee
Reasonable production schedules are formulated to arrange manufacturing orderly. We strictly control progress to ensure goods delivery as scheduled.

3. Complete Spare Parts Supply
Original matching accessories are fully provided, facilitating daily replacement and maintenance to keep machines running steadily.

4. Strict Quality Inspection
All products undergo multi-standard testing before delivery. Every detail is checked rigorously to guarantee reliable overall equipment quality.

5. Cost-effective On-site Matching
Fit construction demands of multiple regions, lower production cost and improve project construction efficiency.
