Specifications
Model Number :
garage door panel back reinforcement strut channel
Working Speed :
About 0-10m/min
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Place of Origin :
China
Main motor power :
7.5 KW
Packaging Details :
Standard Packing with steel wire fixed and film coated
MOQ :
1 set
Delivery Time :
75 days
Cutting type :
Hydraulic cutting
Price :
negotation
Hydraulic Station Power :
4 KW
Certification :
CE ISO 9001
Driven system :
Gear box
Supply Ability :
10 set per month
Brand Name :
sussman
Material Thickness :
0.5mm-1.2mm, Galvanized Steel
Description

This garage door panel back reinforcement strut channel roll forming machine is specially customized for Mexican sectional garage door manufacturers, compatible with galvanized steel raw material ranging from 0.5mm to 1.2mm in thickness. Galvanized steel features strong rust resistance and stable structural rigidity, perfectly matching local climate and wind load standards in Mexico.

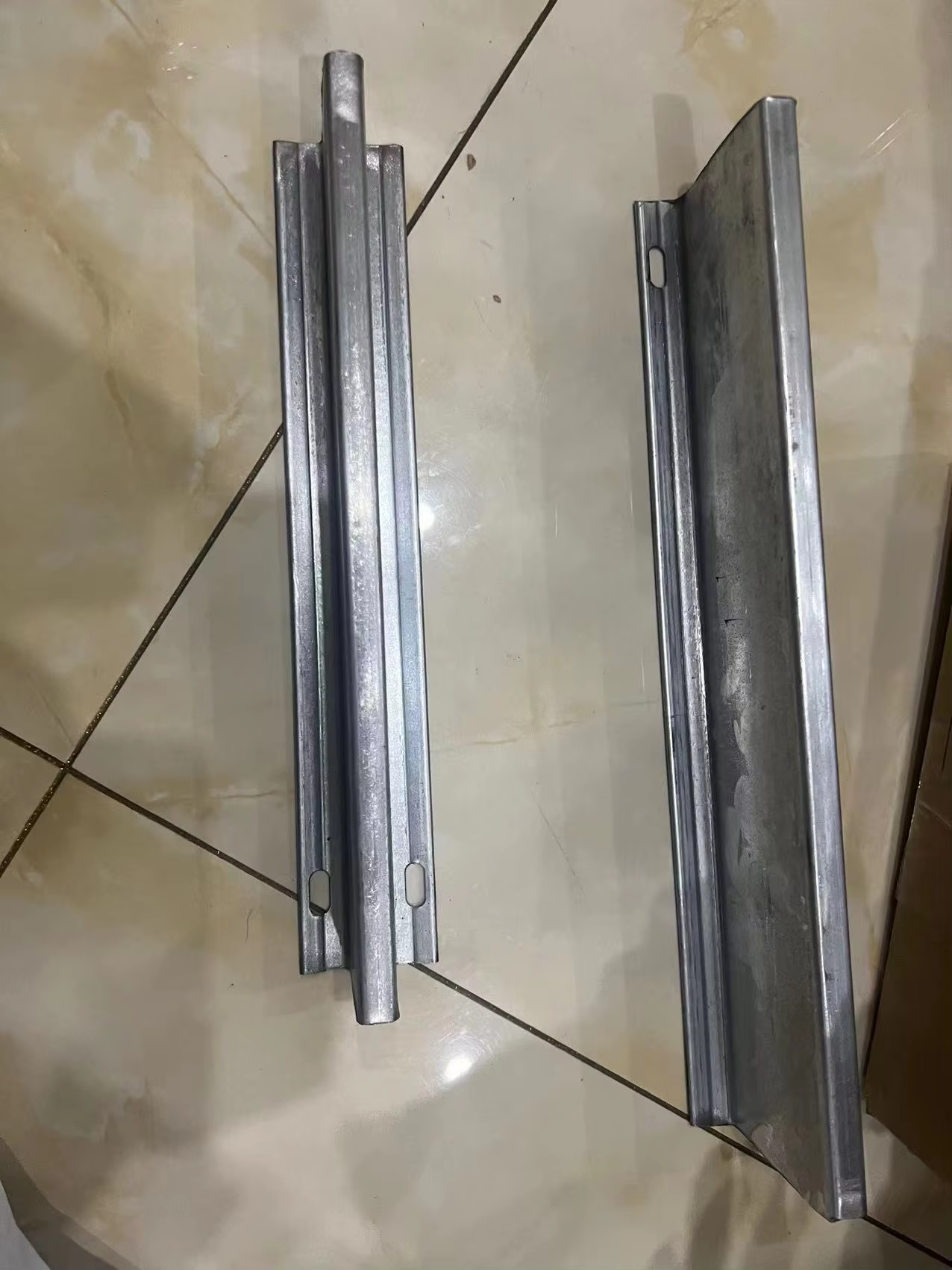

The whole line can continuously cold-form anti-sag back support struts for residential, commercial and industrial overhead garage doors, delivering uniform profile dimension and smooth surface without material cracking during forming.
With adjustable feeding clearance to cover the full 0.5–1.2mm thickness range, it realizes flexible batch production of thin and medium-gauge reinforcing channels, also available for manufacturing solar mounting struts, HVAC pipe supports and electrical unistrut profiles for metal processing workshops across Mexico.

Machine List:

S.N
Equipment name
Quantity
1
3 ton passive decoiler
1 set
2
Main roll forming machine
1 set
3
Hydraulic punching device
1 set
4
Hydraulic Cutting Device
1 set
5
PLC Control box
1 unit
6
Hydraulic station
1 unit
7
Out tables
2 units
8
Safety cover
1 set
9
Spare parts
1 Package

Machine Specification:

1
Material Thickness
thickness 0.5mm-1.2mm, Galvanized Steel
2
Working Speed
About 0-10m/min
3
Forming Steps
About 14 stations
4
Material of Roller
Gcr15, Quench HRC58-62 Plated Chrome
5
Driven system
Gear box
6
Main motor power
7.5 KW
7
Cutting type
Hydraulic cutting
8
Material of cutting
Cr12Mov
9
Electronic control
PLC control
10
Hydraulic Station Power
4 KW

Residential Commercial Sectional Back Panel Strut Channel Roll Forming Machine Factories Garage Door Reinforcement Mexico

Residential Commercial Sectional Back Panel Strut Channel Roll Forming Machine Factories Garage Door Reinforcement Mexico


Wide Application Scenarios

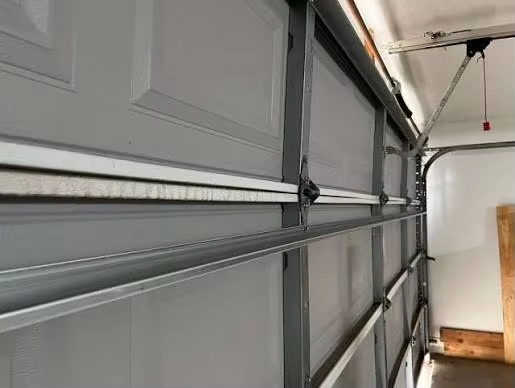

1. Residential Sectional Garage Door Production

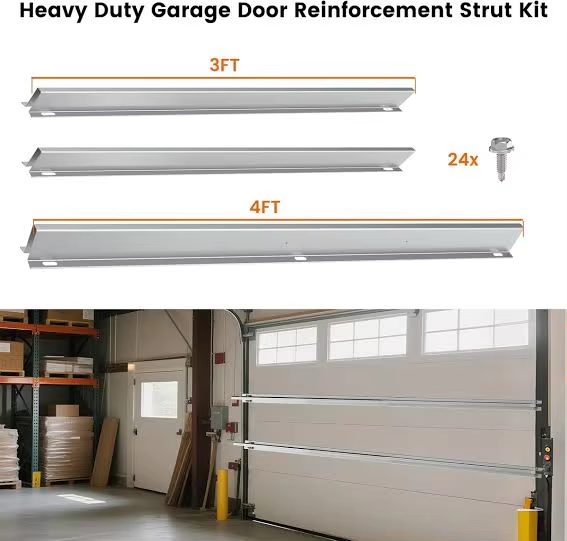

Manufacture anti-sag back reinforcement struts for household overhead garage doors, using 0.5–1.2mm galvanized steel to enhance wind resistance.

2. Commercial & Industrial Overhead Garage Door Manufacturing

Produce heavy-duty support channels for factory, warehouse and mall large-size garage doors, stable forming for medium-thickness galvanized steel.

3. Solar Mounting Bracket Fabrication

Form galvanized strut profiles for photovoltaic panel mounting frames, applicable to metal processing factories in Mexico.

4. HVAC & Pipeline Support System

Make metal unistrut channels for air duct, water pipe fixing brackets with 0.5–1.2mm galvanized steel raw material.

5. Electrical Construction Support Profiles

Produce cable tray support and electrical installation struts for building electrical engineering projects.
Solution Advantages
1. Comprehensive After-sales Service

 We promptly handle all equipment issues for customers. Remote technical guidance is available, and professional technicians can be dispatched for on-site commissioning to deliver satisfying service.

2. On-time Delivery Guarantee

 Reasonable production schedules are formulated to arrange manufacturing orderly. We strictly control progress to ensure goods delivery as scheduled.

3. Complete Spare Parts Supply

 Original matching accessories are fully provided, facilitating daily replacement and maintenance to keep machines running steadily.

4. Strict Quality Inspection

 All products undergo multi-standard testing before delivery. Every detail is checked rigorously to guarantee reliable overall equipment quality.

5. Cost-effective On-site Matching

 Fit construction demands of multiple regions, lower production cost and improve project construction efficiency.
