USA Galvanized Steel W-Beam Two Waves Highway Guard Rail Roll Forming Machine Highways Urban Road & Road Safety Crash Barrier
USA Galvanized Steel W-Beam Two Waves Highway Guard Rail Roll Forming Machine Highways Urban Road & Road Safety Crash Barrier
USA Galvanized Steel W-Beam Two Waves Highway Guard Rail Roll Forming Machine Highways Urban Road & Road Safety Crash Barrier
USA Galvanized Steel W-Beam Two Waves Highway Guard Rail Roll Forming Machine Highways Urban Road & Road Safety Crash Barrier
USA Galvanized Steel W-Beam Two Waves Highway Guard Rail Roll Forming Machine Highways Urban Road & Road Safety Crash Barrier
USA Galvanized Steel W-Beam Two Waves Highway Guard Rail Roll Forming Machine Highways Urban Road & Road Safety Crash Barrier
USA Galvanized Steel W-Beam Two Waves Highway Guard Rail Roll Forming Machine Highways Urban Road & Road Safety Crash Barrier
USA Galvanized Steel W-Beam Two Waves Highway Guard Rail Roll Forming Machine Highways Urban Road & Road Safety Crash Barrier
USA Galvanized Steel W-Beam Two Waves Highway Guard Rail Roll Forming Machine Highways Urban Road & Road Safety Crash Barrier
USA Galvanized Steel W-Beam Two Waves Highway Guard Rail Roll Forming Machine Highways Urban Road & Road Safety Crash Barrier
USA Galvanized Steel W-Beam Two Waves Highway Guard Rail Roll Forming Machine Highways Urban Road & Road Safety Crash Barrier
USA Galvanized Steel W-Beam Two Waves Highway Guard Rail Roll Forming Machine Highways Urban Road & Road Safety Crash Barrier
Specifications
Model Number :
Two Waves Highway Guard Rail
Working Speed :
About 7-8 m/min
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Place of Origin :
China
Driven system :
Gear box
Packaging Details :
Standard Packing with steel wire fixed and film coated
MOQ :
1 set
Delivery Time :
75 days
Main motor power :
22 KW
Price :
negotation
Cutting type :
Hydraulic cutting
Certification :
CE ISO 9001
Forming Steps :
About 15 stations
Supply Ability :
10 set per month
Brand Name :
sussman
Material Thickness :
2.0 mm-3.5 mm, Galvanized steel
Description

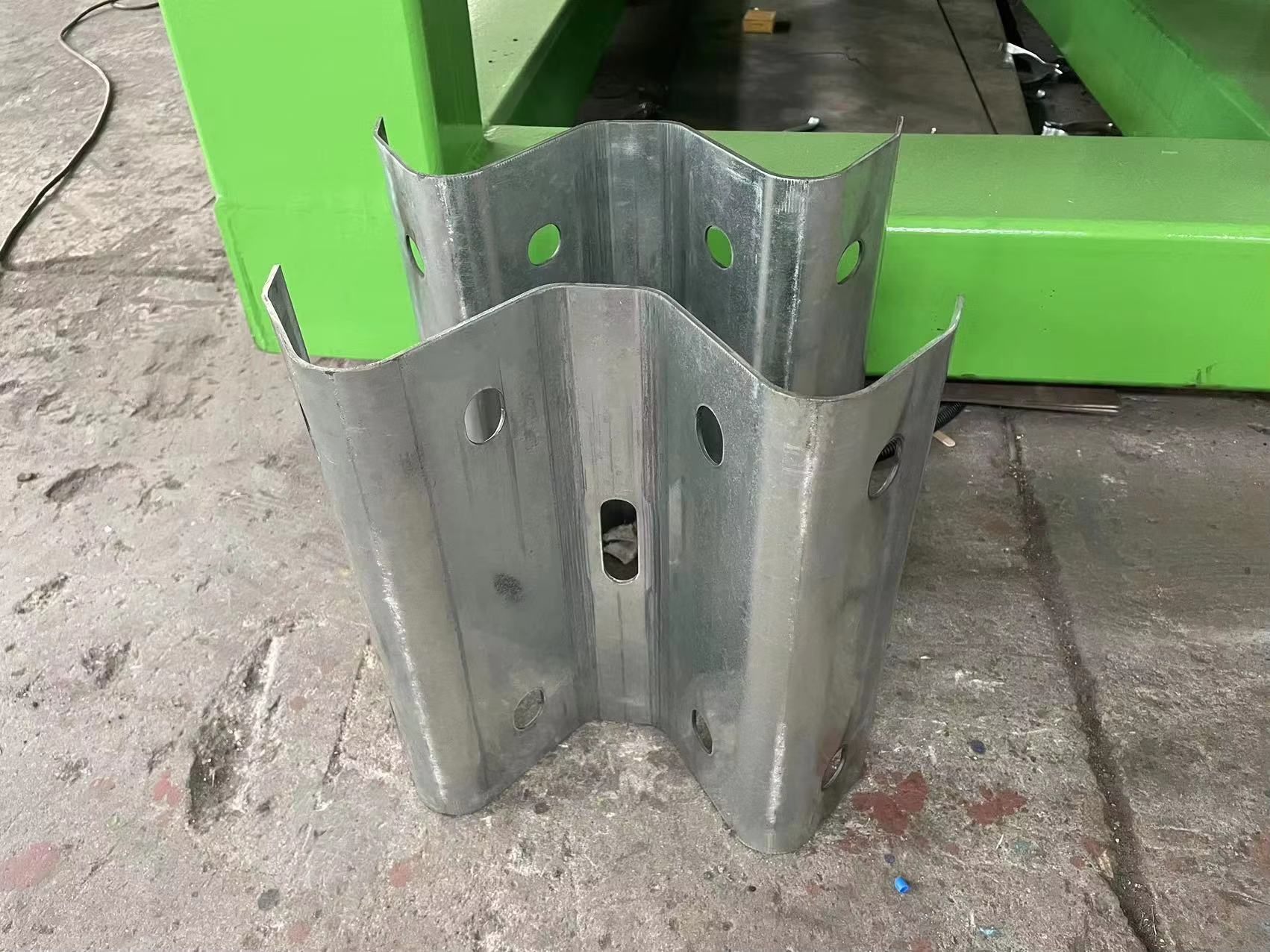

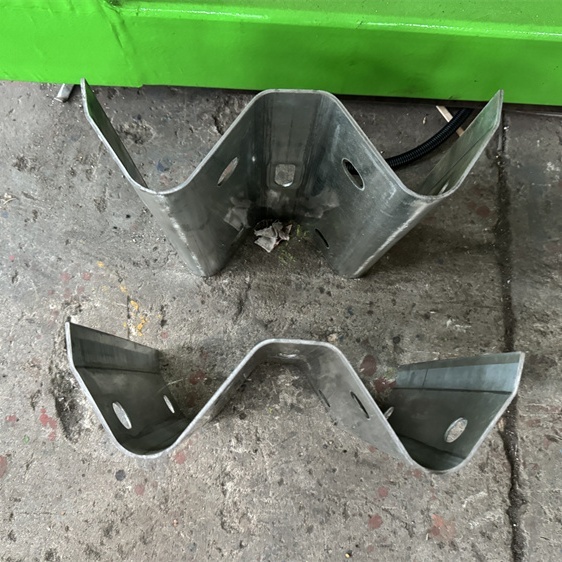

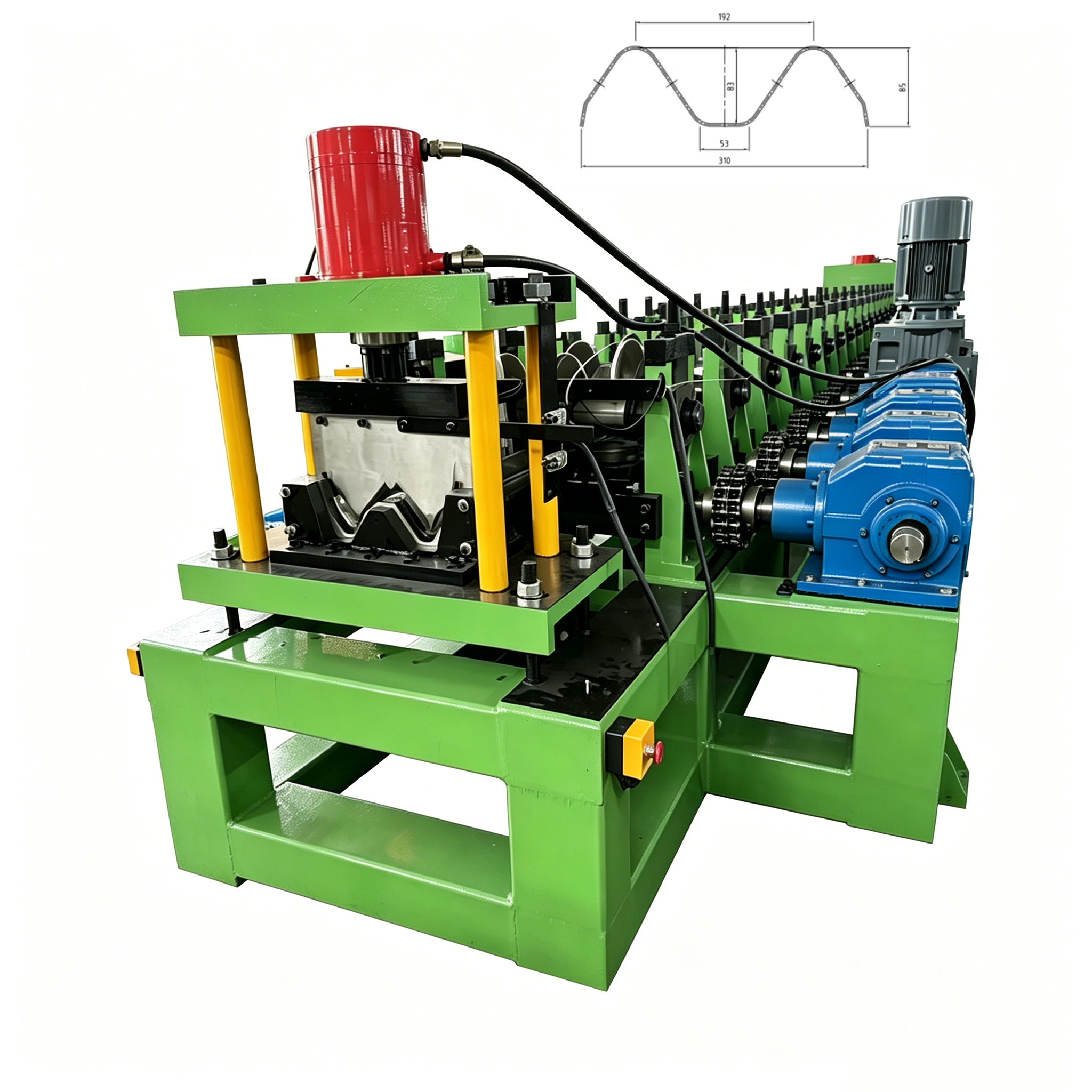

This automatic two waves W-beam highway guard rail roll forming machine is popular in the United States. It is designed to process galvanized steel with material thickness ranging from 2.0 mm to 3.5 mm. The finished guardrails comply with standards and are widely applied in highways, municipal roads, bridges, ramps and mountain road safety projects.

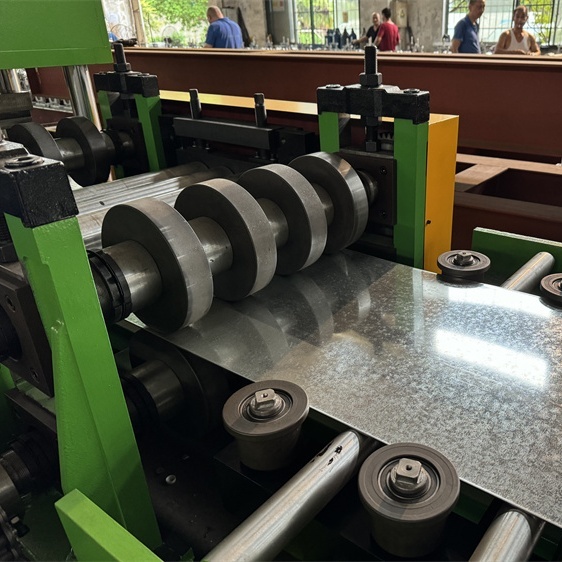

Adopting stable cold roll forming technology, the machine ensures high forming precision, smooth surface and consistent dimension of W beam guardrails. It is an ideal production equipment for road safety barrier manufacturers engaged in American infrastructure construction.
Machine List:
S.N
Equipment name
Quantity
1
5 ton passive decoiler
1 set
2
Hydraulic punching device
3 sets
3

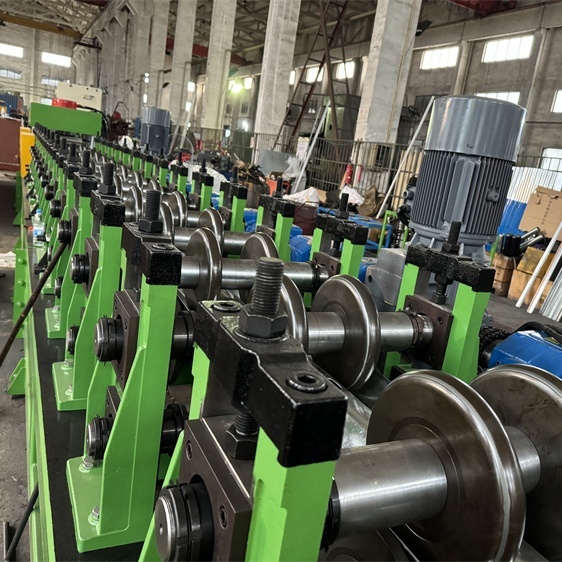

Main roll forming machine
1 set
4

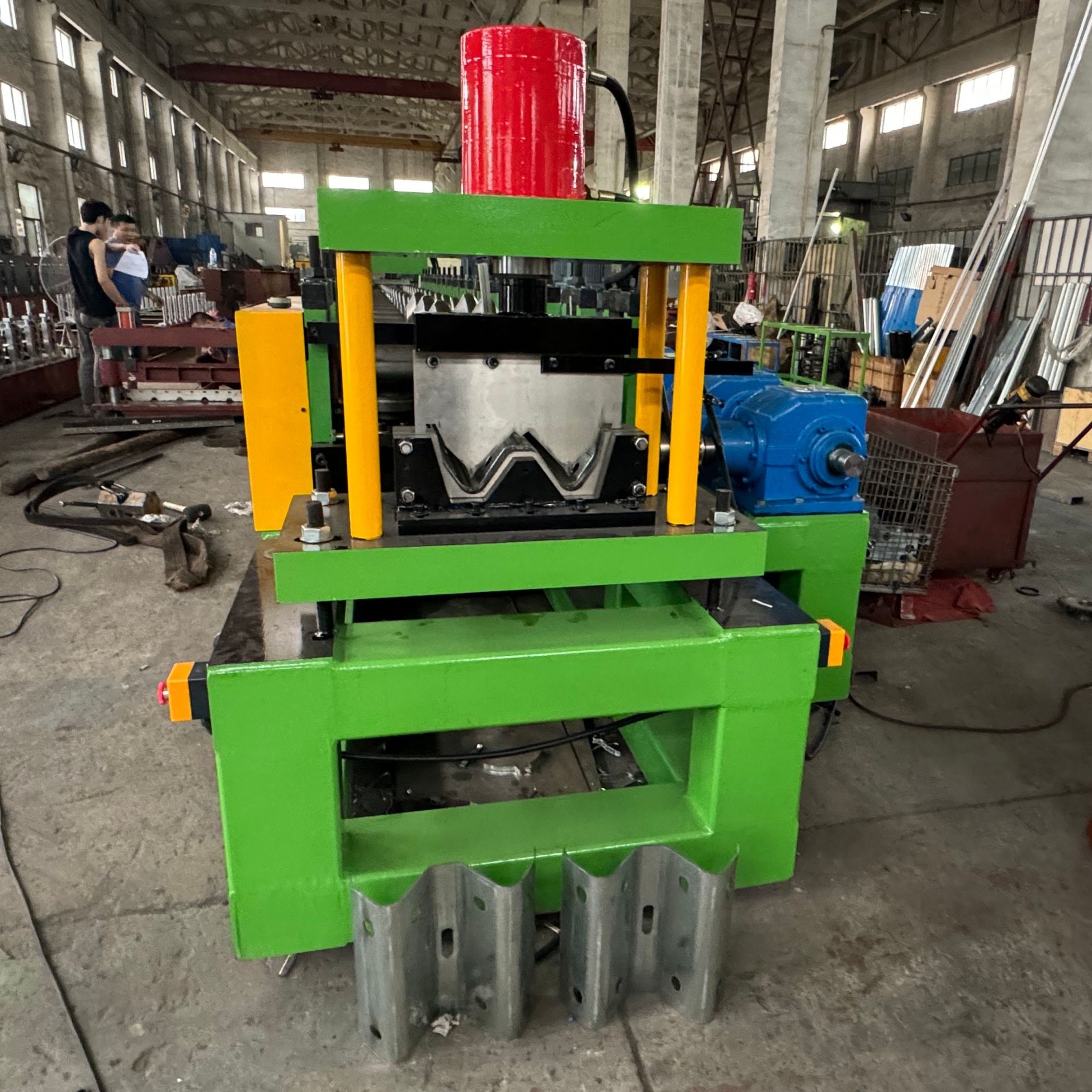

Hydraulic Cutting Device
1 unit
5
PLC Control box
1 unit
6
Hydraulic station
1 unit
7
Out tables
2 units
8
Safety cover
1 set
9
Spare parts
1 Package
Machine Specification:
1
Material Thickness
thickness 2.0 mm-3.5 mm, Galvanized steel
2
Working Speed
About 7-8 m/min
3
Forming Steps
About 15 stations
4
Material of Roller
GCR15 quenched 58°-62°,chromed
5

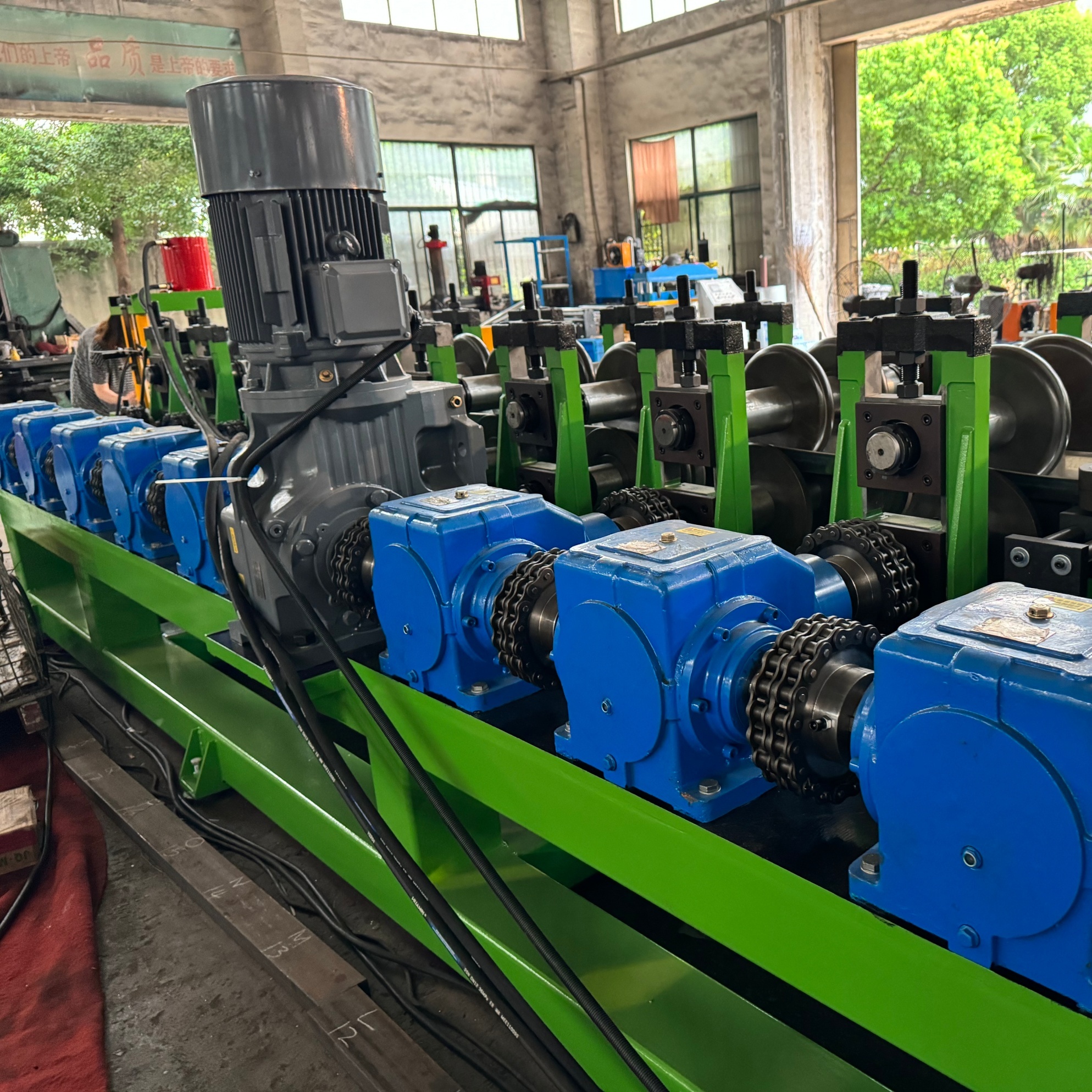

Driven system
Gear box
6
Main motor power
22 KW
7
Cutting type
Hydraulic cutting
8
Material of cutting
CR12 with quench treatment
9
Electronic control
PLC control
USA Galvanized Steel W-Beam Two Waves Highway Guard Rail Roll Forming Machine Highways Urban Road & Road Safety Crash Barrier
USA Galvanized Steel W-Beam Two Waves Highway Guard Rail Roll Forming Machine Highways Urban Road & Road Safety Crash Barrier

Wide Application Scenarios
