Specifications
Delivery Time :
75days
Main motor power :
5.5 KW
Certification :
CE ISO 9001
Packaging Details :
Standard Packing with steel wire fixed and film coated
Place of Origin :
China
Cutting type :
Hydraulic cutting
Price :
negotation
Working Speed :
About 0-12m/min
Brand Name :
sussman
Hydraulic Station Power :
4 KW
Model Number :
Omega Hat Roof Batten Furring Channel Roll Forming Machine
Supply Ability :
10 set per month
Forming Steps :
About 12 stations
MOQ :
1 set
Payment Terms :
L/C,D/A,D/P,T/T
Driven system :
By chain
Material Thickness :
0.4-1.0mm Galvanized steel
Description

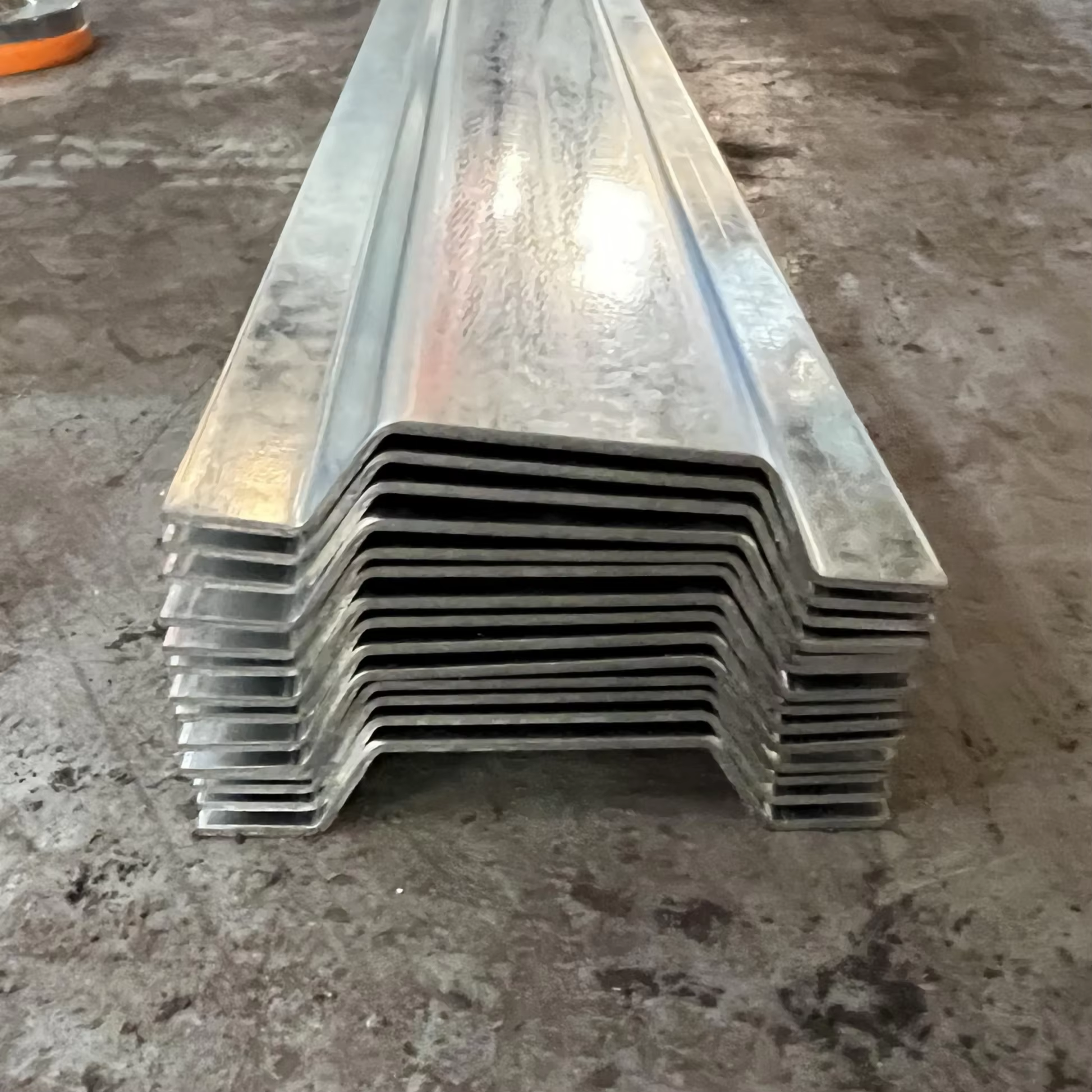

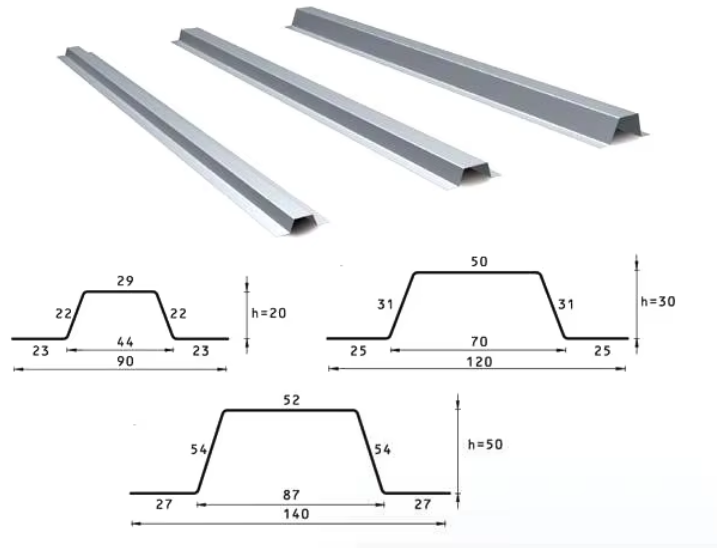

This fully‑automatic Omega Hat Roof Batten Furring Channel Roll Forming Machine is specially designed to produce high‑quality omega‑shaped furring battens from 0.4‑1.0 mm thick galvanized steel. The finished omega hat channels are widely used as roof battens, ceiling purlins and support frames for residential houses, commercial buildings, warehouse roofing systems and interior ceiling framing projects.

Machine List:

S.N
Equipment name
Quantity
1
3 ton passive decoiler
1 set
2
Main roll forming machine
1 set
3
Hydraulic Cutting Device
1 unit
4
PLC Control box
1 unit
5
Hydraulic station
1 unit
6
Out tables
2 units
7
Safety cover
1 set
8
Spare parts
1 Package
Machine Specification:
1
Material Thickness
thickness 0.4-1.0mm Galvanized steel
2
Working Speed
About 0-12m/min
3
Forming Steps
About 12 stations
4
Material of Roller
Gcr15 Steel with quenching
5
Driven system
By chain
6
Main motor power
5.5 kw
7
Cutting type
Hydraulic cutting
8
Material of cutting
CR12 with quench treatment
9
Electronic control
PLC control
10
Hydraulic Station Power
4 kw

0.4-1.0 mm Reinforcement Rib Omega Hat Roof Batten Furring Channel Roll Forming Machine Roofing Ceiling Support Construction

0.4-1.0 mm Reinforcement Rib Omega Hat Roof Batten Furring Channel Roll Forming Machine Roofing Ceiling Support Construction

Wide Application Scenarios

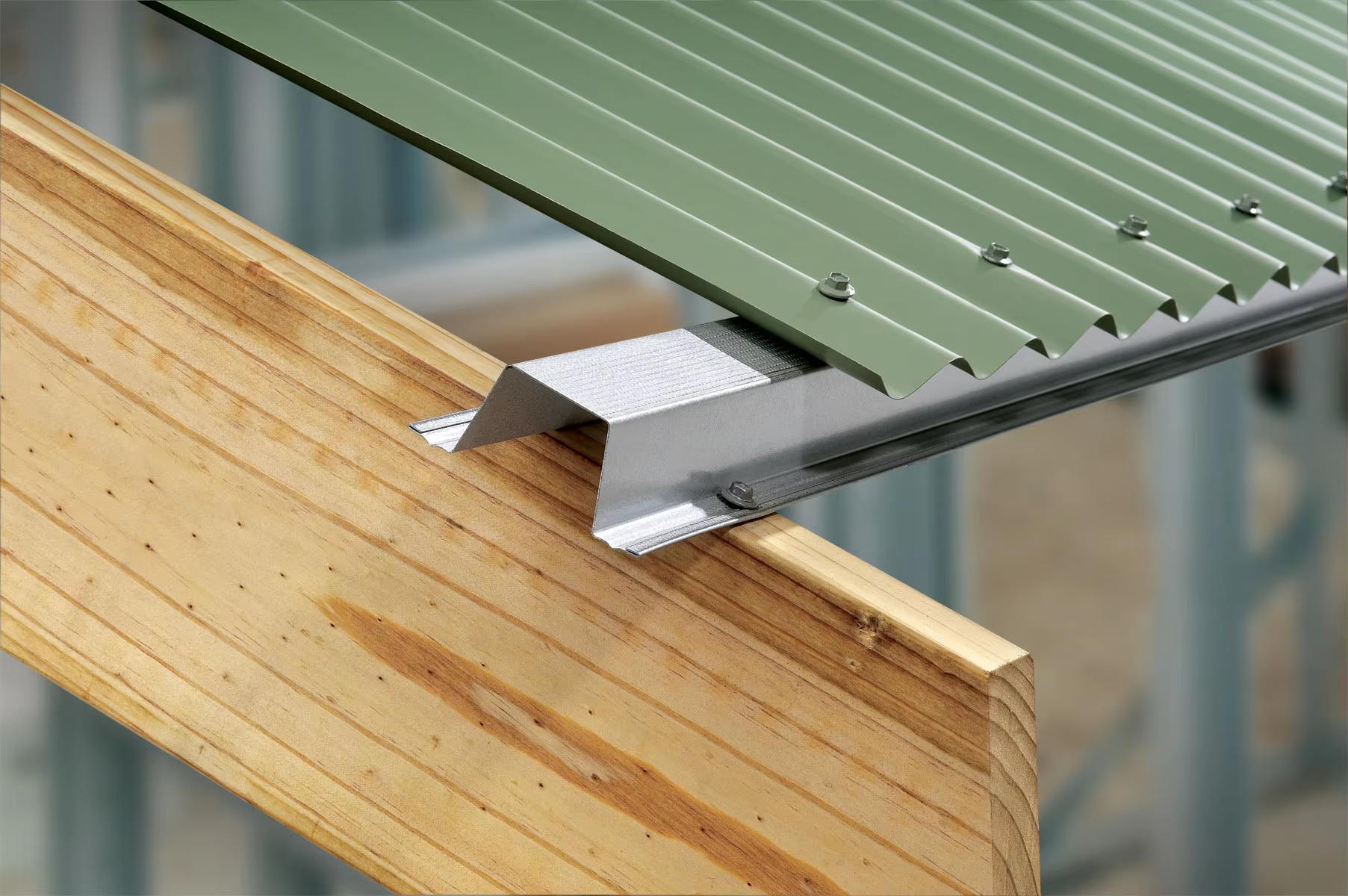

1. Residential Roof Support System
Manufacture omega hat battens as underlying support for residential sloped‑roof panels, fixing roof sheets firmly.

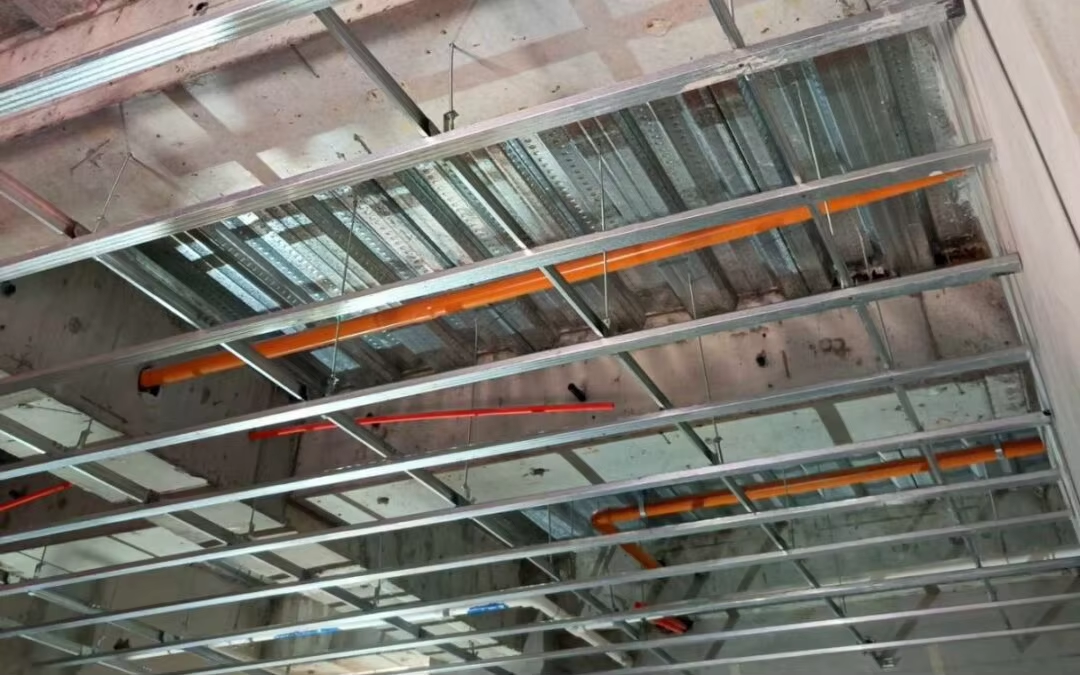

2. Commercial Building Ceiling Framing
Produce furring channels for suspended ceilings in offices, shopping malls and public facilities.

3. Warehouse & Workshop Roof Purlin
Supply light‑weight roof battens for steel‑structure warehouses, factory workshops and industrial plants.

4. Prefabricated House Construction
Omega profiles used as secondary framing components for prefab homes, modular housing projects.

5. Renovation & Interior Decoration
Light ceiling batten material for old‑building renovation, indoor partition and decoration projects.

Solution Advantages
1. Comprehensive After-sales Service
We promptly handle all equipment issues for customers. Remote technical guidance is available, and professional technicians can be dispatched for on-site commissioning to deliver satisfying service.


2. On-time Delivery Guarantee
Reasonable production schedules are formulated to arrange manufacturing orderly. We strictly control progress to ensure goods delivery as scheduled.


3. Complete Spare Parts Supply
Original matching accessories are fully provided, facilitating daily replacement and maintenance to keep machines running steadily.


4. Strict Quality Inspection
All products undergo multi-standard testing before delivery. Every detail is checked rigorously to guarantee reliable overall equipment quality.
