Newest Design GI Colored Steel Electric Driven Portable KR18 Standing Seam Roll Forming Machine In Stock For Sale
Newest Design GI Colored Steel Electric Driven Portable KR18 Standing Seam Roll Forming Machine In Stock For Sale
Newest Design GI Colored Steel Electric Driven Portable KR18 Standing Seam Roll Forming Machine In Stock For Sale
Newest Design GI Colored Steel Electric Driven Portable KR18 Standing Seam Roll Forming Machine In Stock For Sale
Newest Design GI Colored Steel Electric Driven Portable KR18 Standing Seam Roll Forming Machine In Stock For Sale
Newest Design GI Colored Steel Electric Driven Portable KR18 Standing Seam Roll Forming Machine In Stock For Sale
Newest Design GI Colored Steel Electric Driven Portable KR18 Standing Seam Roll Forming Machine In Stock For Sale
Newest Design GI Colored Steel Electric Driven Portable KR18 Standing Seam Roll Forming Machine In Stock For Sale
Newest Design GI Colored Steel Electric Driven Portable KR18 Standing Seam Roll Forming Machine In Stock For Sale
Newest Design GI Colored Steel Electric Driven Portable KR18 Standing Seam Roll Forming Machine In Stock For Sale
Specifications
Model Number :
SSM-KR18
Roller stations :
8 stations
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10 set per month
MOQ :
1 set
Delivery Time :
45 days
Way of driven :
Chain drive
Packaging Details :
Standard Packing with steel wire fixed and film coated
Price :
negotation
Cutting type :
Hydraulic Cutting
Brand Name :
Sussman
Material :
Colored steel,Galvanized steel
Certification :
CE ISO 9001
Roller speed :
0-12m/min
Place of Origin :
Jiangsu,Chain
Driven system :
ELectric
Description

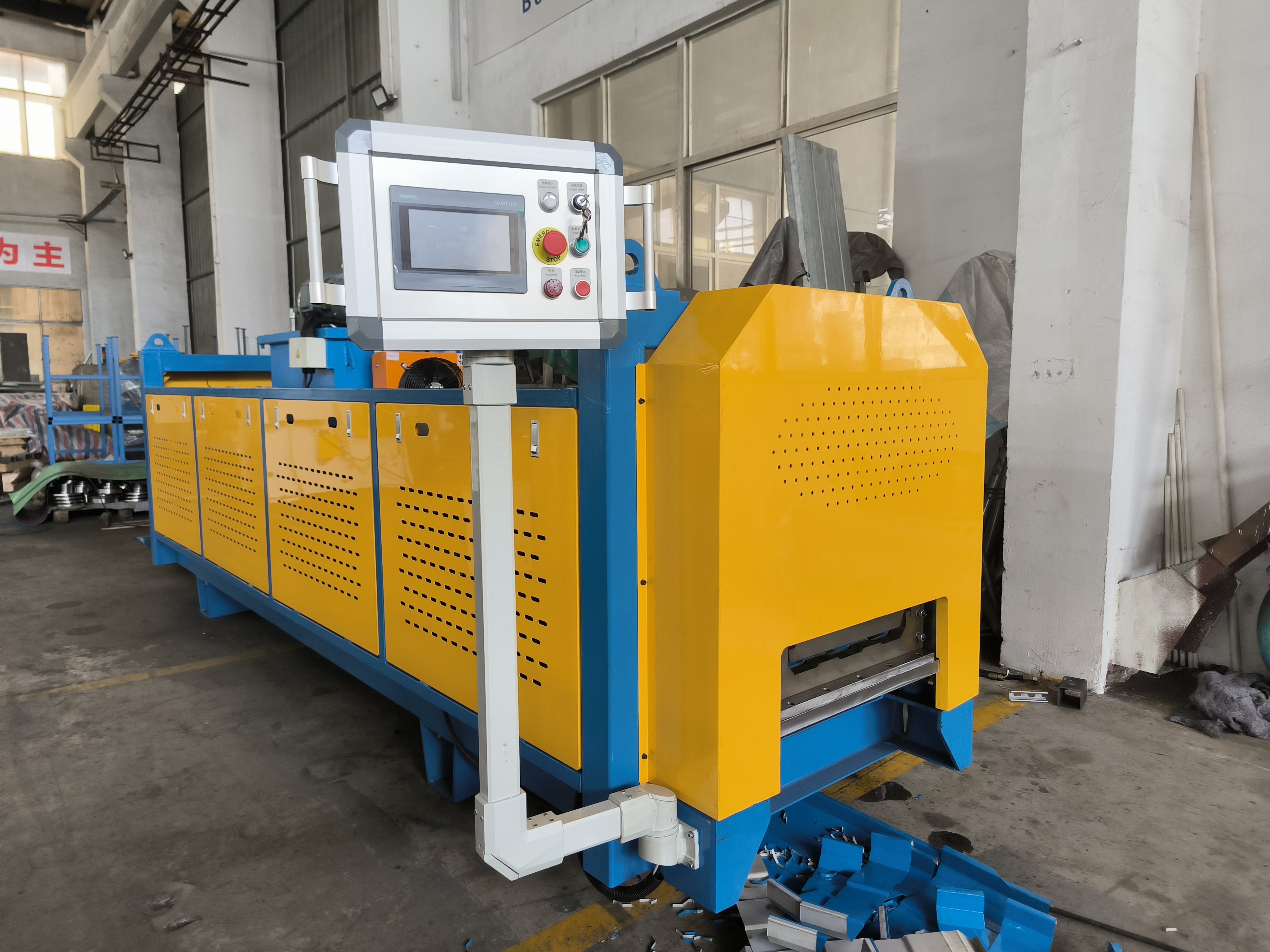

ELectric Driven Portable KR18 Standing Seam Roll Forming Machine In Stock

Newest Design GI Colored Steel Electric Driven Portable KR18 Standing Seam Roll Forming Machine In Stock For Sale

1. KR18 Standing Seam Roof Panel Roll Forming Machine Technical Parameter

1 Suitable to process Color steel and galvanized steel
2 Width of the plate As profile
3 Thickness of the plate 0.3-0.8mm
4 De-coiler Passive one, can load 5 tons raw material
5 Rollers for forming About 8 rollers
6 Diameter of the roller Φ60 mm
7 Rolling material High Grade Steel 45#
9 Productivity About 8-12m/min
10 Cutting method Hydraulic cutting
11 Material of the cutting blade Cr12Mov
12 Main power 7.5KW
13 Voltage 220V 60Hz 3Phases
14 Hydraulic cutting power 4kw
15 Processing precision +-1.50mm
16 Control system Siemems PLC control
17 Main structure of the machine 350 H steel
18 Weight About 2.8 T
19 Dimensions 4.5*0.95*1.1m
20 Energy Electric

2.Portable KR18 Standing Seam Roof Panel Machine’s Components

Item Components Name Quantity
1 5T Passive Decoiler 1 set
2 Roll Forming Machine 1 set
3 Hydraulic Station 1 set
4 PLC Control Cabinet 1 set
5 Cutting Blade 1 set
6 Out Table 1 set
7 Safety Cover 1 pc
8

Seamer machine

1 set
9 Other Spare Parts 1 set

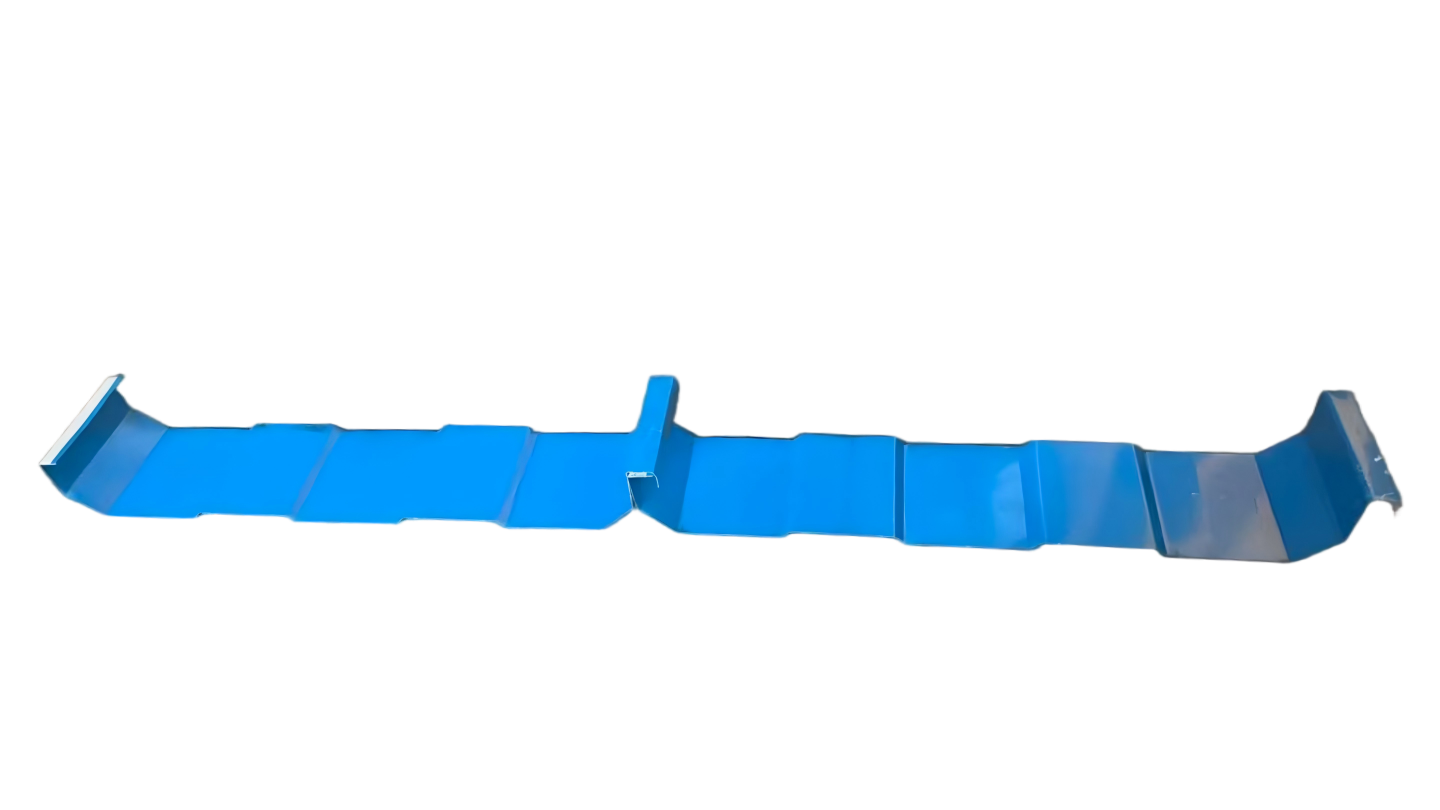

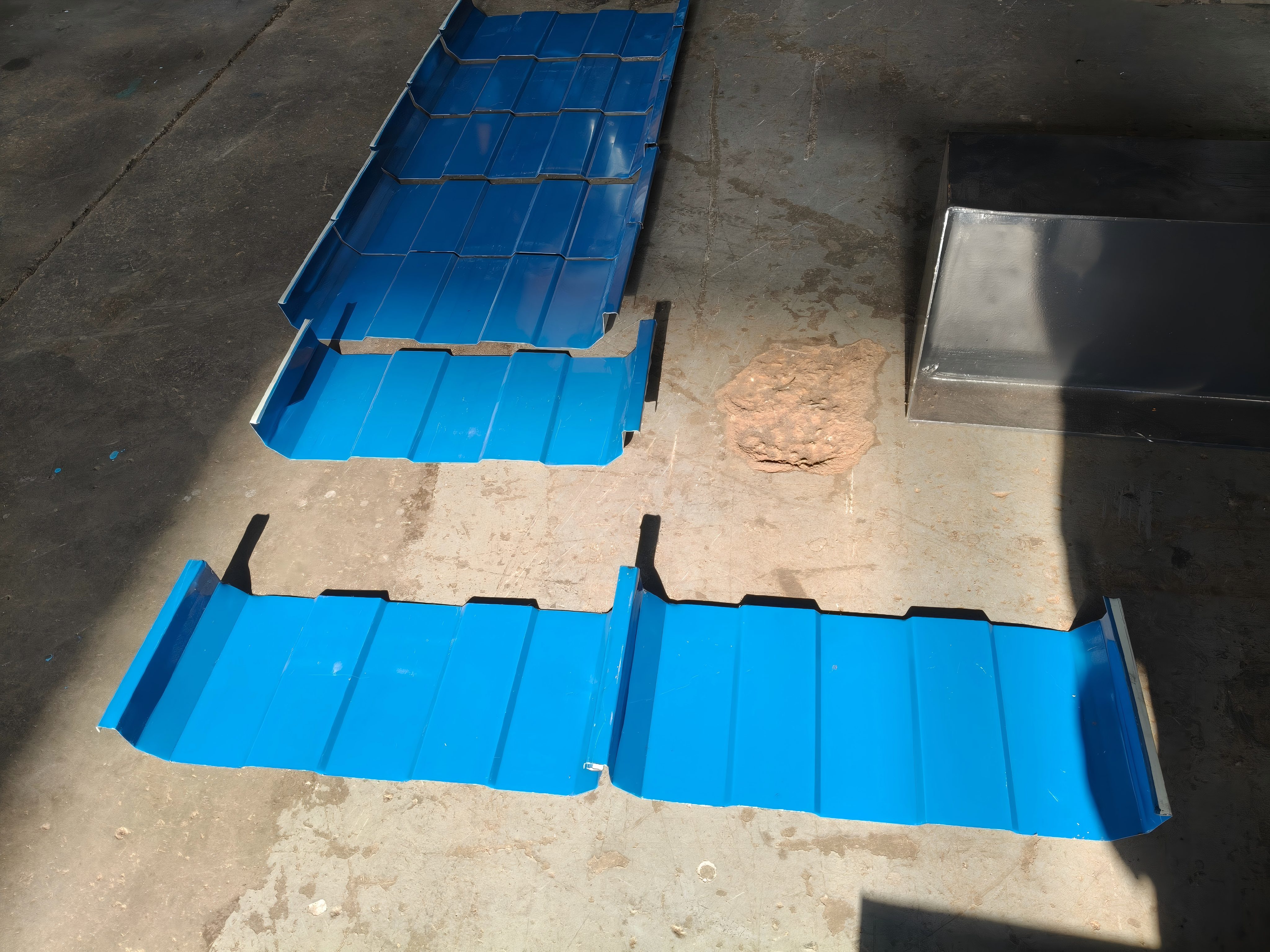

3. KR 18 Standing Seam Roof Panel Profile drawing & Samples

Newest Design GI Colored Steel Electric Driven Portable KR18 Standing Seam Roll Forming Machine In Stock For Sale

Newest Design GI Colored Steel Electric Driven Portable KR18 Standing Seam Roll Forming Machine In Stock For Sale

Newest Design GI Colored Steel Electric Driven Portable KR18 Standing Seam Roll Forming Machine In Stock For Sale

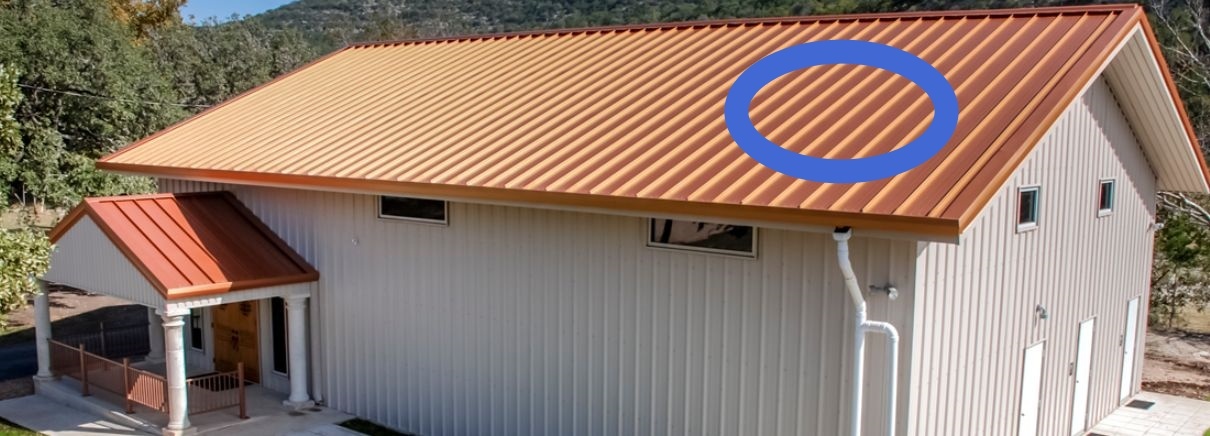

4.Application

KR18 roof panel is a type of standing seam metal roof panel known for its durability and water resistance, produced by a machine with the same name. These panels feature a 2.5-inch high ribbed profile and a concealed-fastener system that interlocks, which reduces the risk of leaks by eliminating the need to drill through the panel itself. KR18 panels are commonly used for large commercial structures like warehouses and shopping malls. Additionally, the sheet is ideal for roofs with very low slopes and can also be used as a vertical cladding due to its versatility. It was designed to withstand snow and is completely sealed, making it unbeatable against water, smoke, or dust infiltration.

1.Commercial buildings, including offices, retail centers, and self-storage facilities.
2.Municipal, civic, and institutional structures.
3.Industrial buildings requiring long-term durability and low maintenance.
4.Residential projects seeking a modern appearance and long service life.
5.Educational and healthcare facilities.
6.Low-slope roofs requiring mechanically seamed joints.
7.Recover and retrofit projects focused on minimizing tear-off and improving performance.
Newest Design GI Colored Steel Electric Driven Portable KR18 Standing Seam Roll Forming Machine In Stock For Sale

Newest Design GI Colored Steel Electric Driven Portable KR18 Standing Seam Roll Forming Machine In Stock For Sale

Newest Design GI Colored Steel Electric Driven Portable KR18 Standing Seam Roll Forming Machine In Stock For SaleNewest Design GI Colored Steel Electric Driven Portable KR18 Standing Seam Roll Forming Machine In Stock For Sale
