0.3-0.8 mm Roofing Sheets Africa Economic Glazed Tile Roll Forming Machine Villa Warehouse Factory Building Roof Panel
0.3-0.8 mm Roofing Sheets Africa Economic Glazed Tile Roll Forming Machine Villa Warehouse Factory Building Roof Panel
0.3-0.8 mm Roofing Sheets Africa Economic Glazed Tile Roll Forming Machine Villa Warehouse Factory Building Roof Panel
0.3-0.8 mm Roofing Sheets Africa Economic Glazed Tile Roll Forming Machine Villa Warehouse Factory Building Roof Panel
0.3-0.8 mm Roofing Sheets Africa Economic Glazed Tile Roll Forming Machine Villa Warehouse Factory Building Roof Panel
0.3-0.8 mm Roofing Sheets Africa Economic Glazed Tile Roll Forming Machine Villa Warehouse Factory Building Roof Panel
0.3-0.8 mm Roofing Sheets Africa Economic Glazed Tile Roll Forming Machine Villa Warehouse Factory Building Roof Panel
0.3-0.8 mm Roofing Sheets Africa Economic Glazed Tile Roll Forming Machine Villa Warehouse Factory Building Roof Panel
0.3-0.8 mm Roofing Sheets Africa Economic Glazed Tile Roll Forming Machine Villa Warehouse Factory Building Roof Panel
0.3-0.8 mm Roofing Sheets Africa Economic Glazed Tile Roll Forming Machine Villa Warehouse Factory Building Roof Panel
0.3-0.8 mm Roofing Sheets Africa Economic Glazed Tile Roll Forming Machine Villa Warehouse Factory Building Roof Panel
0.3-0.8 mm Roofing Sheets Africa Economic Glazed Tile Roll Forming Machine Villa Warehouse Factory Building Roof Panel
Specifications
MOQ :
1 set
Delivery Time :
75days
Main motor power :
7.5 KW
Price :
negotation
Cutting type :
Hydraulic cutting
Model Number :
Glazed Tile Roll Forming Machine
Working Speed :
About 5-6 m/min
Packaging Details :
Standard Packing with steel wire fixed and film coated
Payment Terms :
L/C,D/A,D/P,T/T
Hydraulic Station Power :
5.5 KW
Supply Ability :
10 set per month
Brand Name :
sussman
Material Thickness :
0.3-0.8mm PPGI, Galvanized sheet
Certification :
CE ISO 9001
Forming Steps :
About 16 stations
Place of Origin :
China
Driven system :
Chain driven
Description

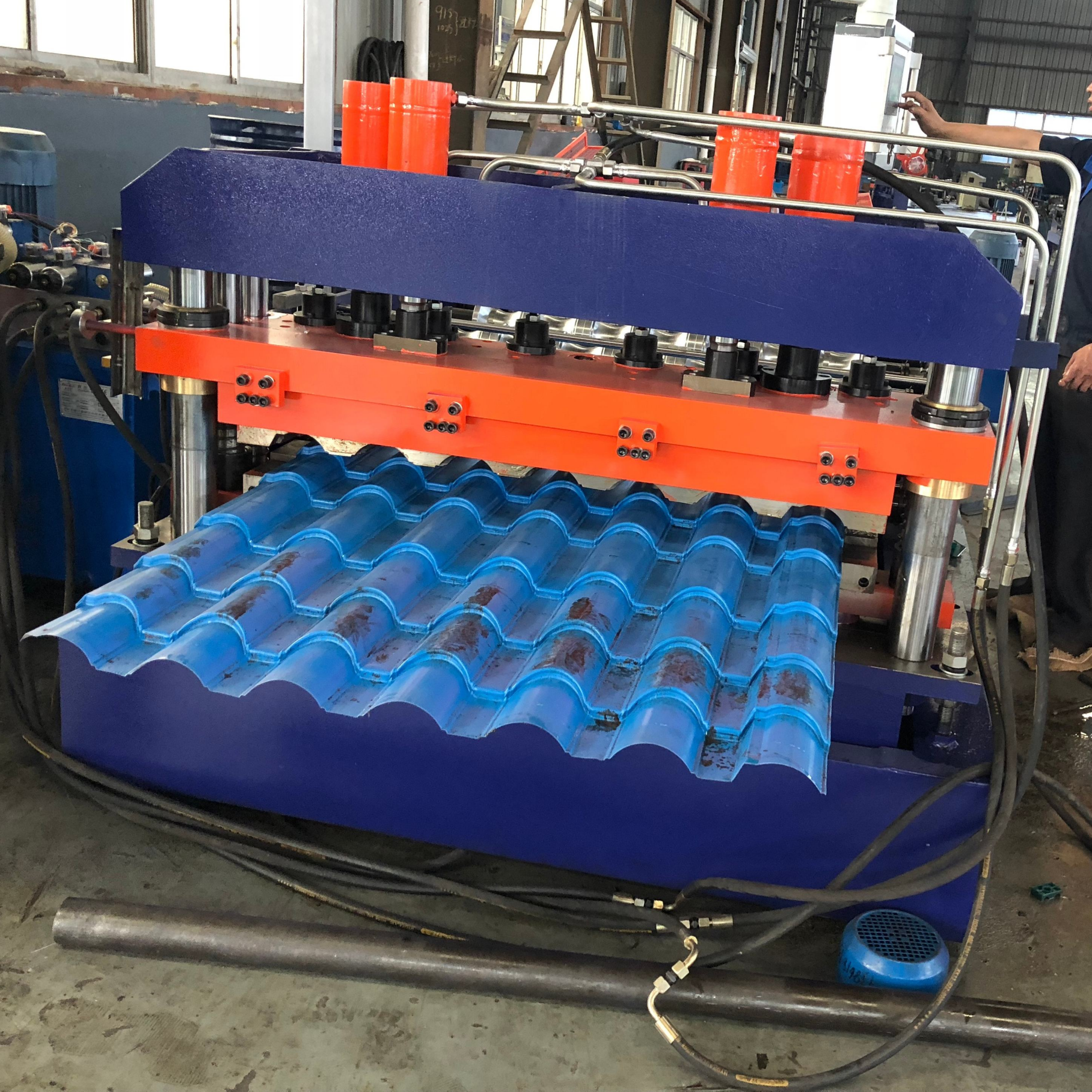

This economic glazed tile roll forming machine is designed to process PPGI and galvanized sheet with material thickness from 0.3mm to 0.8mm.

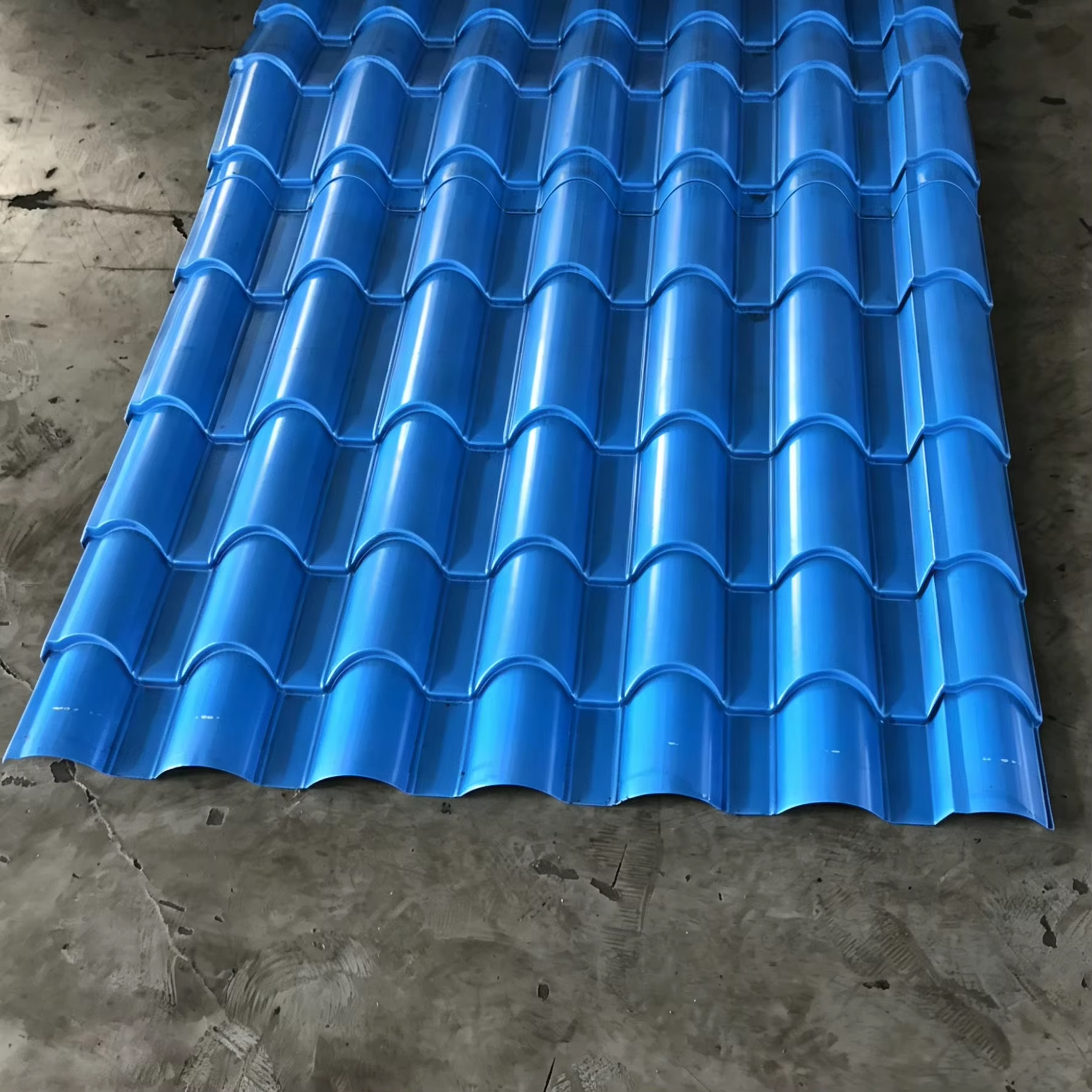

Finished glazed roof tiles feature stable structure, nice surface appearance and excellent anti‑corrosion performance, which are widely used for residential houses, villas, warehouses, workshops and farm buildings roofing projects in Africa.

With reasonable cost‑effective design, the equipment runs stably and easy for operation and maintenance, it is an ideal production solution for local roofing sheet manufacturers.
Machine List:
S.N
Equipment name
Quantity
1
5 ton passive decoiler
1 set
2
Main roll forming machine
1 set
3
Hydraulic pressing and cutting device
1 unit
4
PLC Control box
1 unit
5
Hydraulic station
1 unit
6
Out tables
2 units
7
Safety cover
1 set
8
Spare parts
1 Package

Machine Specification:

1
Material Thickness
thickness 0.3-0.8mm PPGI, Galvanized sheet
2
Working Speed
About 5-6 m/min
3
Forming Steps
About 16 stations
4
Material of Roller
45#forge steel
5
Driven system
Chain driven
6
Main motor power
7.5 KW
7
Cutting type
Hydraulic cutting
8
Material of cutting
Cr12Mov
9
Electronic control
PLC control
10
Hydraulic Station Power
5.5 KW

0.3-0.8 mm Roofing Sheets Africa Economic Glazed Tile Roll Forming Machine Villa Warehouse Factory Building Roof Panel

0.3-0.8 mm Roofing Sheets Africa Economic Glazed Tile Roll Forming Machine Villa Warehouse Factory Building Roof Panel


Wide Application Scenarios

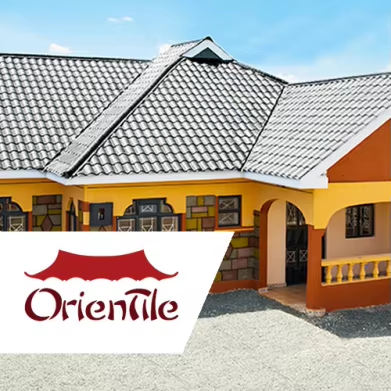

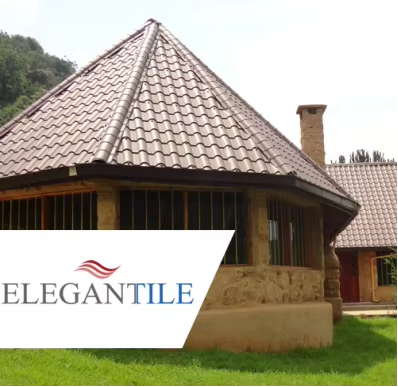

1. Residential Housing Roofing
Produce glazed tiles for family houses, rural dwellings and self‑built homes in Africa.

2. Villa & High‑end Residence Roof
Beautiful glazed roof panels for villas and decorative residential rooftops.

3. Warehouse & Factory Workshop Roof
Long‑life roofing sheets for industrial warehouses, plants and production workshops.

4. Farm & Agricultural Building Roof
Roof tiles for barns, farm sheds and other agricultural constructions.

5. Commercial Building Roof Project
Cost‑effective roof panels for shops, markets and other commercial buildings.
Solution Advantages
1. Comprehensive After-sales Service
We promptly handle all equipment issues for customers. Remote technical guidance is available, and professional technicians can be dispatched for on-site commissioning to deliver satisfying service.

2. On-time Delivery Guarantee
Reasonable production schedules are formulated to arrange manufacturing orderly. We strictly control progress to ensure goods delivery as scheduled.

3. Complete Spare Parts Supply
Original matching accessories are fully provided, facilitating daily replacement and maintenance to keep machines running steadily.

4. Strict Quality Inspection
All products undergo multi-standard testing before delivery. Every detail is checked rigorously to guarantee reliable overall equipment quality.

5. Cost-effective On-site Matching
Fit construction demands of multiple regions, lower production cost and improve project construction efficiency.
