Specifications
Model Number :
SSM-CU63-94
Profile Sizes :
63-94mm
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Cutting System :
Hydraulic Cutting
Supply Ability :
10 set per month
Driving Mode :
1.0 Inch Chain
Machine Weight :
3.0 tons
MOQ :
1 set
Delivery Time :
75 days
Roller Diameter :
75mm
Punching :
About 2 sets of web hole and dimple
Price :
negotation
Cutting Method :
Stop cutting
Packaging Details :
Standard Packing with steel wire fixed and film coated
Cutting Blade Material :
Cr12Mov
Brand Name :
Sussman Machinery
Productionspeed :
About 0-12m/min
Certification :
CE ISO 9001
Feeding Thickness :
0.4-1.2mm
Place of Origin :
Jiangsu,China
Material :
Galvanized Coil
Description

Manually Width Adjustable CU63-94mm Stud and Track drywall Roll Forming Machine

Manually Width Adjustable CU63-94mm Stud and Track drywall Roll Forming Machine For Residential

1. CU50-200 Light Gauge Steel Frame Roll Forming Machine Technical Parameter

1 Suitable to process Galvanized steel
2 Width of the plate As customer need
3 Thickness of the plate 0.4-1.2 mm
4 De-coiler 3 tons passive decoiler
5 Rollers for forming About 12 rollers
6 Diameter of the roller Φ75mm
7 Rolling material Gcr15 Steel with quenching
8 Main motor power 7.5KW
9 Productivity About 0-12m/min
10 Cutting method Hydraulic cutting
11 Material of the cutting blade Cr12Mov
12 Hydraulic cutting power 4kw
13 Processing precision +/- 1.50mm
14 Control system PLC control
15 Main structure of the machine 350 H steel
16 Weight About 3.0 T
17 Dimensions 5.5*1.0*1.2m
18 Voltage 220V 60Hz 3phases,or according to your request

2.CU50-200 Light Gauge Steel Frame Machine’s Components

Item Components Name Quantity
1 3 tons passive decoiler 1 set
2 Roll Forming Machine 1 set
3 Punching dies 2sets
4 Hydraulic Station 1 set
5 PLC control box 1 set
6 Cutting blade 1 unit
7 Passive out table 1 unit

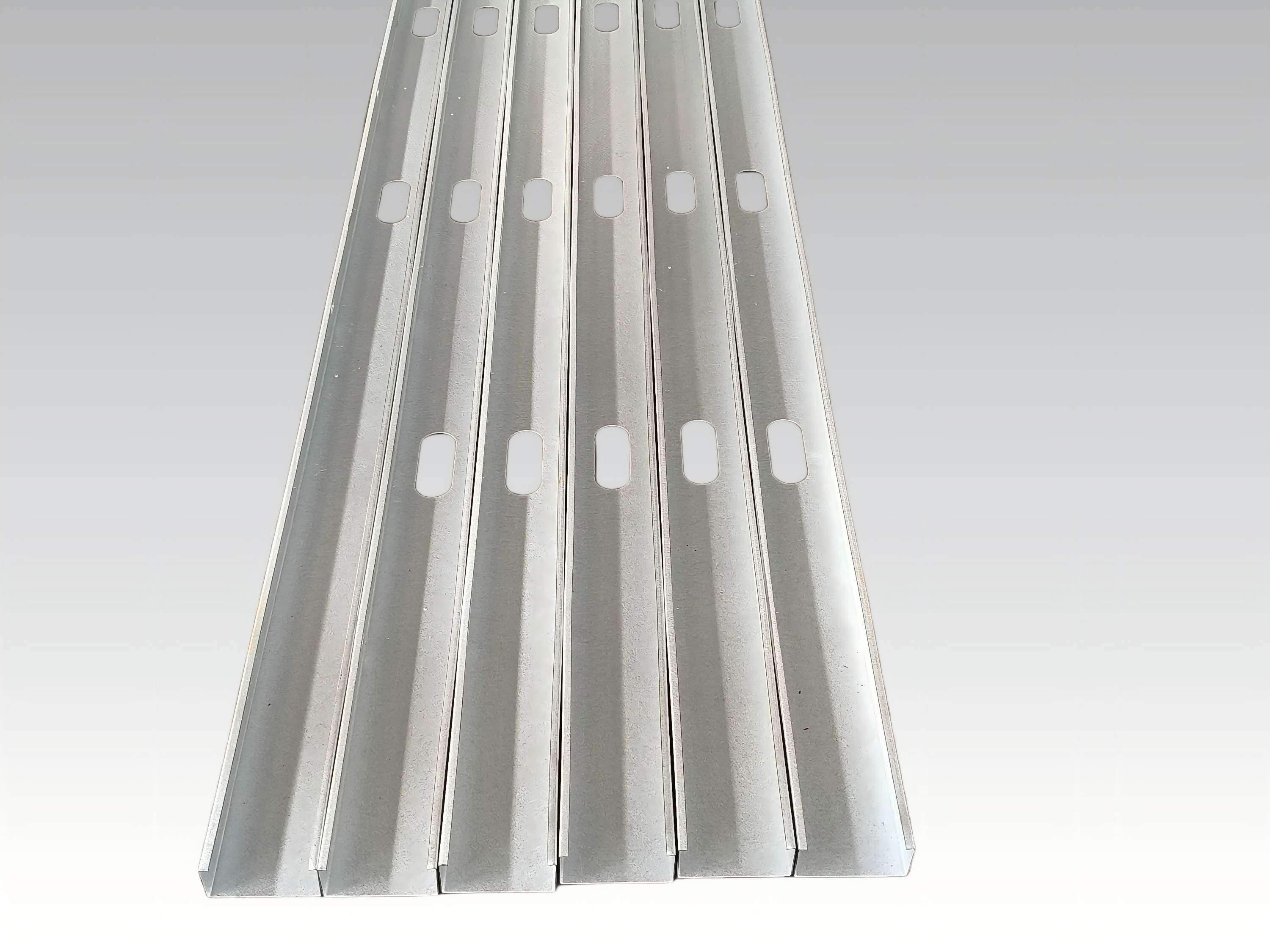

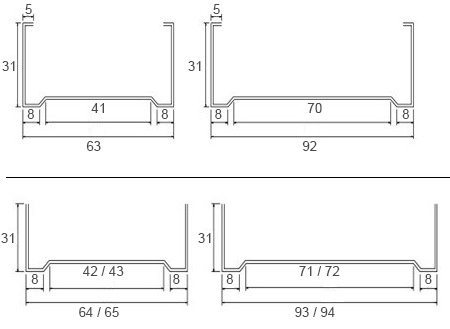

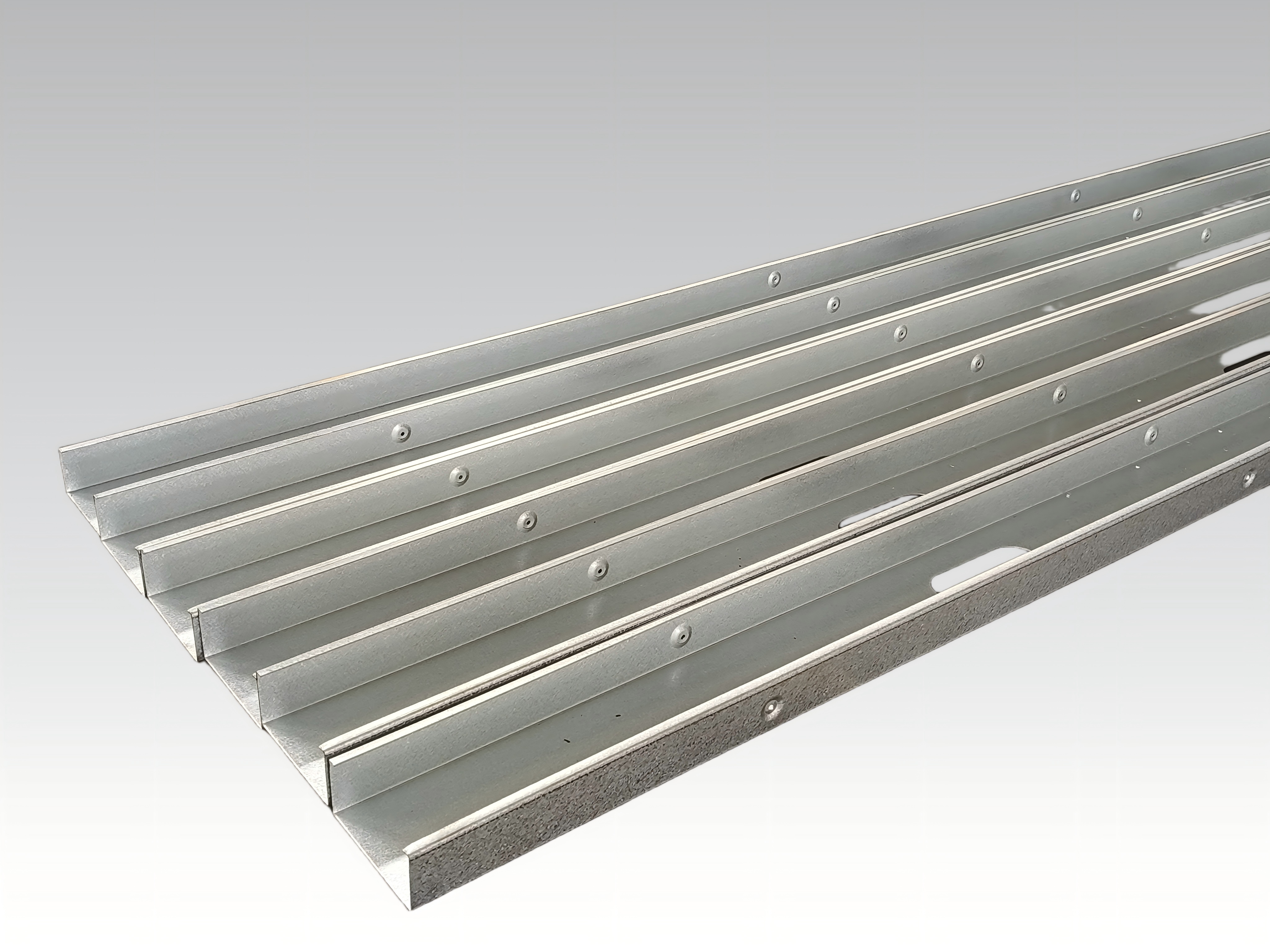

3. CU63-94 Drywall Profile Drawings&Samples
Manually Width Adjustable CU63-94mm Stud and Track drywall Roll Forming Machine For ResidentialManually Width Adjustable CU63-94mm Stud and Track drywall Roll Forming Machine For ResidentialManually Width Adjustable CU63-94mm Stud and Track drywall Roll Forming Machine For Residential
4.Appliction:
Drywall steel stud & track roll forming machine is cold roll forming equipment to produce all light steel framing profiles for
drywall partition and ceiling. It processes flat galvanized steel coil into standard C-stud, U-track, furring channel, wall angle
in one continuous process, widely used for construction material factory mass production.

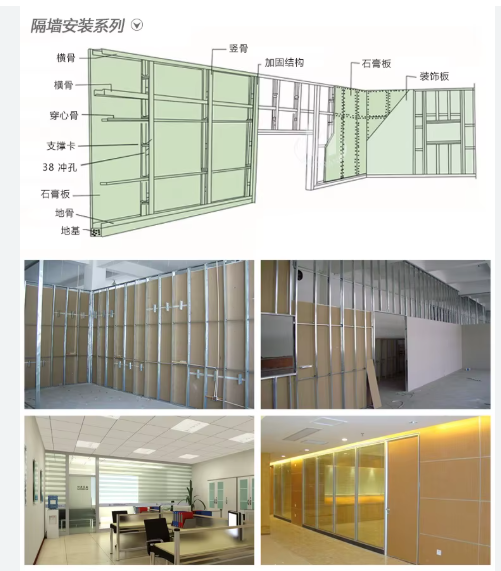

Drywall steel profiles are the standard metal framing system worldwide to build gypsum board partitions and suspended ceilings, replacing traditional wooden frames. All profiles are roll-formed from prime galvanized steel sheet with precise dimension control.
Commercial buildings: office, supermarket, hotel, hospital, school
Residential projects: apartment dividing wall, interior ceiling
Special projects: fire partition, moisture-proof washroom wall, soundproof conference room wall
