Specifications
Brand Name :
Sussman
Model Number :
RF-PU
Certification :
CE, SGS, ISO
Place of Origin :
Wuxi, China
MOQ :
1 SET
Price :
negotiable
Payment Terms :
TT
Supply Ability :
10 sets/month
Delivery Time :
50 days after deposit
Packaging Details :
Film nad steel
Type :
Beam Standing Roll Forming Machine
Raw material width :
700mm
Forming speed :
10m/min
Thickness :
0.3-0.8mm
Description

Bemo Standing Roll Forming Machine Seamer Self Lock Boltless Roof Machine

KR18 KR24 are the popular profile drawing in Mexico. The KR-24 jointed sheet is rolled with portable equipment, which facilitates its transfer and installation. Its fixing is hidden by means of clips and its longitudinal overlap can be clipped, this guarantees a low maintenance cost and great impermeability.The KR-24 sheet is of SSR type (Standing Seam Roof) ribbed and jointed on site.
The KR-24 Steel Sheet (SSR-24) has a hidden fixing system based on clips, it reduces the risk of possible leaks since it is not required to drill the sheet for its installation. The KR-24 has no limitations in its length since it is manufactured in a single piece from gutter to ridge. It also allows the installation of insulating materials. Hooked Roofs can be installed on roofs with low slopes up to 2%.

Technical Parameter


1.Passive uncoiler 5 ton
2.Main motor power:7.5KW
3.Motor power of hydraulic station:5.5KW
4.Forming station: about 20 stands
5.Main machine size:8.5 m×1.2m×1.25m
6.Forming speed: 10m/min
7.Diameter of roller shaft:¢76mm
8.Raw material width:355.6 mm
9.Roller surface coating with chrome:single face≥0.05mm
10.Forming thickness:0.3-0.8mm
11.profile according to GB/T12755-91 standards
12.material of cutting blade: Cr12
13.frequency: Delta
14. Computer (PLC)
15.computer operation board: OP320A
Standing Beam Main Components

S.N Equipment name Quantity
1. 10T hydraulic un-coiler 1 set
2. Feeding and leveling device 1 set
3.

Main roll forming machine 18 stations

 1 set
4. Hydraulic cutting 1 set
5. Control system (including control box) 1 set
6. Out tables 2 sets
7. Hydraulic station 1 set










Seamer boltless machine for the installation

Bemo Standing Roll Forming Machine Seam Self Lock Boltless Roof MachineBemo Standing Roll Forming Machine Seam Self Lock Boltless Roof Machine

Installation type:

Bemo Standing Roll Forming Machine Seam Self Lock Boltless Roof Machine

Advantage for Standing Beam
1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable




Working Flow of Standing Beam
Decoiler----Feeding and Leveling---Roll forming---Fly saw cutting---Run out tables
Bemo Standing Roll Forming Machine Seam Self Lock Boltless Roof Machine

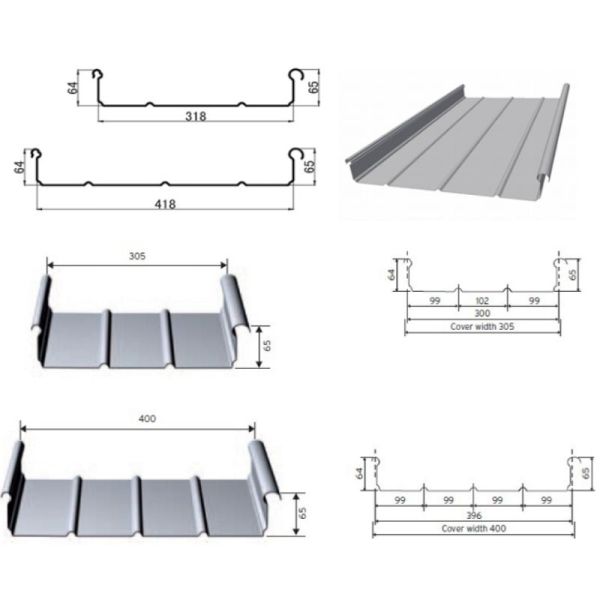

Profiles of Standing Beam

Bemo Standing Roll Forming Machine Seam Self Lock Boltless Roof Machine
Bemo Standing Roll Forming Machine Seam Self Lock Boltless Roof Machine

Customes Visiting

Bemo Standing Roll Forming Machine Seam Self Lock Boltless Roof MachineBemo Standing Roll Forming Machine Seam Self Lock Boltless Roof Machine


Loading Pic.

Bemo Standing Roll Forming Machine Seam Self Lock Boltless Roof MachineBemo Standing Roll Forming Machine Seam Self Lock Boltless Roof Machine
Bemo Standing Roll Forming Machine Seam Self Lock Boltless Roof MachineBemo Standing Roll Forming Machine Seam Self Lock Boltless Roof Machine
