40M/Min Corrugated Roof Roll Forming Machine With 0.3mm Thickness
40M/Min Corrugated Roof Roll Forming Machine With 0.3mm Thickness
40M/Min Corrugated Roof Roll Forming Machine With 0.3mm Thickness
40M/Min Corrugated Roof Roll Forming Machine With 0.3mm Thickness
40M/Min Corrugated Roof Roll Forming Machine With 0.3mm Thickness
40M/Min Corrugated Roof Roll Forming Machine With 0.3mm Thickness
40M/Min Corrugated Roof Roll Forming Machine With 0.3mm Thickness
40M/Min Corrugated Roof Roll Forming Machine With 0.3mm Thickness
40M/Min Corrugated Roof Roll Forming Machine With 0.3mm Thickness
40M/Min Corrugated Roof Roll Forming Machine With 0.3mm Thickness
Specifications
Brand Name :
Sussman
Model Number :
DL-RP-T
Certification :
ISO 9001 SGS
Place of Origin :
China
MOQ :
1
Price :
USD 30000 per set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5 sets per month
Delivery Time :
50 days
Packaging Details :
Normal packing
Material Thickness :
0.12-0.3mm
Main Motor Power :
7.5KW
Driven :
Gear Box Driven
Forming Speed :
0-40 m/min
Roller stands :
20-22 stations
Cutting :
Servo Following Cutting
Description

40 Meters/Min Corrugated Roof Roll Forming Machine With 0.12mm-0.3mm Thickness

Why the thin roof roll forming machine is hot sale?

Because it can produce more roof panels under the same weight of steel coil.

The speed of the machine is 10-12m/min, but it can also reach to 40m/min with servo following cutting.

Rolling Speed: 0-40m/min,10-12m/min
Feeding width: 1000mm
Steel sheet Thickness: 0.12-0.3mm galvanized sheet
Control System: PLC Siemens
Roller Stations: about 20-22 stations
Roller Material : 45# forge steel, coated with chrome
Shaft Material and DIA: ￠75mm,material is 45# forge steel, Chrome with quenching
Motor Power: 7.5kw main motor
Hydraulic power: 3kw
Hydraulic Pressure: 12Mpa
Tolerance: +1.5mm
Power supplier: According to Customer’s Requirements

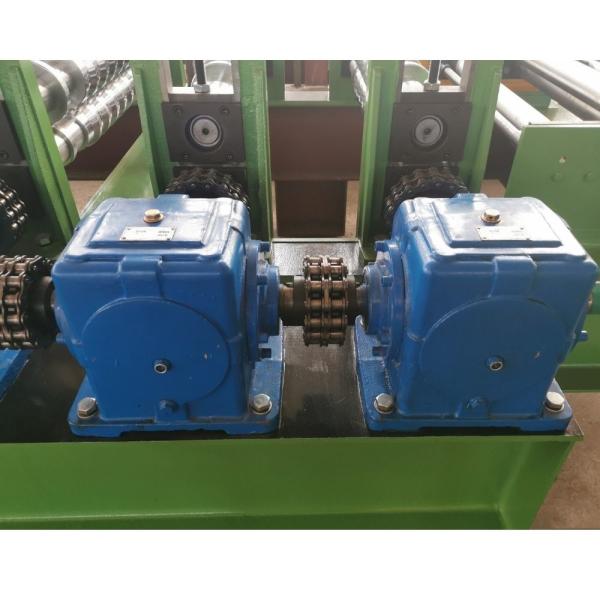

Way Of Drive:Gear Box Driven

Machine List

5 tons hydraulic de-coiler
1 set
Main roll forming machine
1 set
PLC Control box
1 unit
Hydraulic station
1 unit
Safety cover
1 set
Spare parts
1 set

Profile Drawings

40M/Min Corrugated Roof Roll Forming Machine With 0.3mm Thickness

40M/Min Corrugated Roof Roll Forming Machine With 0.3mm Thickness

Technological Process

Uncoiling—Feedingwithguide—Roll forming—Cutting—Products collecting

40M/Min Corrugated Roof Roll Forming Machine With 0.3mm Thickness

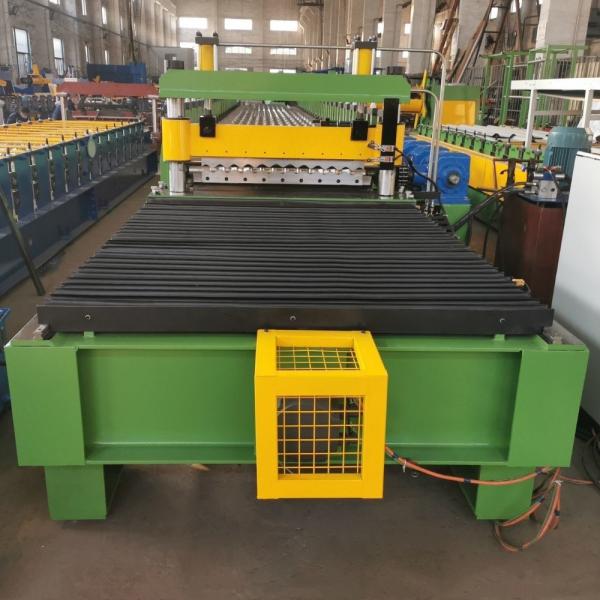

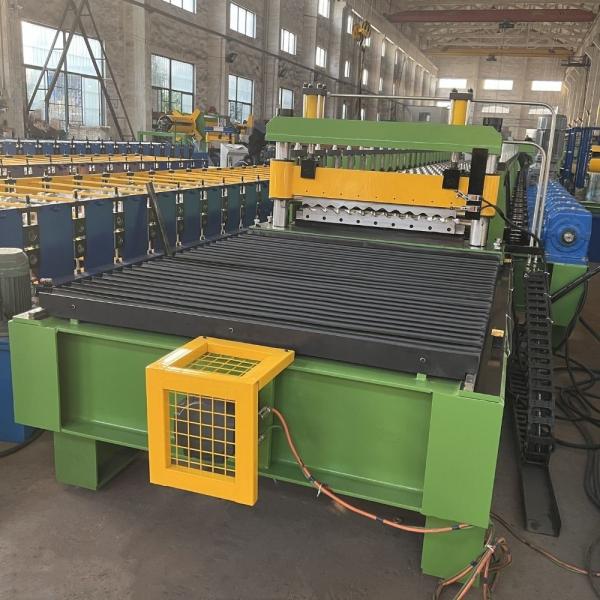

Machine Pictures

40M/Min Corrugated Roof Roll Forming Machine With 0.3mm Thickness

40M/Min Corrugated Roof Roll Forming Machine With 0.3mm Thickness

Loading Pictures:

40M/Min Corrugated Roof Roll Forming Machine With 0.3mm Thickness

40M/Min Corrugated Roof Roll Forming Machine With 0.3mm Thickness

40M/Min Corrugated Roof Roll Forming Machine With 0.3mm Thickness
