Specifications
Brand Name :
Sussman
Model Number :
SM-PM
Certification :
SGS, ISO9001, CE
Place of Origin :
Wuxi Jiangsu China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per month
Delivery Time :
60 days after deposit
Packaging Details :
Standard packing
Processing thickness :
1.0-2.0MM Galvanized steel
Forming stations :
About 11 stations
Roller material :
Gcr15 steel with quenching
Shaft diameter :
75mm
Main motor power :
18.5kw
Drives method :
Gearbox driven
Punching method :
Hydraulic pre-punching
Speed :
8-12m/min
Description

1.0-2.0mm Thickness Galvanized Steel U Post Profile Roll Forming Equipment With Slotted Holes

1. U Post Machine Technical Data

Frame system

Cast iron structure

1. Roller station:

11 stations

2. Sheet thickness:

1.5-2.0mm CR/GI G300Mpa

3. Main machine power:

7.5KW motor made in China

4. Rolling speed:

8-10m/min

5. Main shaft diameter:

70 mm.45# steel ,fine processment

6. Material of rollers:

GCr15,,HCR58-62,chromated on the roller

7. Way of drive:

chain drive 1.0inch

8. Way of cutting:

hydraulic cutting

9. Cutting blade material:

Cr12Mov HRC58-62

10. Hydraulic station power:

5.5KW

11. Cutting Length tolerance:

+/-1.0mm

12. Hydraulic pressure:

20Mpa

13. Way of control:

PLC control,Siemens,German brand

14. Yaskawa inverter control

7.5kw made in China

15. Omron/Koyo brand

encoder to measure the length

16. Touch screen,

made in China

17. Voltage requirements:

380v,50Hz 3Ph or according to the customer's requirements

18. Size of the machine:

approx 5.0m1.0 m*1.2m

2. C post machine main components

Decoiler→Feeding material into machine →punching device→Roll forming machine →Hydraulic cutting →Finished Products

Machine name Quantity
2 Tons automatic uncoiler 1 set
Main roll forming machine 1 set
Hydrualic punching device 1 set
Hydraulic cutting system 1 set
4 meters out tables 1 ste
PLC control box system 1 set
Tool box 1 package

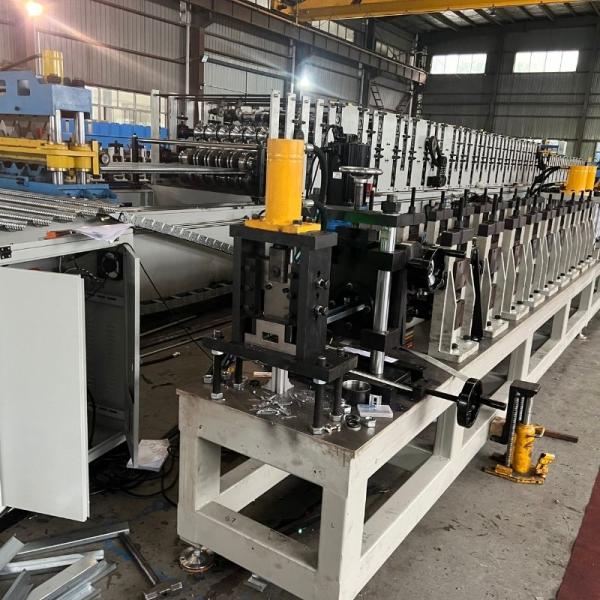

3. U Post Photo

1.0mm U Post Profile Roll Forming Equipment Gcr15 Steel Hydraulic Pre Punching

1.0mm U Post Profile Roll Forming Equipment Gcr15 Steel Hydraulic Pre Punching

4. U Post Machine More details

The C post roll forming line includes automatic decoiler, hydraulic punching, roll forming system, cutting equipment, hydraulic station, electric controlling system and supporter for finished products.

This line adopts PLC control, AC frequency and speed adjusting technology to realize continuous production automatically.

1.0mm U Post Profile Roll Forming Equipment Gcr15 Steel Hydraulic Pre Punching
