Hydraulic Cutting K Style Long Span Roll Forming Equipment For Warehouse
Hydraulic Cutting K Style Long Span Roll Forming Equipment For Warehouse
Hydraulic Cutting K Style Long Span Roll Forming Equipment For Warehouse
Hydraulic Cutting K Style Long Span Roll Forming Equipment For Warehouse
Hydraulic Cutting K Style Long Span Roll Forming Equipment For Warehouse
Hydraulic Cutting K Style Long Span Roll Forming Equipment For Warehouse
Hydraulic Cutting K Style Long Span Roll Forming Equipment For Warehouse
Hydraulic Cutting K Style Long Span Roll Forming Equipment For Warehouse
Hydraulic Cutting K Style Long Span Roll Forming Equipment For Warehouse
Hydraulic Cutting K Style Long Span Roll Forming Equipment For Warehouse
Specifications
Brand Name :
Sussman
Model Number :
SS-KS
Certification :
CE, SGS, ISO
Place of Origin :
Wuxi, China
MOQ :
1 set
Price :
USD30000-36000 PER SET
Supply Ability :
5 SETS PER MONTH
Delivery Time :
50 days after deposit
Packaging Details :
Film and steel
Material :
0.8-1.5mm
Roller stands :
about 13 stands
Roller material :
45# steel, quenched HRC 58-62
Specification :
K Span Roll Forming Machine
Control system :
PLC(BUTTON STYLE)
Cutting mode :
Hydraulic cutting
Cutting blade :
Cr12 Mov
Size :
8900*2250*2300mm
Weight :
about 8 T
Tolerance :
1mm
Description

Hydraulic Cutting K Style Long Span Roll Forming Machine For Warehouse


Technical Data

Size: 8900mm × 2250mm × 2300mm
Total Weight: about 8 T
Roller station 13 steps

Total Motor Power

(15 KW)

 Forming 5.5 kw
Bending 4.0 kw
Cutting 4.0 kw
Seaming 1.5 kw
Working speed Forming 15m/min
Bending 13m/min
Seaming 6 m/min
Cutting blade Cr12 Mov
Cutting mode Hydraulic
Material of rollers: 45# steel, quenched HRC 58-62
Material of shaft 45# steel, quenched HRC 58-62
Controlling PLC (button style)
Power supply 220V / 60 HZ / 3 PHASES

Technological process

Uncoiling—Feeding&Leveling ---Roll forming—Cutting—Products collecting
Hydraulic Cutting K Style Long Span Roll Forming Equipment For Warehouse


Machine Components

Name Usage Qty

De-coiler

(core shaft and cradle)

 Hold and feed the coils 1
Seaming machine Assembling the sheets 1
Straight sheets cradle Plate supporter 8
Arch sheets cradle Plate supporter 8

Straight sheets

side Cradle

 Plate supporter 8
Suspender Lifting arching sheet roof 1
Clamp Bait sheets 8
Hanger Lifting arching sheet roof 8
Manual Super pliers Bait sheets 1
VCD Teach customers how to produce 1
Driving chains To roll the gears 3 M
Chain half section As spare 5
Chain whole section As spare 3
Instruction book To guide you how to use the machine 1

Manual calculator

(electric sensing equipment)

 Measure the length by hand 1
Hand crank To rise and fall the machine 2

Polish wax

 Maintenance 1


Details of Each Composition

  • De-coiler

15 ton hydraulic decoiler with coil car

  • Hydraulic Cutting

(1) Cutting motion: stop cutting
(2) Material of blade: CR12mov with heat treatment
(3) Length measuring: Automatic length measuring
(4) Tolerance of length: +/- 1.5mm

  • Control Box: Panasonic Brand

(1)power supply: 415V, 50Hz, 3Phase
(2)automatic length measurement
(3)automatic quantity measurement
(4)computer used to control length & quantity.Machine will automatically cut to length and stop then required quantity is achieved
(5)length inaccuracy can be amended easily
(6)control panel : button type switch and touch screen
(7)unit of length: millimeter (switched on the control panel)

  • Out table

It adopts welded steel and supported roller to transmit the products.
Size: 2000*1000*1000mm, 2 pieces

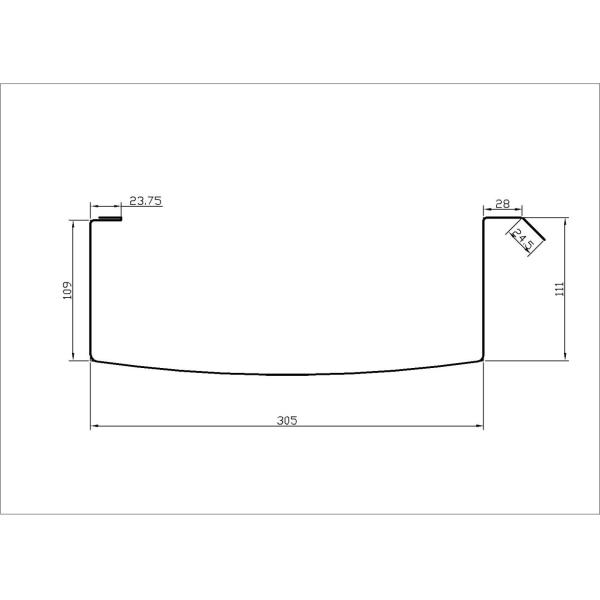

Profile
Hydraulic Cutting K Style Long Span Roll Forming Equipment For Warehouse
