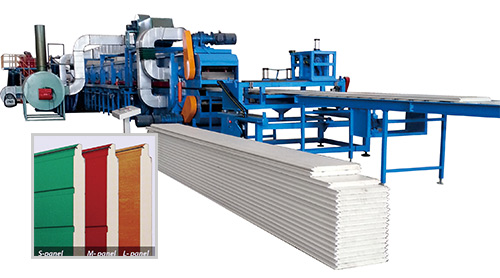

50mm Thickness 50Kg/M3 PU Sandwich Panel Production Line
50mm Thickness 50Kg/M3 PU Sandwich Panel Production Line
50mm Thickness 50Kg/M3 PU Sandwich Panel Production Line
50mm Thickness 50Kg/M3 PU Sandwich Panel Production Line
50mm Thickness 50Kg/M3 PU Sandwich Panel Production Line
50mm Thickness 50Kg/M3 PU Sandwich Panel Production Line
50mm Thickness 50Kg/M3 PU Sandwich Panel Production Line
50mm Thickness 50Kg/M3 PU Sandwich Panel Production Line
Specifications
Brand Name :
SUSSMAN
Model Number :
SM-PUGD
Certification :
CE
Place of Origin :
Wuxi Jiangsu China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T L/C, Western Union
Supply Ability :
10 sets per months
Delivery Time :
90-120 days after deposit
Packaging Details :
Standard packing
PU density :
35-50 Kg/ M3
Thickness :
0.3-0.5mm
Length :
12m
Width of sheet :
1250mm
Width Adjustable range :
400-600 Mm
Panel thickness: :
40MM 50mm
PU material :
Polyurethane A/B
Heating temperature :
30-60℃ (automatic temperature control)
Description

50 Mm Panel Thickness Pu Density 35-50 Kg/ M3 Continuous Finger Protection Garage Door Production Line


This machine line consists of 5T Decoiler, Embossing machine, roll forming machine 1 set,High pressure injection machine Garage door foaming composite machine 1 set, after cutting device 1 set, PLC control system , Hydraulic System and Air Pressure system, Auto stacker 1 set


(1). Production type: Automatic continuous making machine

(2). Material spec: thickness 0.3-0.5mm, ≤G250 color steel sheet, aluminum.

(3). Production width: (400~600) mm can be adjustable

(4). Material of compound panel: double layer are metal sheet

(5).Main motor power: ≥20.5kw

(6).Main power: 100kw, pressure: 380V, 50HZ

(7). Structure of forming machine: up layer forming machine and down layer forming machine will run with composite machine together to become sandwich.

(8). Structure of composite machine: Adopt left and right two sides rubber conveyer belt orientation.

(9). Foaming system: Adopt Auto Continuum froth, the foaming is limited.

(10). Foaming Thickness: 40mm

(11). Working speed: 3-5m/min (According to thickness 40mm)

(12). Control System: PLC (DELTA, import from Taiwan)

(13). Length precision: length permissible errors ±1.5 mm

(14). Machine Weight: about 30000kg

Garage door PU sandwich panel production line:

Decoiler---Embossing----roll forming ---cutting after forming---out products


Main Components

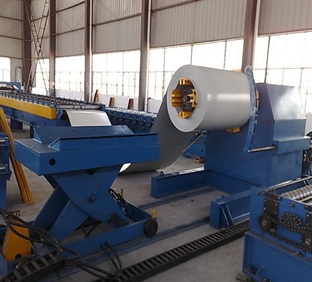

1 5tons automatic decoiler 4kw 2 set
2 Embossing and film device 5.5 2 set
3 Automatic feeding and flatten device(N.C) 1.5 1set
4 4 column hydraulic punching machine (200tons) 7.5kw 1set
5 Rectangle module (use for punching door shape) NO 1 set
6 Upper roll forming machine 4.0 1 set
7 Marking machine (N.C) 5.0 1 set
8 Downer roll forming machine 5.5 1 set
9 Two-floor steel structure platform NO 1 set
10 Viaduct with conveyor belt NO 1 set
11 Other conveyor belt NO 1 set
12 PLC system NO 1 set


Machine Photo

50mm Thickness 50Kg/M3 PU Sandwich Panel Production Line

50mm Thickness 50Kg/M3 PU Sandwich Panel Production Line

50mm Thickness 50Kg/M3 PU Sandwich Panel Production Line

50mm Thickness 50Kg/M3 PU Sandwich Panel Production Line
