40mm 12m/Min Discontinuous PU Sandwich Panel Production Line
40mm 12m/Min Discontinuous PU Sandwich Panel Production Line
40mm 12m/Min Discontinuous PU Sandwich Panel Production Line
40mm 12m/Min Discontinuous PU Sandwich Panel Production Line
40mm 12m/Min Discontinuous PU Sandwich Panel Production Line
40mm 12m/Min Discontinuous PU Sandwich Panel Production Line
40mm 12m/Min Discontinuous PU Sandwich Panel Production Line
40mm 12m/Min Discontinuous PU Sandwich Panel Production Line
Specifications
Brand Name :
SUSSMAN
Model Number :
SM-PUGD
Certification :
CE
Place of Origin :
Wuxi Jiangsu China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T L/C, Western Union
Supply Ability :
10 sets per months
Delivery Time :
90-120 days after deposit
Packaging Details :
Standard packing
PU density :
35-50 Kg/ M3 (Adjustable)
Hot air heater :
200Kw
Thickness :
0.3-0.5mm
Length :
12m(customized)
Width of sheet :
1250mm
Width Adjustable range :
400-600 Mm
Panel thickness: :
40MM 50mm
PU material :
Polyurethane A/B
Description

40 Mm 50 Mm Panel Thickness Discontinuous Finger Protection Garage Door Pu Sandwich Panel Production Line



Technical Parameter

1.1 Uncoiler


a) raw material: color steel sheet, aluminum sheet
b) motor power: 3Kw
c) hydraulic power: 2.2Kw
d) innder diameter of coil: 500mm- 600mm
d) outer diameter of coil: 1200mm
e) coil weight: 10T
f) sheet thickness: 0.3-0.8mm
g) sheet width: 1250mm
f) uncoil speed: 12m/min
g) hydraulic pressure: 6.3Mpa


1.2 Roll Forming Machine

a) sheet thickness: 0.4-0.8mm
b) roll forming speed: 1.5-12m/min
c) roller material: 40Cr, surface chrome coated, thickness 0.05mm
d) The way of width adjust: straight track, silk pole, reducer motor adjustable
e) width adjustable range: 400-600mm
f) Motow power: up panel 4Kw, down panel 7.5Kw
g) structrue: arm type adjustable, support roller in the middle
h) shaft diameter: 75mm


Main Components

Machine Name

Quantity

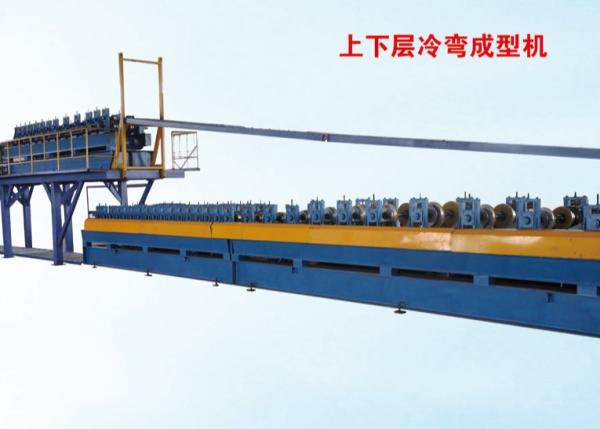

Roll forming machine for upper and down panel

4 Sets

Un-coiler 5 TONS

2 sets

embossing machine

1 set

PU Foaming machine

1 set

heating tables

1 set

Collecting table

1 set



Machine Photo

40mm 12m/Min Discontinuous PU Sandwich Panel Production Line

40mm 12m/Min Discontinuous PU Sandwich Panel Production Line

40mm 12m/Min Discontinuous PU Sandwich Panel Production Line

40mm 12m/Min Discontinuous PU Sandwich Panel Production Line
