7.5KW Metal Roof Panel Roll Forming Machine For 0.7mm Color Sheet
7.5KW Metal Roof Panel Roll Forming Machine For 0.7mm Color Sheet
7.5KW Metal Roof Panel Roll Forming Machine For 0.7mm Color Sheet
7.5KW Metal Roof Panel Roll Forming Machine For 0.7mm Color Sheet
7.5KW Metal Roof Panel Roll Forming Machine For 0.7mm Color Sheet
7.5KW Metal Roof Panel Roll Forming Machine For 0.7mm Color Sheet
7.5KW Metal Roof Panel Roll Forming Machine For 0.7mm Color Sheet
7.5KW Metal Roof Panel Roll Forming Machine For 0.7mm Color Sheet
Specifications
Brand Name :
Sussman
Model Number :
SM-RP
Certification :
CE ISO SGS
Place of Origin :
Wuxi Jiangsu China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T L/C
Supply Ability :
10 sets per months
Delivery Time :
65 days after deposit
Packaging Details :
Standard packing
Sheet Thickness :
0.4-0.7mm Color Sheet
Hydraulic power :
5.5Kw
Material Thickness :
0.4-0.7mm color steel or galvanized steel
Roller statione :
16 stations
Main Motor Power :
7.5kw
Way Of Drive :
1.2 inch single chain
Description

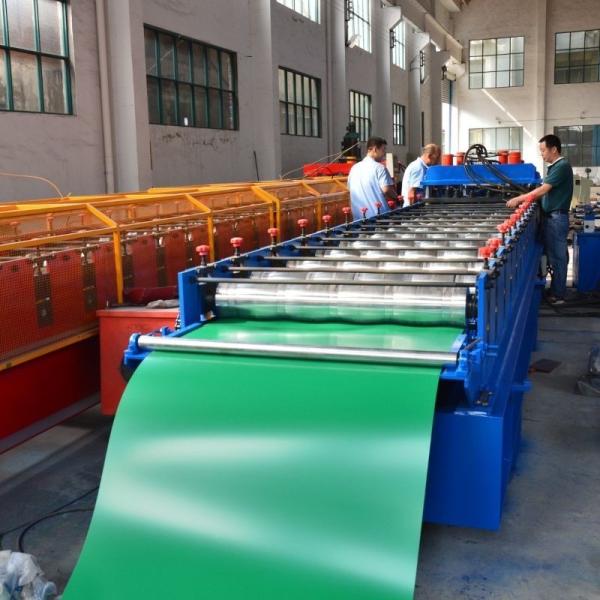

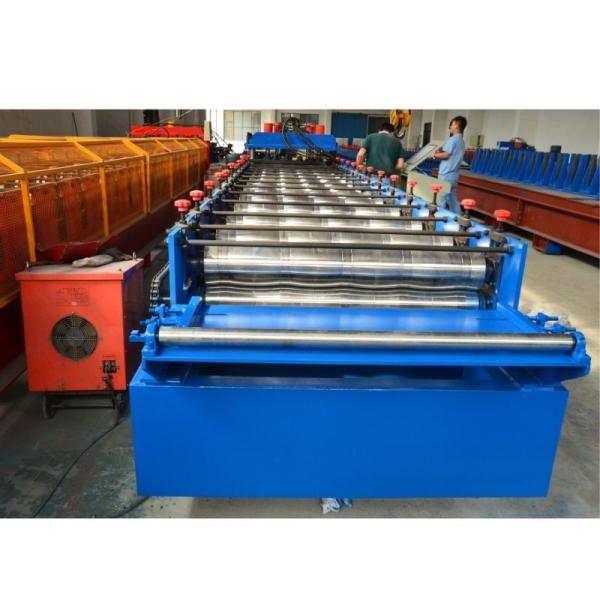

7.5KW Motor Power Color Steel Tile Roof Metal Sheet Glazed Tile Roll Forming Machine


Glazed tile Technical Parameter

Color Steel Sheet Thickness: 0.4~0.7mm Color Sheet
Color Steel Sheet width: 1000mm
Roller Stations: 16 stations
Way Of Drive:1.2 inch single chain
Roller Material: 45# forge steel, coated with chrome
Shaft Material and DIA:￠76mm, material is 45# forge steel
Main Motor Power: 7.5kw
Type:Hydraulic
Hydraulic Station Power: 5.5kw
Size of the press parts: 2000*1800*1500mm



Glazed tile Main Components

S.N

Equipment name

Quantity

1.

Feeding and leveling device

1 set

2.

Main roll forming machine

1 set

3.

5 tons passive decoiler

1 set

4.

Hydraulic station

1 set

5.

Control system (including control box)

1 set

6.

Spare parts

1 package













Glazed tile working flow

7.5KW Metal Roof Panel Roll Forming Machine For 0.7mm Color Sheet

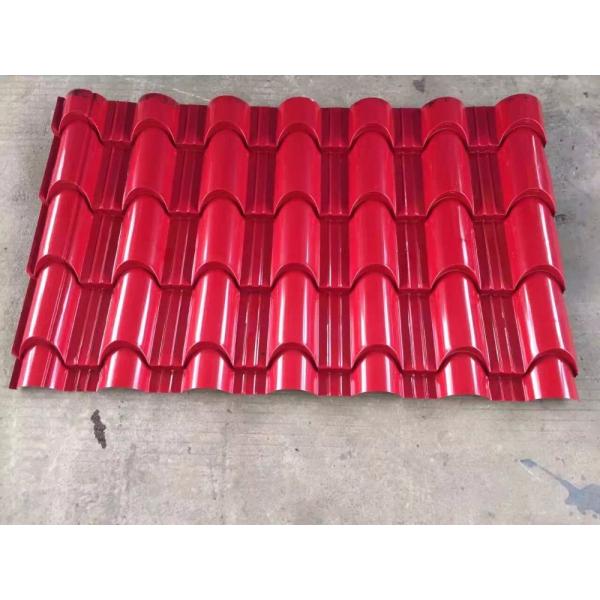

Profile Drawing
7.5KW Metal Roof Panel Roll Forming Machine For 0.7mm Color Sheet

7.5KW Metal Roof Panel Roll Forming Machine For 0.7mm Color Sheet


Application


The finished products are widely used in garden-like factories, tourist scenic spots, pavilions and pavilions, hotel villas, exhibition halls, resorts, resorts and so on. It has many advantages, such as beautiful scenery, Home and other architectural and outdoor decoration.

7.5KW Metal Roof Panel Roll Forming Machine For 0.7mm Color Sheet

7.5KW Metal Roof Panel Roll Forming Machine For 0.7mm Color Sheet
