0.8mm PPGI Color Metal Tile Roof Panel Roll Forming Machine
0.8mm PPGI Color Metal Tile Roof Panel Roll Forming Machine
0.8mm PPGI Color Metal Tile Roof Panel Roll Forming Machine
0.8mm PPGI Color Metal Tile Roof Panel Roll Forming Machine
0.8mm PPGI Color Metal Tile Roof Panel Roll Forming Machine
0.8mm PPGI Color Metal Tile Roof Panel Roll Forming Machine
Specifications
Brand Name :
Sussman
Model Number :
SM-GT
Certification :
CE,SGS,ISO
Place of Origin :
Wuxi Jiangsu China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T L/C
Supply Ability :
10 sets per months
Delivery Time :
60 days after deposit
Packaging Details :
1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Material Thickness :
0.4-0.7mm
Forming Stations :
18 roller stations
Shaft material :
#45 steel with heat treatment
Raw material :
PPGI/Galvanized Sheet
Power(w) :
7.5KW
Cutting blade material :
cr12 with quenched treatment
Working Speed :
3-4m/min
Hydraulic motor :
5.5KW
Description

0.3-0.8mm Color Metal Roofing Tile Roll Forming Machine With Ce And Iso

Glazed Tile Technical Parameter

(1) 5Tons manual un-coiler
(2) Entry bench & Pre-shearing device
Function Smart cut control, to cut off the end of the final piece of sheet only
Shearing Thickness 0.3-0.8mm
(3) The general machine parameter
Suitable roll forming material Color steel sheet or galvanized steel
Feeding width 1220mm
Frame design Wall-plate-frame-design /New-stand-frame-design
Roll stages 18 stages
Material of forming roller 45# steel, CNC lathes, Hard Chrome Coated
Shafts Diameter Φ75 mm
Main motor power 7.5KW with reducer
Max. Line speed of roll former 3-4m/min

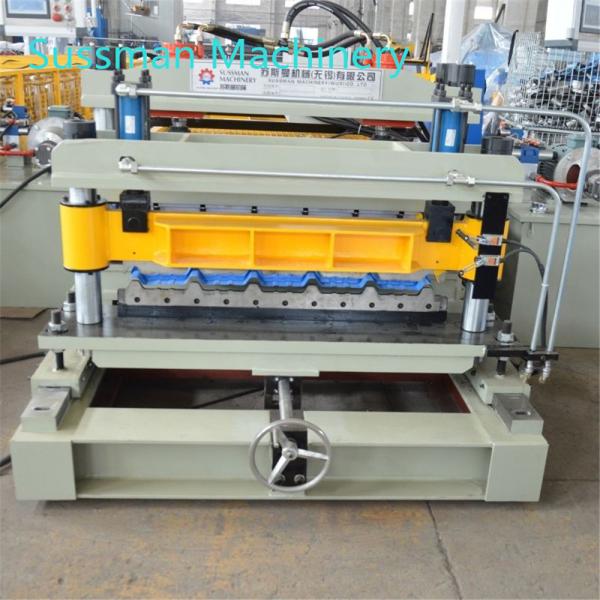

Hydraulic Stair-Drawing & Cutting Device There is one hydraulic press to make the stair according to requirement and hydraulic post cut for cut off
Hydraulic group power 7.5KW
Material of cutting blade Cr12, heat treatment
Electric Standard 380V /50Hz/3PH or as the customer's requirements
Machine Dimensions 9500mm×1800mm×160mm
Major Color of Machine Painted RAL 5015 (Blue) or as per customer's requirements
(4) PLC Control system
PLC Delta / Siemens brand
Touch Screen Delta / Siemens brand
Inverter Delta
Encoder Omron brand
(5) Product rack
Description un-powered, 2 units, 2 meters



Glazed Tile Main Components

S.N

Equipment name

 Quantity
1.

5T passive un-coiler

 1 set
2.

Main roll forming machine

 1 set
3.

Hydraulic presshing and cutting

 1 set
4.

PLC Control system

1 set
5.

4 Meters Out tables

 2 sets













Profiles of Glazed Tile

0.8mm PPGI Color Metal Tile Roof Panel Roll Forming Machine

Application

Glazed Steel Tile Making Machinery for Colored Glazed Steel Roofing Sheet is used to make the color glazed tiles in batch by the Steel Tile Making Machinery. the finished product of Glazed Steel Tile Making Machinery For Colored Glazed Steel Roofing Sheet is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste. This machine working speed is around 4-5 meter per minutes.

0.8mm PPGI Color Metal Tile Roof Panel Roll Forming Machine

0.8mm PPGI Color Metal Tile Roof Panel Roll Forming Machine

0.8mm PPGI Color Metal Tile Roof Panel Roll Forming Machine

0.8mm PPGI Color Metal Tile Roof Panel Roll Forming Machine
