0-10m/Min 0.4-0.7mm Thickness Exterior PU Sandwich Panel Continuous Production Line
0-10m/Min 0.4-0.7mm Thickness Exterior PU Sandwich Panel Continuous Production Line
0-10m/Min 0.4-0.7mm Thickness Exterior PU Sandwich Panel Continuous Production Line
0-10m/Min 0.4-0.7mm Thickness Exterior PU Sandwich Panel Continuous Production Line
0-10m/Min 0.4-0.7mm Thickness Exterior PU Sandwich Panel Continuous Production Line
0-10m/Min 0.4-0.7mm Thickness Exterior PU Sandwich Panel Continuous Production Line
0-10m/Min 0.4-0.7mm Thickness Exterior PU Sandwich Panel Continuous Production Line
0-10m/Min 0.4-0.7mm Thickness Exterior PU Sandwich Panel Continuous Production Line
0-10m/Min 0.4-0.7mm Thickness Exterior PU Sandwich Panel Continuous Production Line
0-10m/Min 0.4-0.7mm Thickness Exterior PU Sandwich Panel Continuous Production Line
0-10m/Min 0.4-0.7mm Thickness Exterior PU Sandwich Panel Continuous Production Line
0-10m/Min 0.4-0.7mm Thickness Exterior PU Sandwich Panel Continuous Production Line
Specifications
Brand Name :
Sussman
Model Number :
PU - SP
Certification :
CE, ISO9001, SGS
Place of Origin :
Hebei China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5 Sets / Month
Delivery Time :
80 days
Packaging Details :
Film and Steel
Dimension :
500mm*1000mm*800mm
Material of roller :
40Cr
Width Adjustable :
600-1250mm
Main power :
7.5KW
Roll station :
according to the panel profile
Hardness of shaft :
HB220-250°
Description

Automatically Continuous Polyurethane Sandwich Exterior Wall PU Panel Production Line

Motor Power Up Panel 4KW,Down Panel 7.5KW
Speed of roll forming 0-12m/min
Material of roller 40Cr
Width Adjustable range 600-1250mm
Sheet thickness 0.4-0.8mm
Diameter of the shaft 50mm
Hardness of shaft HB220-250°
Transmission equipment cycloid redcking gear box
Roll station according to the panel profile

Machine list

No. Machine Name
1 Un-coiler Hydraulic 5 TONS 2 Sets
2 Steel sheet transverse cutting machine, steel sheet surface PVC film covering device 2 Sets
3 Roll forming machine for wall panel and Roof panel 2 sets
4 Panel pre-heat equipment 1 set
5 PU 2 component Liquid mixing and injecting section for foaming with high pressure 1 set
6

24m double belt machine include Hydraulic pressure control system

With 4 sets side nylon seal blocks to make different thickness of wall panel and roof panel

 1 set
7 Heating and heat insulation system 1 set
8 automatic Panel Band saw Cutting Machine 1 set
9 Cooling conveyer 1 set
10 Air compressor and tank 2 m3 1 set
11 12 meters auto stacker 1 set

Technique process

Air cylinder ejector——Carry panel start——Panel falling—Out put

0-10m/Min 0.4-0.7mm Thickness Exterior PU Sandwich Panel Continuous Production Line

Profile drawing

0-10m/Min 0.4-0.7mm Thickness Exterior PU Sandwich Panel Continuous Production Line

0-10m/Min 0.4-0.7mm Thickness Exterior PU Sandwich Panel Continuous Production Line

Sample

0-10m/Min 0.4-0.7mm Thickness Exterior PU Sandwich Panel Continuous Production Line

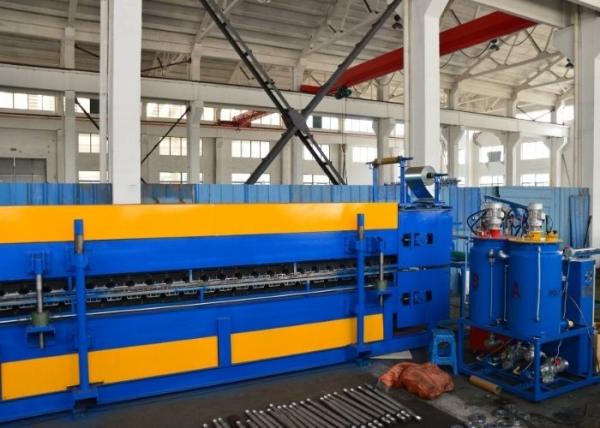

Machine picture

0-10m/Min 0.4-0.7mm Thickness Exterior PU Sandwich Panel Continuous Production Line

0-10m/Min 0.4-0.7mm Thickness Exterior PU Sandwich Panel Continuous Production Line
