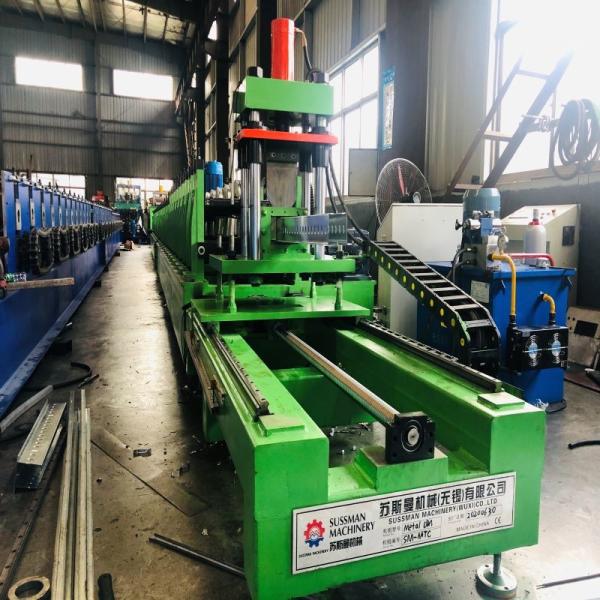

1.5mm 30m/Min Deck Floor Beam Roll Forming Machine
1.5mm 30m/Min Deck Floor Beam Roll Forming Machine
1.5mm 30m/Min Deck Floor Beam Roll Forming Machine
1.5mm 30m/Min Deck Floor Beam Roll Forming Machine
1.5mm 30m/Min Deck Floor Beam Roll Forming Machine
1.5mm 30m/Min Deck Floor Beam Roll Forming Machine
1.5mm 30m/Min Deck Floor Beam Roll Forming Machine
1.5mm 30m/Min Deck Floor Beam Roll Forming Machine
1.5mm 30m/Min Deck Floor Beam Roll Forming Machine
1.5mm 30m/Min Deck Floor Beam Roll Forming Machine
Specifications
Brand Name :
Sussman
Model Number :
SM-VG
Certification :
ISO,BV,CE
Place of Origin :
Wuxi,China
MOQ :
1 set
Price :
USD35500-45000/set
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per month
Delivery Time :
60-75days
Packaging Details :
Plastic film
Raw material :
1.5mm galvanized coils
Main motor :
11kw
Stations :
26 stations
Cutting :
Hydraulic stop cutting
Machine weight :
12 tons
Machine size :
11800mm*800mm*1200mm
Description

30m/min deck floor beam Roll Forming Machine with servo following cutting for flooring

1. Cutting way:

(1) Cutting motion: The main machine stops and then cut automatically. After cutting, the main machine re-starts automatically.

(2) Material of blade: CR12 with heat treatment

(3) Length measuring: Automatically

(4) Tolerance of length: + 1.5mm

(5) In order to get the perfect profiles, we recommend the post hydraulic cutting by changing the cutting moulds. It is easy to operate.

(1) Power supplier: 220V, 60 Hz, 3Phase (adjusted with the request )

(2) Length & quantity measurement automatically;

(3) Length & quantity controlled by PLC,

(4) Length inaccuracy can be amended easily.

(6). Control panel: Button-type switch and touch screen

(7) The language in the touch screen: English and Chinese

(8) Unit of length: millimeter (switched on the control panel)

Items Specifications Remarks
Material of coil Material Thickness 1.5mm galvanized
Un Coiler 3 tons manual
Forming system Rolling Speed 10 m/min
Roller Stations About 24 stations
Roller Material

45# Steel with quenching 60mm shaft
Maim Motor Power 7.5 kw
Hydraulic cutting Power 4 kw

Cutting

system

 Material Of Cutting CR12 with quench treatment
Hardness HRC58-62
Tolerance +-1.5mm
Electrical control system Electric Source

220V, 60HZ,3 phase

Also can satisfy Customer’s require
Control System PLC (Panasonic) as list in the note
Weight About 5.5 tons
Way Of Drive 1 inch single chain
Size of machine Length 9000mm* Width 600mm* Height 1000mm

2. Profiles

1.5mm 30m/Min Deck Floor Beam Roll Forming Machine

1.5mm 30m/Min Deck Floor Beam Roll Forming Machine

1.5mm 30m/Min Deck Floor Beam Roll Forming Machine1.5mm 30m/Min Deck Floor Beam Roll Forming Machine
