Automatic Galvanized Steel Purlin Making Machine U Profile Channel Roll Forming
Automatic Galvanized Steel Purlin Making Machine U Profile Channel Roll Forming
Automatic Galvanized Steel Purlin Making Machine U Profile Channel Roll Forming
Automatic Galvanized Steel Purlin Making Machine U Profile Channel Roll Forming
Automatic Galvanized Steel Purlin Making Machine U Profile Channel Roll Forming
Automatic Galvanized Steel Purlin Making Machine U Profile Channel Roll Forming
Specifications
Brand Name :
Sussman
Model Number :
SM-PM
Certification :
SGS, ISO9001, CE
Place of Origin :
Wuxi Jiangsu China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per month
Delivery Time :
60 days after deposit
Packaging Details :
Standard packing
Processing thickness :
1.5-2.0MM Galvanized steel G300Mpa
Roller material :
Gcr15 steel with quenching
Shaft diameter :
75mm
Main motor power :
11kw
Drives method :
Gearbox driven
Speed :
about 8-12m/min
Description

Automatic Galvanized Steel Purlin Making Machine U Profile Channel Roll Forming Machine

1. U Post Machine Technical Data

configurations manual decoiler, main machine of roll forming, cutting device, output table, electric motor, PLC control system
Material processing material Colored Steel plate, Galvanized steel
thickness 1.5-2.0mm
Manual decoiler The maximum load cap
acity:5 ton
The coil inside diameter:450-550mm
Main Forming machine Forming steps 18-20steps
Shaft diameter 70 mm
Thick of arch frame 18mm
Frame body 300 H steel
roller material high grade NO. 45 forged steel with 0.05mm hard chrome plating
shaft material high grade NO. 45 carbon wrought steel
cutter material Cr12 mold steel with quenched treatment
Transmission By 1” chain
Work speed 10m/min

2. C post machine main components

Decoiler→Feeding material into machine →punching device→Roll forming machine →Hydraulic cutting →Finished Products

Machine name Quantity
Automatic decoiler 1 set
Servo feeding 1 set
Roll forming machine 1 set
Hydrualic punching device 1 set
Hydraulic cutting system 1 set
4 meters out tables 1 ste
PLC control box system 1 set
Tool box 1 package

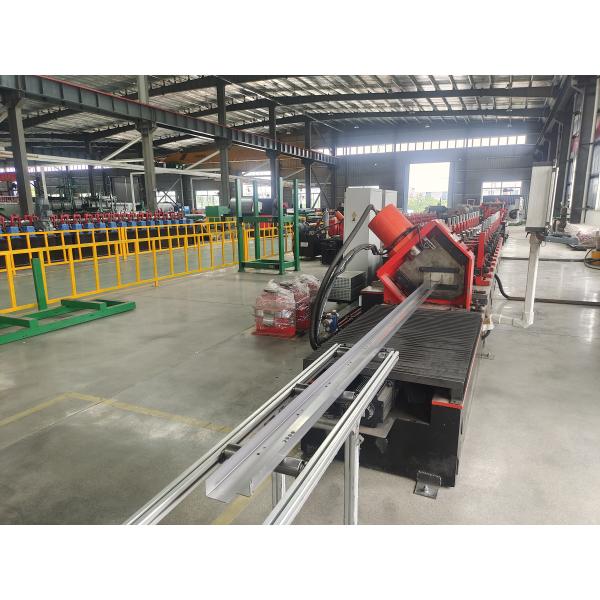

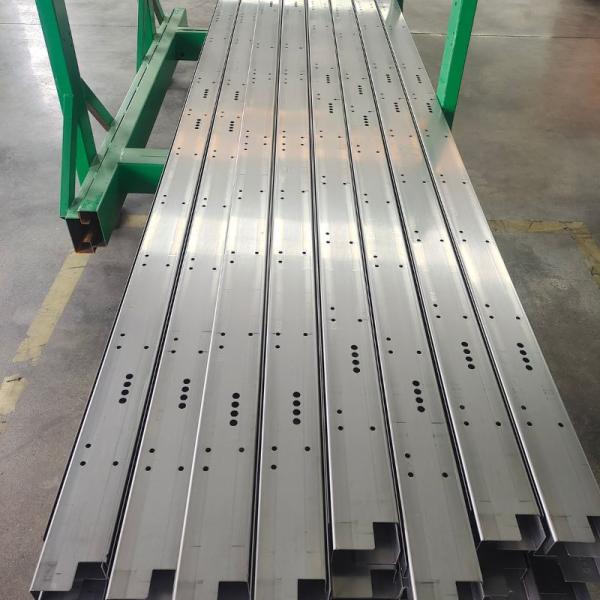

3. U Post Photo

Automatic Galvanized Steel Purlin Making Machine U Profile Channel Roll Forming

4. U Post Machine More details

The C post roll forming line includes automatic decoiler, hydraulic punching, roll forming system, cutting equipment, hydraulic station, electric controlling system and supporter for finished products.

Fully automatic C profile purlin roll orming machine for both heavy and light-duty use.

Pre-punching and Post cutting is optional: If need to produce many sizes, we can adopt pre-cutting to save cost.

Automatic Galvanized Steel Purlin Making Machine U Profile Channel Roll Forming
