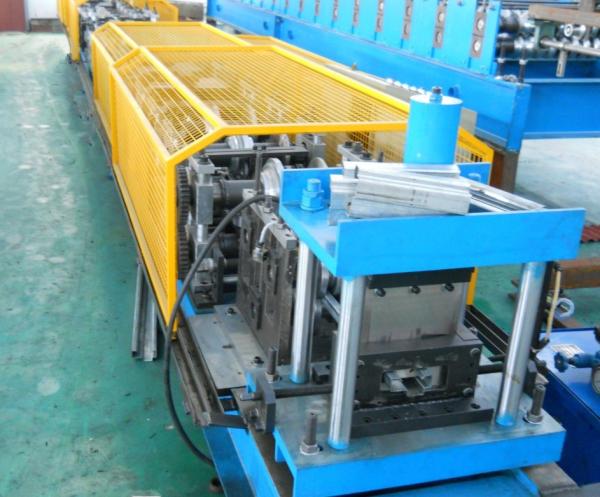

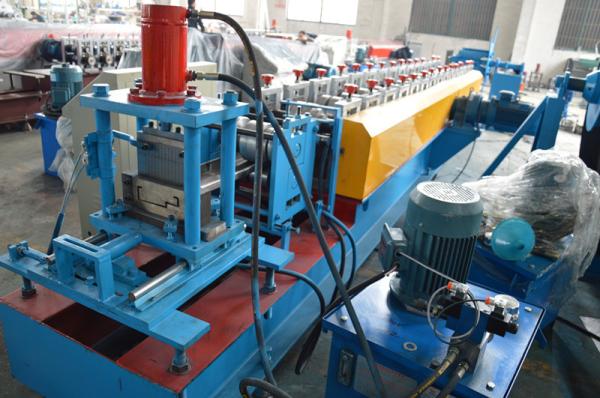

OEM Customized ISO Certificate Metal Door Frame Roll Forming Machine With PLC Control System
OEM Customized ISO Certificate Metal Door Frame Roll Forming Machine With PLC Control System
OEM Customized ISO Certificate Metal Door Frame Roll Forming Machine With PLC Control System
OEM Customized ISO Certificate Metal Door Frame Roll Forming Machine With PLC Control System
OEM Customized ISO Certificate Metal Door Frame Roll Forming Machine With PLC Control System
OEM Customized ISO Certificate Metal Door Frame Roll Forming Machine With PLC Control System
OEM Customized ISO Certificate Metal Door Frame Roll Forming Machine With PLC Control System
OEM Customized ISO Certificate Metal Door Frame Roll Forming Machine With PLC Control System
Specifications
Brand Name :
Sussman
Model Number :
RF-ST
Certification :
CE, SGS, ISO
Place of Origin :
Wuxi, China
MOQ :
1 set
Price :
negotiable
Supply Ability :
10 sets/month
Delivery Time :
60 days after deposit
Packaging Details :
Film and steel
Decoiler :
diameter 460-520mm expansion
Coil width :
500mm
Material thickness :
1.5mm-2mm, galvanized steel or blank steel
Roller stations :
18 stations
Cutting :
Cr12mov
Warranty :
12 Months
Description

OEM Customized ISO Certificate Metal Door Frame Roll Forming Machine With PLC Control System


1. Technical Parameter

  • Suitable Plate Material: thickness 1.5-2.0mm, Galvanized steel or blank steel

  • Working Speed: 12-15 meters / min

  • Forming Steps: 18 stations

  • Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome

  • Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining

  • Driven system: gear box drive

  • Main Power with reducer:15KW WH Chinese Famous

  • Cutting: Hydraulic Cutting Cr12mov

  • Material of Cutting Knife: Cr12Mov, Quench HRC58-62

  • Hydraulic Station Power: 7.5KW Wuxi Wanshen Famous Chinese Brand

  • The whole machine is controlled by PLC.

  • PLC--English and Chinese Language



2. Working Flow




3. Machine Components

S.N

Equipment name

Quantity

1

3T passive un-coiler

1 set

2

Leveling device

1 set


Hydraulic punch for the notches

5 sets

3

Main roll forming machine

1 set

4

Cutting holder

1 set

5

Cutting blades

1 set

6

Punching moulds

1 set

7

Hydraulic station

1 set

8

Control system ( including control box)

1 set

9

Out tables

2 units

10

Spare parts

1 package

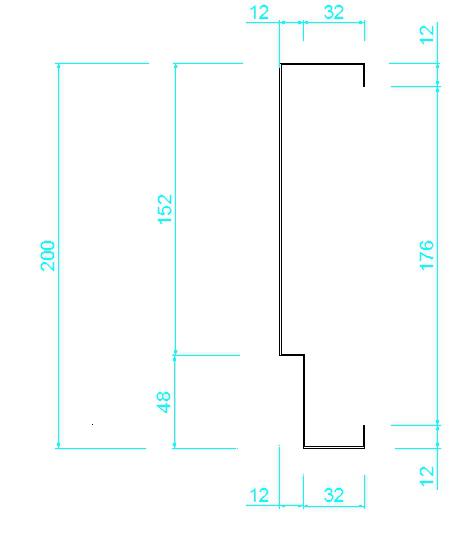

4. Profile Drawing

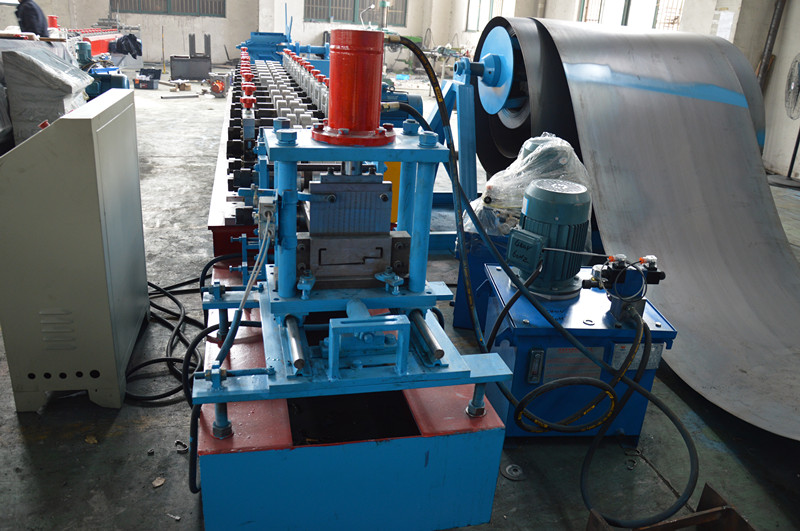

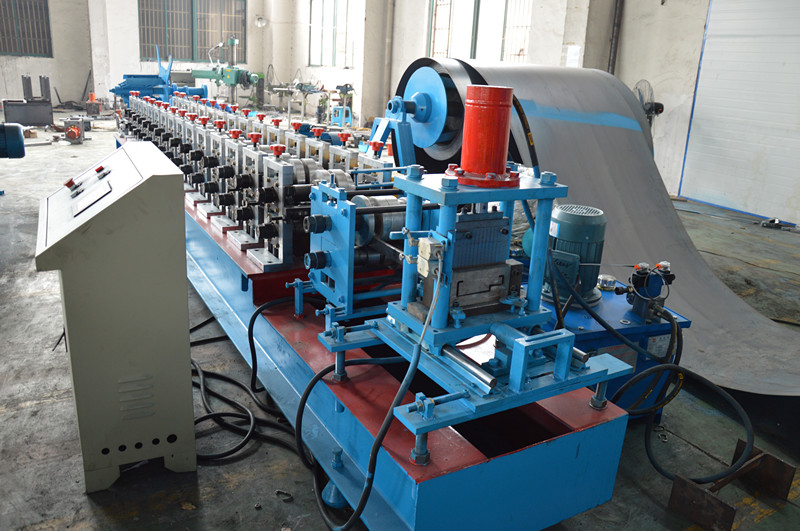

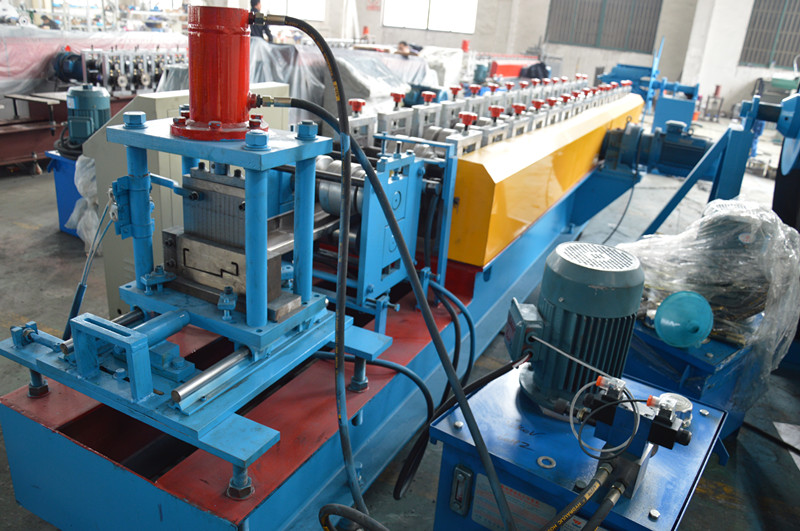

5. Machine Photo
