1mm Galvanized Coils Stud and Track Roll Forming Machine Chain Transmission
1mm Galvanized Coils Stud and Track Roll Forming Machine Chain Transmission
1mm Galvanized Coils Stud and Track Roll Forming Machine Chain Transmission
1mm Galvanized Coils Stud and Track Roll Forming Machine Chain Transmission
Specifications
Brand Name :
Sussman
Model Number :
RF-ST
Certification :
CE, SGS, ISO
Place of Origin :
Wuxi, China
MOQ :
1 set
Price :
negotiable
Supply Ability :
10 sets/month
Delivery Time :
60 days after deposit
Packaging Details :
Film and steel
Material thickness :
1mm galvanized coils or black steel
Profile width :
about 22mm
profile height :
about 5.5mm
roller stations :
10 stations
main motor power :
3Kw
hydraulic cutting power :
3Kw
Machine weight :
about 2.5 tons
Machine size :
3500mm x 500mm x 800mm
Description

Material 1mm Galvanized Coils or Black Steel Top Hat Stud Roll Forming Machine Chain Transmission

Technical Data

Item NO

Description

Offered specification
1.0 Roll forming machine Ceiling batten
1.1 Rolling speed 25-30m/min(not include cutting time)
1.2 Rolling thickness 0.48 mm to 0.55mm
1.3 Raw material G550 Galvanized coils
1.4 Main motor 5.5kw with gear box
1.5 PLC Panasonic Brand
1.6 dimension About 5500×435×1000(mm)
1.7 Effective width 66mm
1.18 Voltage 220V, 60HZ, 3phase
1.9 Roller stations About 13 stations
1.10 Roller material Cr40 Nitriding
1.11 Shaft diameter Φ50mm ,material is 45# forge steel
1.12 Transmission By chain One inch chain
1.13 Material of chain 45# forged steel with frequency quenching
1.14 Material of cutting Cr12Mov with quench HRC58-62°
1.15 Tolerance 6m+-1.5mm

2. Working Flow

Decoiler—feedingwithguide—Rollforming——Cutting—Products collecting

1mm Galvanized Coils Stud and Track Roll Forming Machine Chain Transmission

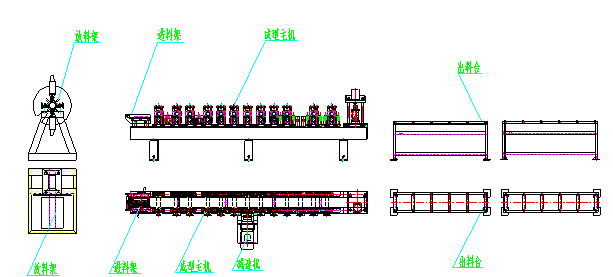

3. Machine Components

Machine list 3 ton passive de-coiler 1 set
Feeding with guide 1 set
Main roll forming machine 1 set
PLC Control box 1 unit
Hydraulic station 1 unit
Stop cutting device 1 unit
Safety cover 1 unit
Out table 2 units

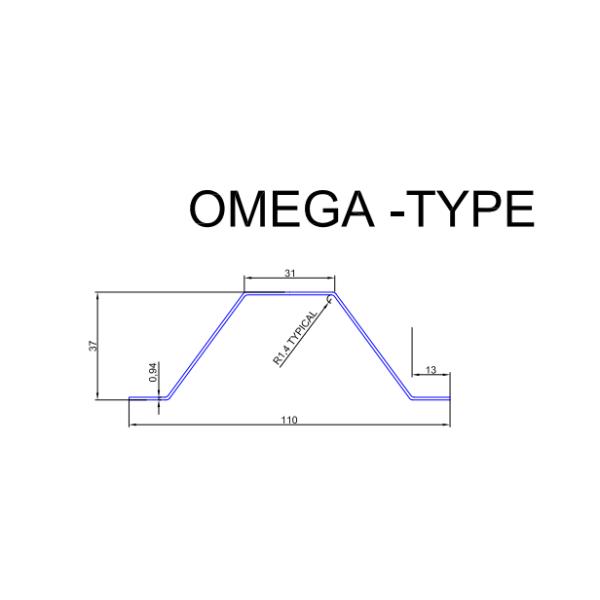

4. Profile Drawing

1mm Galvanized Coils Stud and Track Roll Forming Machine Chain Transmission


5. Machine Photo

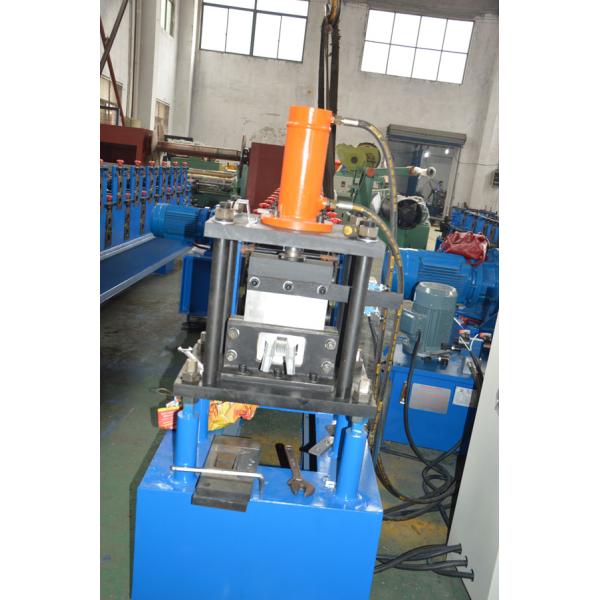

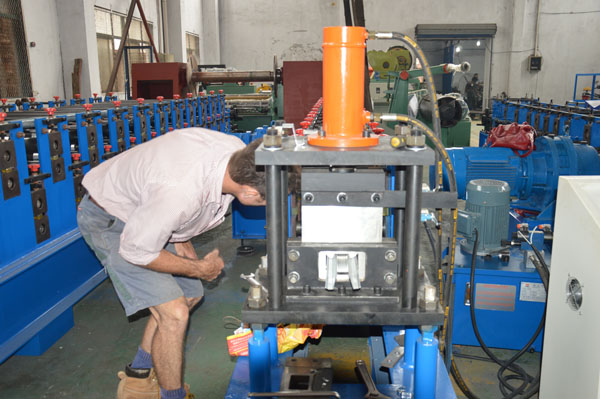

1mm Galvanized Coils Stud and Track Roll Forming Machine Chain Transmission

1mm Galvanized Coils Stud and Track Roll Forming Machine Chain Transmission

1mm Galvanized Coils Stud and Track Roll Forming Machine Chain Transmission1mm Galvanized Coils Stud and Track Roll Forming Machine Chain Transmission

6.Other components

1mm Galvanized Coils Stud and Track Roll Forming Machine Chain Transmission1mm Galvanized Coils Stud and Track Roll Forming Machine Chain Transmission1mm Galvanized Coils Stud and Track Roll Forming Machine Chain Transmission1mm Galvanized Coils Stud and Track Roll Forming Machine Chain Transmission
