Specifications
Brand Name :
Sussman
Model Number :
SS-MC
Certification :
CCC, SGS, ISO9001, CE
Place of Origin :
Wuxi Jiangsu China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 sets per month
Delivery Time :
55-65 days
Packaging Details :
Standard packing
Material :
Galvanized steel
Material thickness :
0.4-0.8mm
Cutting way :
Hydraulic cutting
Main motor power :
5.5kw
Driving way :
Chain driving
Roller groups :
13 Stations
Description

Chain Driving Main Channel Roll Forming Machine with 10-15m / Min

Advantage for Main Channel Machine

1. Reasonable Price

2. High Quality

3. 12 Months Warranty

4. More Than 10 Years Experience

5. Durable

6. Reliable

Technical parameter

1. Steel Sheet Thickness: 0.4-0.8mm (depend on requirement )

2. Hydraulic power: 4Kw

3. Transmission way: chain

4. Chain: 1 inch single chain

5. Capacity of Decoiler: 3 Ton passive decoiler

6. Forming Speed: 10-15m/min

7. Roller Groups: about 13 stations

8. Roller Material: 45# high grade steel with finish machining treatment, by high frequency quenched HRC58-62

9. Roller Diameter: 100mm

10. Principal Axis: 45# high grade steel with quenching treatment

11. Main Motor Power: 5.5 Kw

Applications

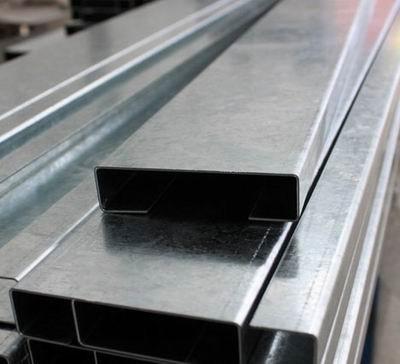

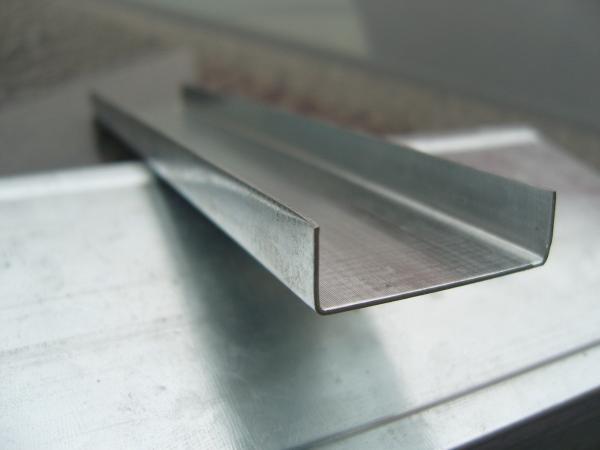

Metal stud and track, steel stud and track, c stud, u runner, u track, furring channel, roof ceiling batten, roof truss, c truss, light weight steel truss...

Main Channel Working Flow

De-coiler—→feedingwithguide—→main roll forming machine—→cutting—→ run out table

10-15m / Min Stud And Track Roll Forming Machine , Chain Driving Main Channel Roll Forming Machine

Profile Drawing OF Main Channel Roll Forming Machine

10-15m / Min Stud And Track Roll Forming Machine , Chain Driving Main Channel Roll Forming Machine

10-15m / Min Stud And Track Roll Forming Machine , Chain Driving Main Channel Roll Forming Machine

10-15m / Min Stud And Track Roll Forming Machine , Chain Driving Main Channel Roll Forming Machine

Main Components

Machine list 3 ton passive de-coiler 1 set
Feeding with guide 1 set
Main roll forming machine 1 set
PLC Control box 1 unit
Hydraulic station 1 unit
Stop cutting device 1 unit
Safety cover 1 unit
Out table 2 units

Main Channel Forming Machine Pictures

10-15m / Min Stud And Track Roll Forming Machine , Chain Driving Main Channel Roll Forming Machine

10-15m / Min Stud And Track Roll Forming Machine , Chain Driving Main Channel Roll Forming Machine

Production process

10-15m / Min Stud And Track Roll Forming Machine , Chain Driving Main Channel Roll Forming Machine

Why choose us

10-15m / Min Stud And Track Roll Forming Machine , Chain Driving Main Channel Roll Forming Machine
