CE Certificate 13 Stations Main Channel Roll Forming Machine for Galvanized Steel
CE Certificate 13 Stations Main Channel Roll Forming Machine for Galvanized Steel
CE Certificate 13 Stations Main Channel Roll Forming Machine for Galvanized Steel
CE Certificate 13 Stations Main Channel Roll Forming Machine for Galvanized Steel
CE Certificate 13 Stations Main Channel Roll Forming Machine for Galvanized Steel
CE Certificate 13 Stations Main Channel Roll Forming Machine for Galvanized Steel
CE Certificate 13 Stations Main Channel Roll Forming Machine for Galvanized Steel
CE Certificate 13 Stations Main Channel Roll Forming Machine for Galvanized Steel
Specifications
Brand Name :
Sussman
Model Number :
SS-MC
Certification :
CCC, SGS, ISO9001, CE
Place of Origin :
Wuxi Jiangsu China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 sets per month
Delivery Time :
55-65 days
Packaging Details :
Standard packing
Material :
Galvanized steel
Material thickness :
0.4-0.8mm
Cutting way :
Hydraulic cutting
Cutting power :
4kw
Roller material :
#45 steel
Shaft diameter :
70 mm
Transimission :
1 Inc chain drive
Description

CE Certificate 13 Stations Main Channel Roll Forming Machine for Galvanized Steel

Main technique of the roll forming machine:

1,Running material: Galvanized steel Thickness – 0.27-1mm

2,Forming speed: 12-15m/min

3,Forming steps: 13 steps

4,Roller material: Fine steel precision work processing of Gcr15,Roller datum roller diameter φ120

5,Material of principal axis: Fine steel modulation processing of 45

6,Sprocket wheel: 45 steel high-frequencies quench; distance 25.4. Quantity: 13pcs

7,Motor power: 7.5 KW

8,Cut-off system: Adopts hydraulic pressure drive, cut off after forming.

9,Hydraulic system electrical machinery power: 4KW

10,Hydraulic system pressure: 10Mpa

11,PLC Control system: Brand of Panasonic ; Touch screen is brand of Beijing huade, Encoder is Japanese Omron brand; the Inverter is Siemens brand

12,Rack row of work place: Steel rack of 446X199H; Detachable wall plate type row of work place

13. Overall Dimension of the main forming machine: 6000mmX700mmX900mm

14, Total weight: 3 ton approximately

15. Un-coiler: 3 Ton capacity of manual un-coiler

16. the punching press machine for the holes

17. Power supply: 380V 50HZ, 3 phase

Applications

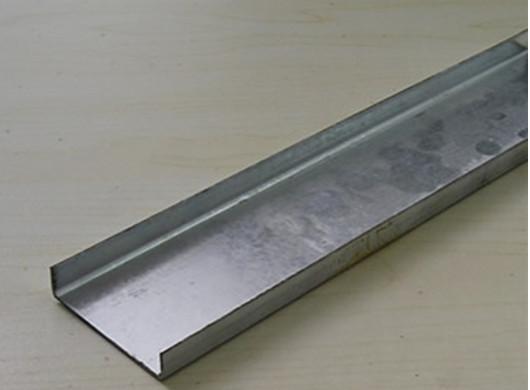

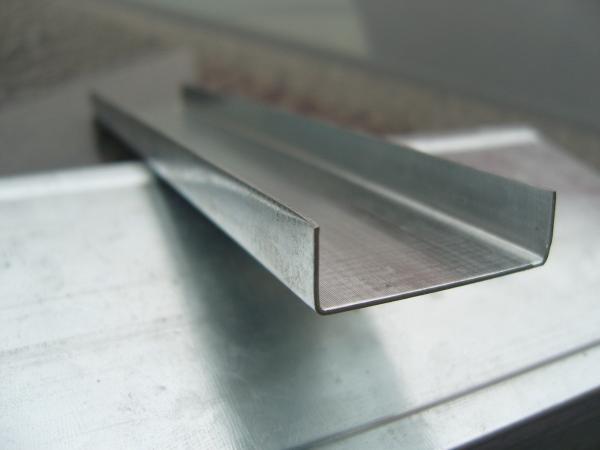

Metal stud and track, steel stud and track, c stud, u runner, u track, furring channel, roof ceiling batten, roof truss, c truss, light weight steel truss...

Main Channel Working Flow

De-coiler—→feedingwithguide—→main roll forming machine—→cutting—→ run out table

CE Certificate 13 Stations Main Channel Roll Forming Machine for Galvanized Steel

Profile Drawing OF Main Channel Roll Forming Machine

CE Certificate 13 Stations Main Channel Roll Forming Machine for Galvanized Steel

CE Certificate 13 Stations Main Channel Roll Forming Machine for Galvanized Steel

CE Certificate 13 Stations Main Channel Roll Forming Machine for Galvanized Steel

Main Components

Machine list 3 ton passive de-coiler 1 set
Feeding with guide 1 set
Main roll forming machine 1 set
PLC Control box 1 unit
Hydraulic station 1 unit
Stop cutting device 1 unit
Safety cover 1 unit
Out table 2 units

Advantage for Main Channel Machine

1. Reasonable Price

2. High Quality

3. 12 Months Warranty

4. More Than 10 Years Experience

5. Durable

6. Reliable

Details of each composition:

Cutting

(1) Cutting after forming: Cut the sheet after roll forming to required length

(2) Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.

(3) Material of blade: CR12with heat treatment

(4) Length measuring: Automatic length measuring

(5) Tolerance of length: 10m+/- 2mm

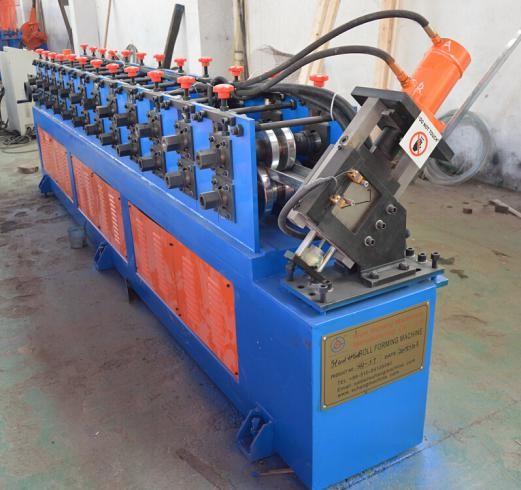

Main Channel Forming Machine Pictures

CE Certificate 13 Stations Main Channel Roll Forming Machine for Galvanized Steel

CE Certificate 13 Stations Main Channel Roll Forming Machine for Galvanized Steel

CE Certificate 13 Stations Main Channel Roll Forming Machine for Galvanized Steel

CE Certificate 13 Stations Main Channel Roll Forming Machine for Galvanized Steel

CE Certificate 13 Stations Main Channel Roll Forming Machine for Galvanized Steel

CE Certificate 13 Stations Main Channel Roll Forming Machine for Galvanized Steel
