Specifications
Brand Name :
Sussman
Model Number :
SM-RF
Certification :
CE, SGS, ISO
Place of Origin :
Wuxi, China
MOQ :
1 set
Price :
negotiable
Supply Ability :
10 sets per month
Delivery Time :
60days after deposit
Packaging Details :
Film and steel
Thickness of sheet :
0.3-0.8mm Color steel
Roller stations :
About 16 Rollers
Way of Drive :
1.2inch chain
Main motor power :
7.5Kw
Coil width :
1250mm
Forming speed :
8-12m/min
Description

0.3-0.8mm Thickness PPGI Steel Metal Roofing Making Machine With 16 Rollers

Technical Parameter

S.N Items Descriptions
1 Rolling Speed 8-12m/min(cutting time is not include)
2 Steel sheet Thickness 0.3-0.8mm color painted sheets and galvanized steel
3 Coil width 1250mm
4 Control System PLC Delta or Panasonic
5 Roller Stations about 16 stations
6 Roller Material 45# forge steel, coated with chrome
7 Shaft Material and DIA ￠76mm,material is 45# forge steel, Chrome with quenching
8 Main Motor Power 7.5kw Anhui wannan Brand
9 Hydraulic Pressure 12Mpa
10 Wall plate thickness 16mm
11 Tolerance +-1.5mm
12 Power supplier 380V, 50HZ,3 phase
13 Way Of Drive 1 inch single chain
14 Color Of The Machine Blue
15 The size of the forming machine 8700mm×1622mm×1400mm
16 Machine weight 8000kg

Machine Component

5 tons hydraulic de-coiler

1 set

Press mould

 1 set

Main roll forming machine

 1 set

PLC Control box

 1 set

Hydraulic cutting device

 1 set

Out put tables

 1 set
Spare parts 1 set
Safety cover 1 set

Advantage

1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .
2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.
3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.

4. The surface of the final product is very smooth and beautiful without any scratch on the surface.

5. Customized:design the machine according to your specification and profile drawing.(for your reference)

6. It is unit one, hydraulic station and control box is under machine frame to save more space

7. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifetime services for our machines.

Application

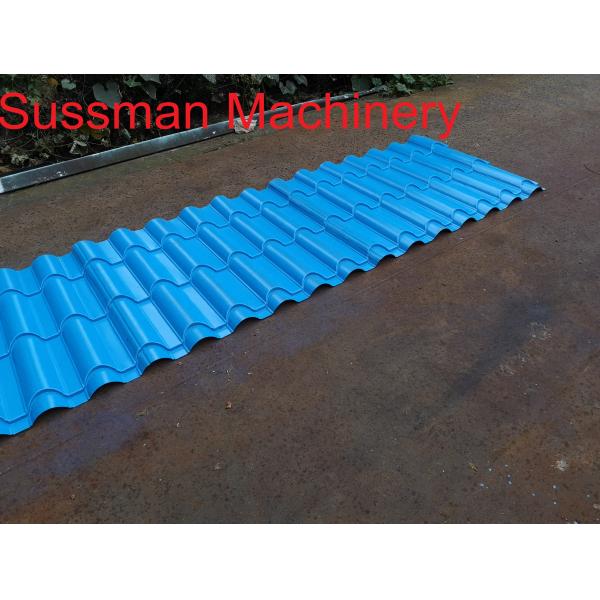

The finished products are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition centers etc.

Package

Main machine is nude in container, computer control cabinet is packed with film

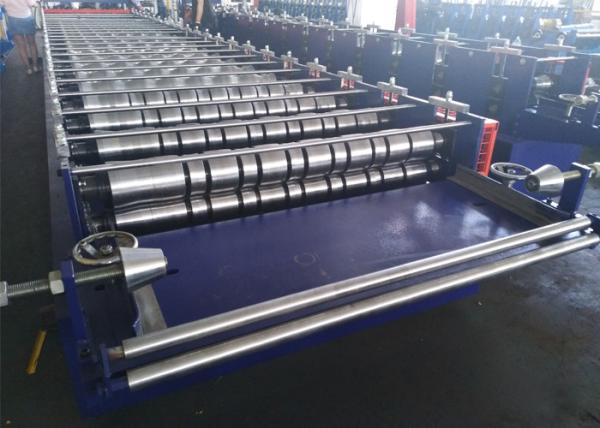

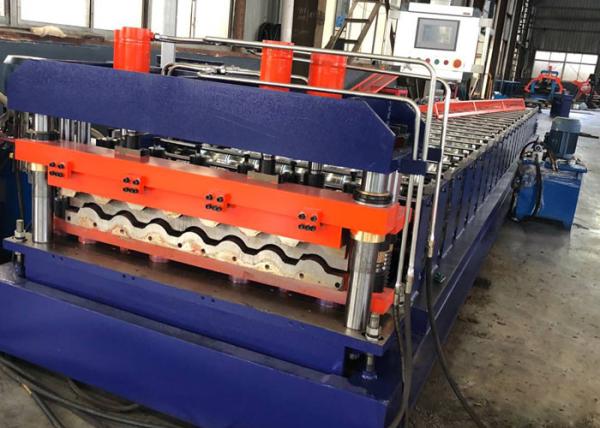

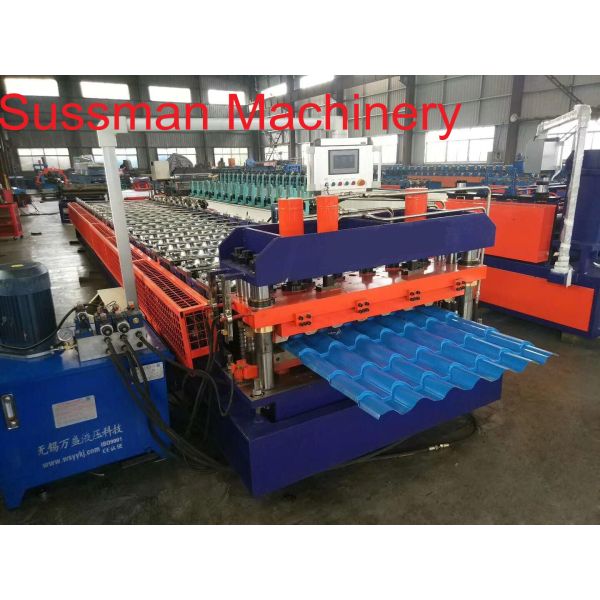

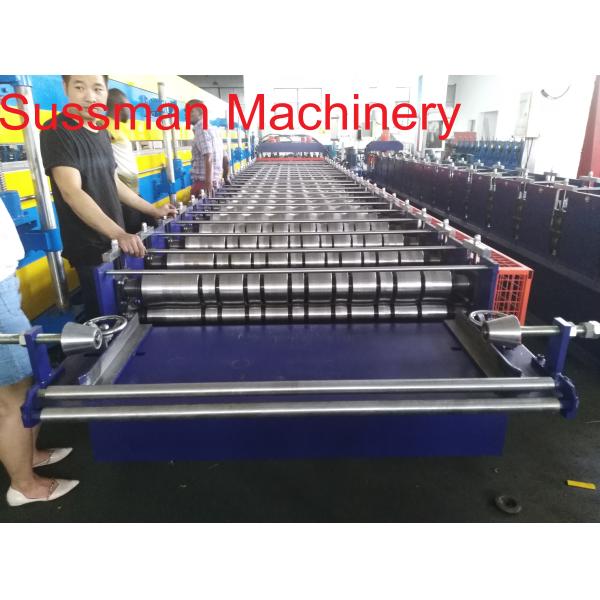

Machine photo

PPGI Steel Metal Roof Panel Roll Forming Machine 16 Rollers , 0.3-0.8mm Thickness

PPGI Steel Metal Roof Panel Roll Forming Machine 16 Rollers , 0.3-0.8mm Thickness

PPGI Steel Metal Roof Panel Roll Forming Machine 16 Rollers , 0.3-0.8mm Thickness
