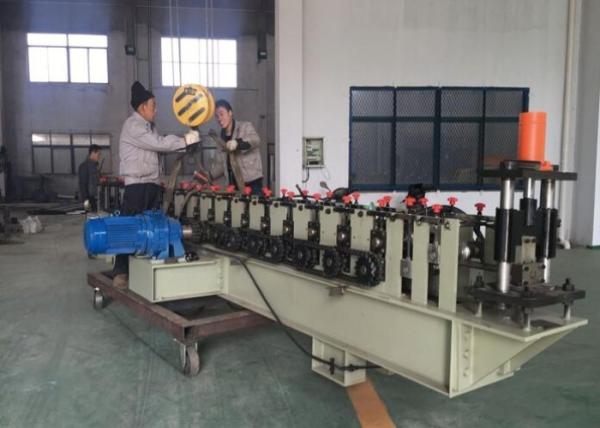

16 Stations Vineyard Post Metal Rollforming Systems 1.2-2 Mm Rolling Thickness
16 Stations Vineyard Post Metal Rollforming Systems 1.2-2 Mm Rolling Thickness
16 Stations Vineyard Post Metal Rollforming Systems 1.2-2 Mm Rolling Thickness
16 Stations Vineyard Post Metal Rollforming Systems 1.2-2 Mm Rolling Thickness
Specifications
Brand Name :
Sussman
Model Number :
SM-VP-045
Certification :
CE, SGS, ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD 35,000-85,000 per set
Supply Ability :
5 sets per month
Delivery Time :
60-90 days
Packaging Details :
standard film
Rolling speed :
2-3m/min
Rolling thickness :
1.2-2mm
Raw material :
Galvanized steel sheet G550
dimension :
6500*600*1200(mm)
Roller stations :
About 16 stations
Shaft diameter :
value 60mm ,material is 45# forge steel
Description

16 Stations Vineyard Post Metal Rollforming Systems 1.2-2 Mm Rolling Thickness

Description:

Number Name Type Quantity
1

3 ton passive de-coiler

RF-VY

 1 set
2

Hydraulic punching (core off and N and O)

RF-VY

 1 set
3

Main roll forming machine

RF-VY

 1 set
4

Control box

RF-VY

 1 unit
5

Hydraulic station

RF-VY

 1 unit
6

Cutting device

RF-VY

 1 unit
7

Out tables

RF-VY

 2 units

Working flow:

Uncoiling—Feedingwithguide—hydraulic punching—Roll forming—cutting—Products collecting

Technical Data:

1.1 Rolling speed 2-3m/min
1.2 Rolling thickness 1.2-2mm
1.3 Raw material Galvanized steel sheet G550
1.6 dimension 6500×600×1200(mm)
1.7 Effective width 50mm
1.8 Roller stations

About 16 stations
1.9 Roller material Gcr15, coated with chrome, Quenching
1.10 Shaft diameter Φ60mm ,material is 45# forge steel
1.11 Transmission By Chain
1.12 Material of chain 45# forged steel with frequency quenching, 12A
1.13 Main Motor 7.5kw
1.14 Material of cutting Cr12Mov with quench HRC58-62°
1.15 Cutting Tolerance 6m+-1.0mm

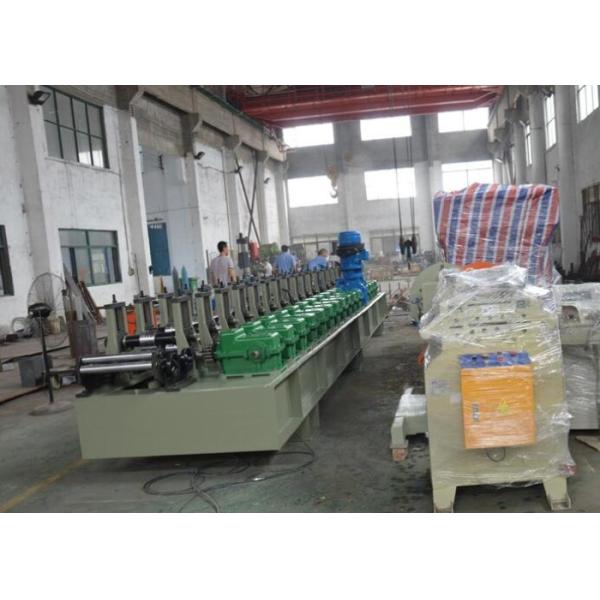

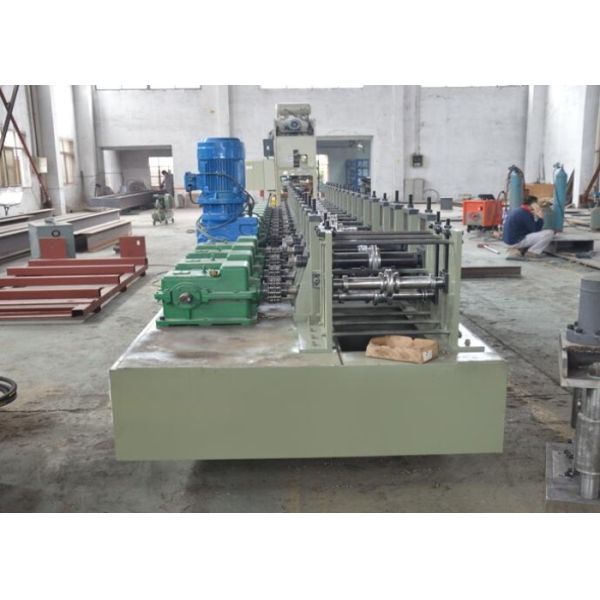

More pictures:

16 Stations Vineyard Post Metal Rollforming Systems 1.2-2 Mm Rolling Thickness16 Stations Vineyard Post Metal Rollforming Systems 1.2-2 Mm Rolling Thickness

Products:

16 Stations Vineyard Post Metal Rollforming Systems 1.2-2 Mm Rolling Thickness16 Stations Vineyard Post Metal Rollforming Systems 1.2-2 Mm Rolling Thickness16 Stations Vineyard Post Metal Rollforming Systems 1.2-2 Mm Rolling Thickness16 Stations Vineyard Post Metal Rollforming Systems 1.2-2 Mm Rolling Thickness

Installation of the machine:

The individual components of the machine are installed according to the layout and prepared for the commissioning.

The installation comprises of:

- Installation by Sussman service technicians.

- The following services are included:

- Installation of the machine components.

- Adjustment of the machine components.

- Connection of all motors to the control cabinet.

- Installation of the required safety devices.

Delivery extent does not comprise of:

- Media supply (electrics, compressed air, etc.)to the machine(control cabinet)

- Raw material process material and fuels

- Raw material for test blocks

- Transport and lifting devices

- Auxiliary staff.

The operators of the plant should be present during the installation in order to become familiar with the new machines.
