0.27-1mm Galvanized Steel Stud Roll Forming Machine With PLC Control
0.27-1mm Galvanized Steel Stud Roll Forming Machine With PLC Control
0.27-1mm Galvanized Steel Stud Roll Forming Machine With PLC Control
0.27-1mm Galvanized Steel Stud Roll Forming Machine With PLC Control
0.27-1mm Galvanized Steel Stud Roll Forming Machine With PLC Control
0.27-1mm Galvanized Steel Stud Roll Forming Machine With PLC Control
0.27-1mm Galvanized Steel Stud Roll Forming Machine With PLC Control
0.27-1mm Galvanized Steel Stud Roll Forming Machine With PLC Control
Specifications
Brand Name :
Sussman
Model Number :
SS - DW
Certification :
CE
Place of Origin :
WUXI, CHINA
MOQ :
1 SET
Price :
USD +( 10000 - 18500) +SET
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10 + SETS+ PER MONTH
Delivery Time :
60DAYS
Packaging Details :
Standard film
Product name :
Drywall roll forming machine
Embossing :
At sides
Roller Stations :
About 13 stations forming
Roller Material :
Cr40 Steel with quenching
Shaft Material :
45# Steel Diameter 60mm shaft
Motor Power :
7.5 kw
Hydraulic cutting Power :
4 kw
Rolling Speed :
0-10m/min
Description

0.27-1mm galvanized steel stud and truck roll forming machine with PLC

Machine list

Machine list

3 ton passive de-coiler

 1 set

Main roll forming machine

 1 set

Punching device

 1 set

Cutting device

 2 sets

PLC Control box

 1 unit

Hydraulic station

 1 unit

Out table

 2 units

Safety cover

 1 unit

Parameters:

Items

 Specifications
Material of coil

Thickness

 0.27-1mm galvanized steel
De-coiler

Weight

 3 ton manual
Forming system

Rolling Speed

 0-10m/min

Embossing

 At sides

Roller Stations

 About 13 stations forming

Roller Material

 Cr40 Steel with quenching
Shaft Material

45# Steel Diameter 60mm shaft

Motor Power

 7.5 kw

Hydraulic cutting Power

 4 kw

Cutting

system

 Material of cutting CR12 with quench treatment

Hardness

 HRC58-62

Tolerance

 +-1.5mm

Cutting blade

 1 set of cutting blade
Electrical control system Electric Source

380V, 60HZ,3 phase

Control System

 PLC

Weight

 About 3 tons

Way Of Drive

 1 inch single chain

Size of machine

 Length 5500mm* Width 600mm* Height 800m

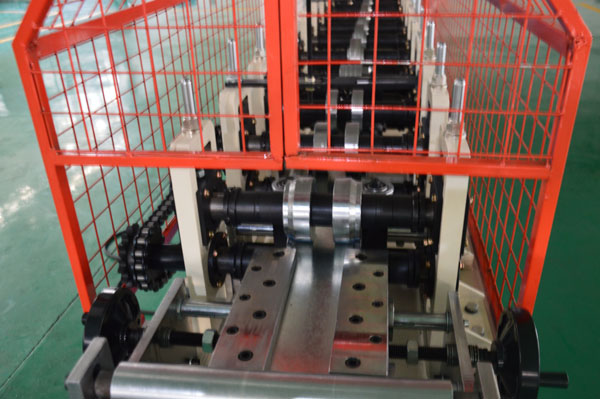

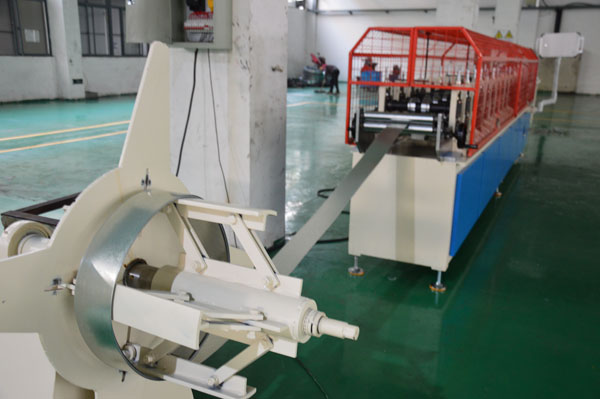

Machine pictures

0.27-1mm Galvanized Steel Stud Roll Forming Machine With PLC Control

0.27-1mm Galvanized Steel Stud Roll Forming Machine With PLC Control
