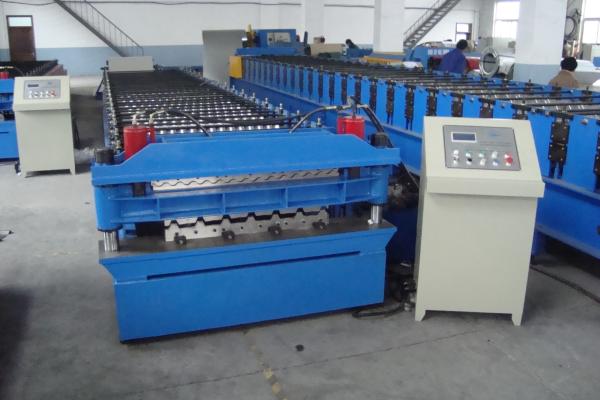

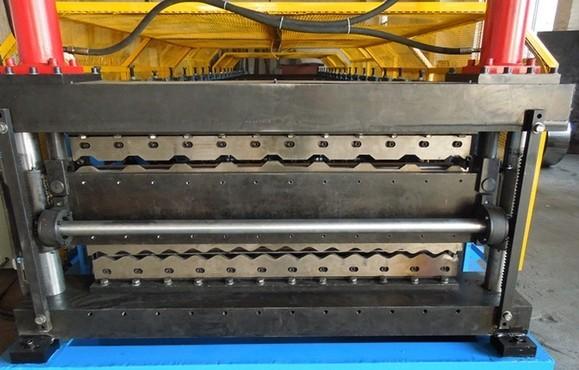

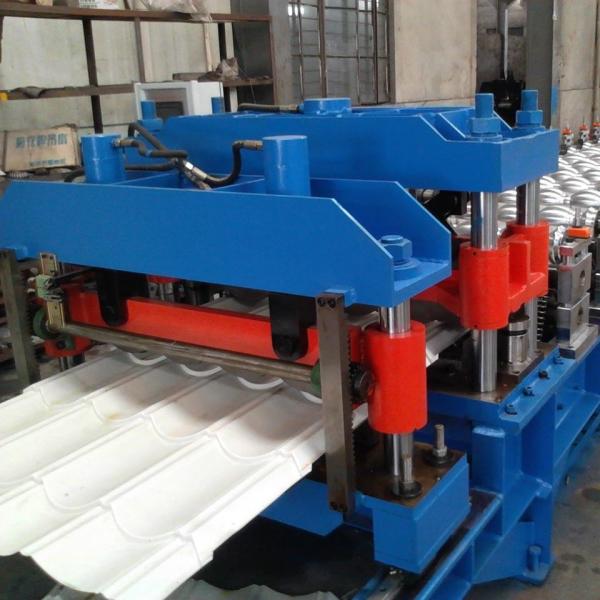

18 Froming Station Double Deck Steel Roll Former Machine
18 Froming Station Double Deck Steel Roll Former Machine
18 Froming Station Double Deck Steel Roll Former Machine
18 Froming Station Double Deck Steel Roll Former Machine
18 Froming Station Double Deck Steel Roll Former Machine
18 Froming Station Double Deck Steel Roll Former Machine
18 Froming Station Double Deck Steel Roll Former Machine
18 Froming Station Double Deck Steel Roll Former Machine
Specifications
Brand Name :
Sussman Machinery
Model Number :
SH-DL
Certification :
CCC, SGS, ISO9001, CE
Place of Origin :
Wuxi Jiangsu China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 sets per month
Delivery Time :
Shipped in 75 working days after payment
Packaging Details :
Standard package with film, plastic and steel wire.
Material :
Galvanized steel and colorcoated steel coil
Forming speed :
12-15m/min
Roller station :
16 - 18 stations
Main motor power :
5.5Kw
Control system :
PLC with touch screen
power supply :
380V, 50Hz, 3Phase
Dirve system :
single system
Color :
Customized
Description

18 Froming Station New Design Double Deck Steel Tile Roll Former Machine With PLC Automatic Control

Technical Parameter

1. Steel Sheet Thickness: 0.3-0.8mm (depend on requirement )

2. Hydraulic power: 5.5Kw

3. Transmission way: single chain

4. Material of blad: Cr12, quenching treatment

5. Capacity of Decoiler: 5 ton passive decoiler

6. Forming Speed: 10-15m/min

7. Roller Groups: 16 stations main roller

8. Roller Material: 45# high grade steel, quenching treatment

9. Roller Diameter: 180mm

10. Principal Axis: 45# high grade steel with quenching treatment

11. Main Motor Power: 5.5kw

Main Components

Machine Component Quantity
5 ton passive decoiler 1Set
Main roll forming machine 1Set
Hydraulic station 1Set
Cutting device 1Set
Finished products tabel- 2Set
PLC control system 1Set
Spare part 1Set

Advantage for

1. Reasonable Price

2. High Quality

3. 12 Months Warranty

4. More Than 10 Years Experience

5. Durable

6. Reliable

Applications

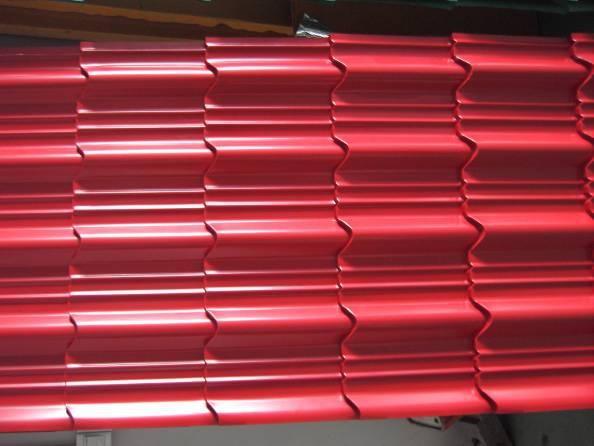

Wall Panel, Roof Panel, Tile Roof Panel

Working Flow

Decoiler ---- Feeding --- Roll Forming ---- Cutting ---- Run out table
