0 - 40 M / Min Steel Slitting Machine 12 Ton Coil Weight 480 - 520mm Coil I.D
0 - 40 M / Min Steel Slitting Machine 12 Ton Coil Weight 480 - 520mm Coil I.D
0 - 40 M / Min Steel Slitting Machine 12 Ton Coil Weight 480 - 520mm Coil I.D
0 - 40 M / Min Steel Slitting Machine 12 Ton Coil Weight 480 - 520mm Coil I.D
0 - 40 M / Min Steel Slitting Machine 12 Ton Coil Weight 480 - 520mm Coil I.D
0 - 40 M / Min Steel Slitting Machine 12 Ton Coil Weight 480 - 520mm Coil I.D
0 - 40 M / Min Steel Slitting Machine 12 Ton Coil Weight 480 - 520mm Coil I.D
0 - 40 M / Min Steel Slitting Machine 12 Ton Coil Weight 480 - 520mm Coil I.D
Specifications
Brand Name :
Sussman
Model Number :
SS-CTLL
Certification :
CE
Place of Origin :
WUXI, CHINA
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
10 sets per month
Delivery Time :
75-85 days after deposit
Packaging Details :
standard packing
Slitting Speed :
0-40m/min
Coil Width :
1600
Coil I.D :
480-520
Coil weight :
12 Ton
Slitting blade shaft :
200
Material of blade :
6CrW2Si
Description

0 - 40 M / Min Steel Slitting Machine 12 Ton Coil Weight 480 - 520mm Coil I.D

Advantage

1.Hydraulic and electric control at the same time
2.easy to operate
3.the whole line is adjustable

Specifications

1 Control model Frequency conversion control
2 Application Hot or cold rolled steel, galvanized steel
3 Thickness mm 1-4
4 Width (Max) mm 1250
5 Coil I.D mm 508-610
6 Coil O.D mm ≤1000
7 Weight T 5T
8 Blades mm Φ120×Φ200×15
9 Material of blades 9CrSi
10 Line speed m/min ≤40

Composed devices

1.Hydraulic coil car

----Convenient to carry the coils on the decoiler

2.De-coiler

----Supporting the coils and do the uncoiling

3.Hydraulic pinch and press device

----To do the pre-leveling and feed the plates into next process

4.Head cutting machine

----To cut the damaged heads or make the big coils into small coils


5.Slitting machine

---- Slit the wide plates into several narrow strips


6.Scrap winder

---- wind the leftover material on the both edge of the plates to ensure the safe working condition


7.Tension stand

-----To create the tension stress and do the pre-dividing to ensure the tight and even quality on the recoiler


8.Hydraulic Re-coiler

----Rewinding the finished strips

9.Hydraulic unload car

---- Carry out the finished coils

Working Flow of Cut-to-length Line

Decoiler---Leveling---Cutting---Recoiler

0 - 40 M / Min Steel Slitting Machine 12 Ton Coil Weight 480 - 520mm Coil I.D

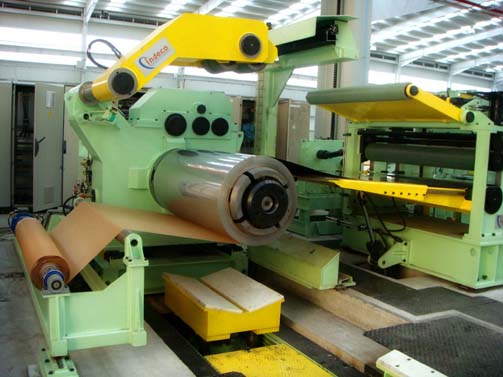

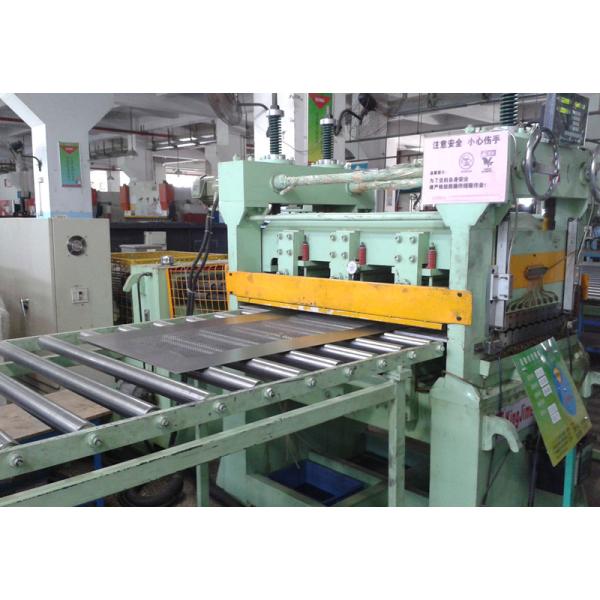

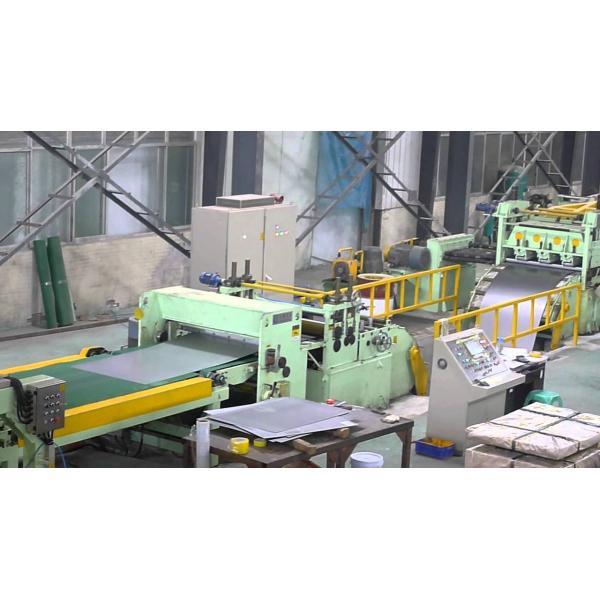

Machine pictures

0 - 40 M / Min Steel Slitting Machine 12 Ton Coil Weight 480 - 520mm Coil I.D

0 - 40 M / Min Steel Slitting Machine 12 Ton Coil Weight 480 - 520mm Coil I.D

0 - 40 M / Min Steel Slitting Machine 12 Ton Coil Weight 480 - 520mm Coil I.D
