Specifications
Brand Name :
Sussman
Model Number :
RF-ST
Certification :
CE, SGS, ISO
Place of Origin :
Wuxi, China
MOQ :
1 set
Price :
negotiable
Supply Ability :
10 sets/month
Delivery Time :
60 days after deposit
Packaging Details :
Film and steel
Forming speed :
0-15m/min
Product speed :
8-10m/min
Roller material :
GCr12
Forming stations :
15 stations+ 4 folded machine
shaft diameter :
75mm
Type :
Racking Box Beam Roll Forming machine
Warranty :
1 year
Description
Machine parameters:
1. Suitable raw material: Galvanized steel sheet

2. Working Speed: 12-15 meters / min
3. Forming machine: 15 stations

4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
5. Material of Shaft: 45# Advanced Steel, thermal refining

6. Driven system: Chain Driven 1.5 inches 20A double chain with longer shafts

7. Main Power with reducer: 11KW WH Chinese Famous

8. Cutting: Hydraulic Cutting Cr12mov

9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62

10. Hydraulic Station Power: 5.5KW

11. Attached with cooling equipment.

12. Complete with uncoiler, hydraulic cutting device and including run-out table.

13. This machine is controlled by computer system with touch screen.

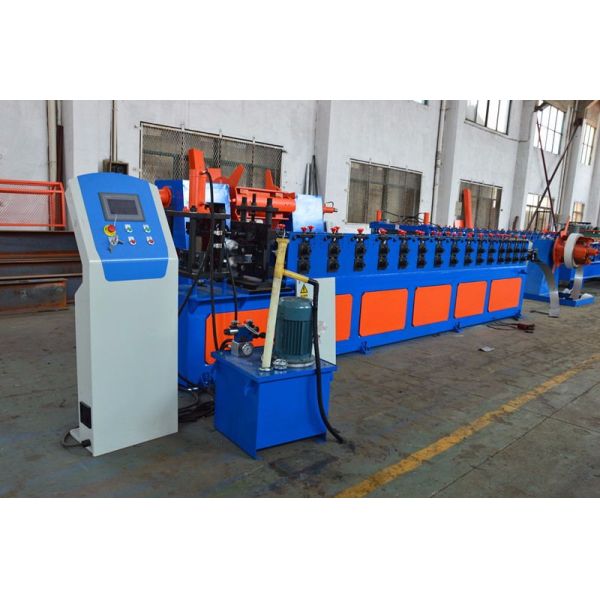

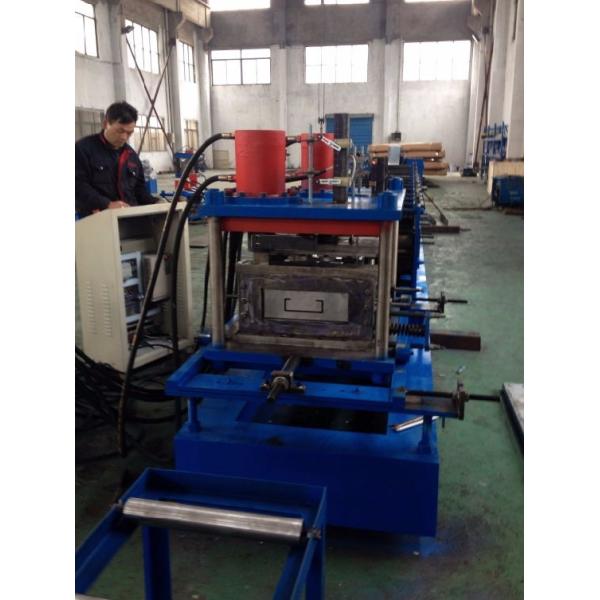

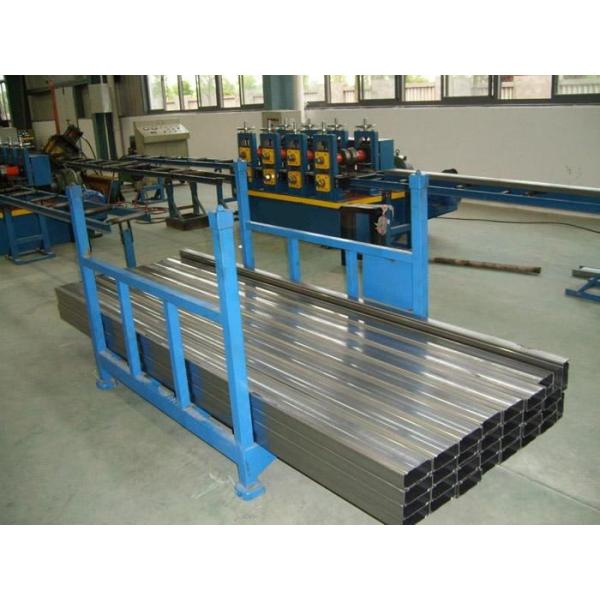

Machine picture
1 Year Warranty Rack Roll Forming Machine Rack Box Beam Roll Forming Machinery
1 Year Warranty Rack Roll Forming Machine Rack Box Beam Roll Forming Machinery
1 Year Warranty Rack Roll Forming Machine Rack Box Beam Roll Forming Machinery

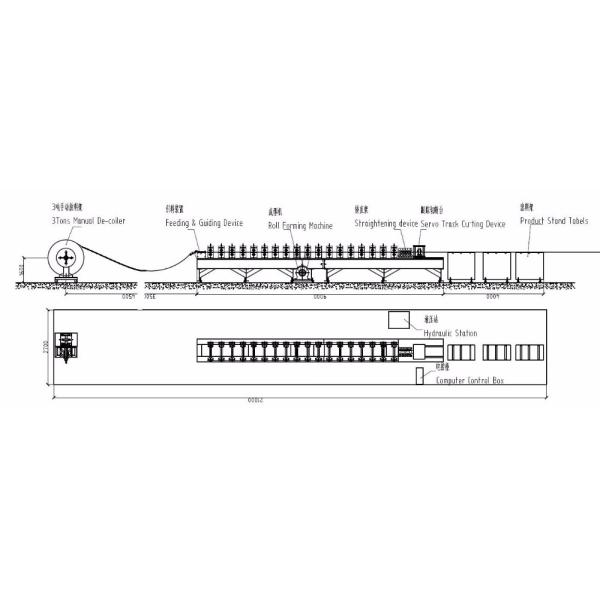

Working flow of roll forming machine

Manual de-coiler--leveling machine -- roll forming machine --Cutting device--Product Stand Tables

1 Year Warranty Rack Roll Forming Machine Rack Box Beam Roll Forming Machinery

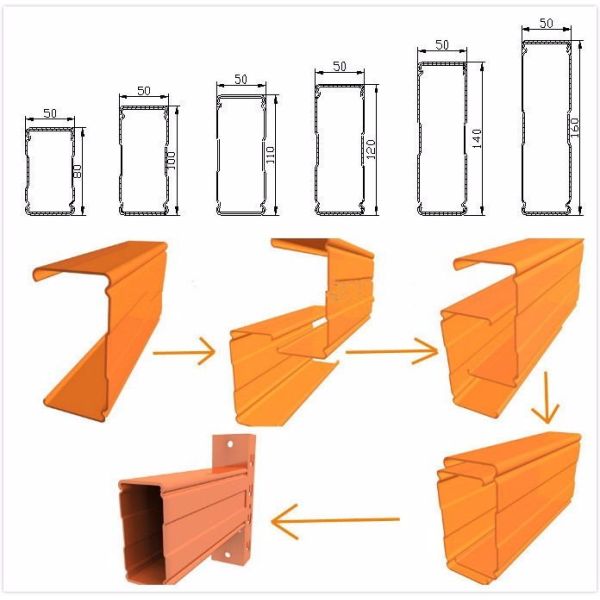

Profile of product
1 Year Warranty Rack Roll Forming Machine Rack Box Beam Roll Forming Machinery
Packing & Delivery
The machine is in the container or packing as your required.
Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.
Delivery: within 45 working days after receipt of deposit
Guarantee: One year, and we will provide the technical support for the whole life.

FAQ

1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .

2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.

3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.

4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.

5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.

6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
