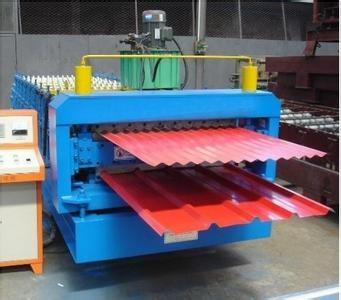

380V 3PHASE Double Layer Roll Forming Machine 45# steel Roller material CE Certification
380V 3PHASE Double Layer Roll Forming Machine 45# steel Roller material CE Certification
380V 3PHASE Double Layer Roll Forming Machine 45# steel Roller material CE Certification
380V 3PHASE Double Layer Roll Forming Machine 45# steel Roller material CE Certification
380V 3PHASE Double Layer Roll Forming Machine 45# steel Roller material CE Certification
380V 3PHASE Double Layer Roll Forming Machine 45# steel Roller material CE Certification
380V 3PHASE Double Layer Roll Forming Machine 45# steel Roller material CE Certification
380V 3PHASE Double Layer Roll Forming Machine 45# steel Roller material CE Certification
Specifications
Brand Name :
Sussman
Model Number :
RF-DL
Certification :
CE
Place of Origin :
Wuxi, Jiangsu Province, China
MOQ :
1set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10sets/month
Delivery Time :
60days after accepting the advanced payment
Packaging Details :
Film and steel
Condition :
NEW
Roller stations :
18 stations
Roller material :
45# steel
Voltage :
380V3PHASE
Main power :
7Kw
Description

Technical Parameter

1. The whole machine is controlled by industry computer-PLC.

2. Working Speed: 8-12meters / min

3. Forming machine: 18 stations

4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome

5. Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining

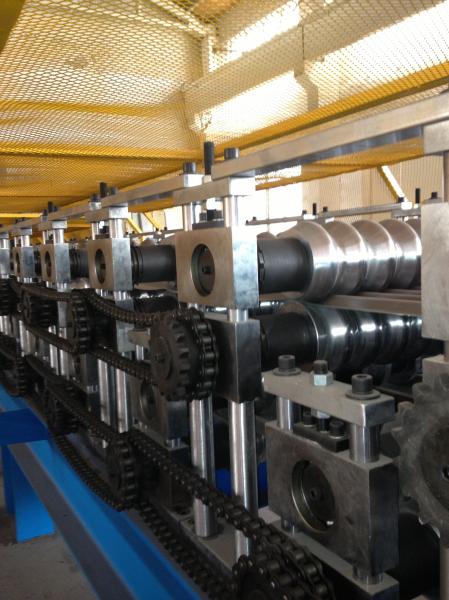

6. Driven system: Chain Driven 1.2 inches 20A double chain with longer shafts

7. Main Power with reducer: 7.5KW

Main Components

Commodity & Description

Quantity

5T manual uncoiler

1 set

Leveing guiding

1 set

Servo feeding device

1 set

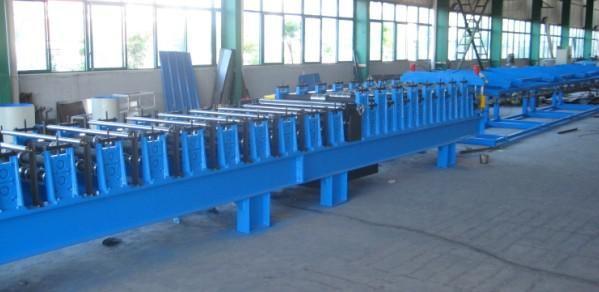

Main roll forming machine

1 set

Hydraulic station

1 set

Cutting device

1 set

Finished products tabel

1 set

PLC control system

1sets

Out tables

1 sets
Spare parts 1 sets

Working Flow of Roll Forming Machine

Uncoiling—Feeding&Leveling--Roll forming—Cutting—Products collecting

380V 3PHASE Double Layer Roll Forming Machine 45# steel Roller material CE Certification

Profile of product

380V 3PHASE Double Layer Roll Forming Machine 45# steel Roller material CE Certification

7*24 online EMAIL service!

1.We are Alibaba Assessed 9 years Gold Supplier.

2.We are a factory manufacturing,best production capability ,best quality control, Best Service .

3.Inspected by the Inspection Institution of Bureau Veritas Certification.

4.100% QC inspection Before Shippment.

5. competitve price.

FAQ

1) Q:What is the Warranty Machine ?

A1: For the roll forming machine , we have 3 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

2) Q: Do you have after sales support?

A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.

3) Q: How does your factory do regarding quality control?
A: Quality is priority. SUHANG always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before

it's packed for shipment.

4) Q: Do you sell only standard machines?

A: No, most of our machines are built according to customers specifications, using top brand name components
