Large Clear Span Steel Structure Warehouse Column Free Design 40m Width Portal Frame Prefab Building
Large Clear Span Steel Structure Warehouse Column Free Design 40m Width Portal Frame Prefab Building
Specifications
Main Steel Frame :
Q235B / Q355B Welded H-Section Steel
Design Software :
AutoCAD, Tekla, PKPM, 3D3S
Span Width :
10-40 Meters Clear Span
Model Number :
CSW-40
Wind Resistance :
Grade 12
Certification :
ISO 9001:2015
Payment Terms :
T/T, L/C
Supply Ability :
30000 Tons per Year
Packaging Details :
Steel components packed in bundles with protective wrapping, loaded in 40ft containers for sea freight
Surface Treatment :
Hot Dipped Galvanized or Painted
MOQ :
100 Square Meters
Structural Warranty :
50 Years
Delivery Time :
15-30 working days after deposit
Column Design :
Column-Free Interior
Brand Name :
ECER
Place of Origin :
Shandong, China
Price :
USD 30-60 / Square Meter
Roof Cladding :
Color Steel Sheet / Sandwich Panel
Description

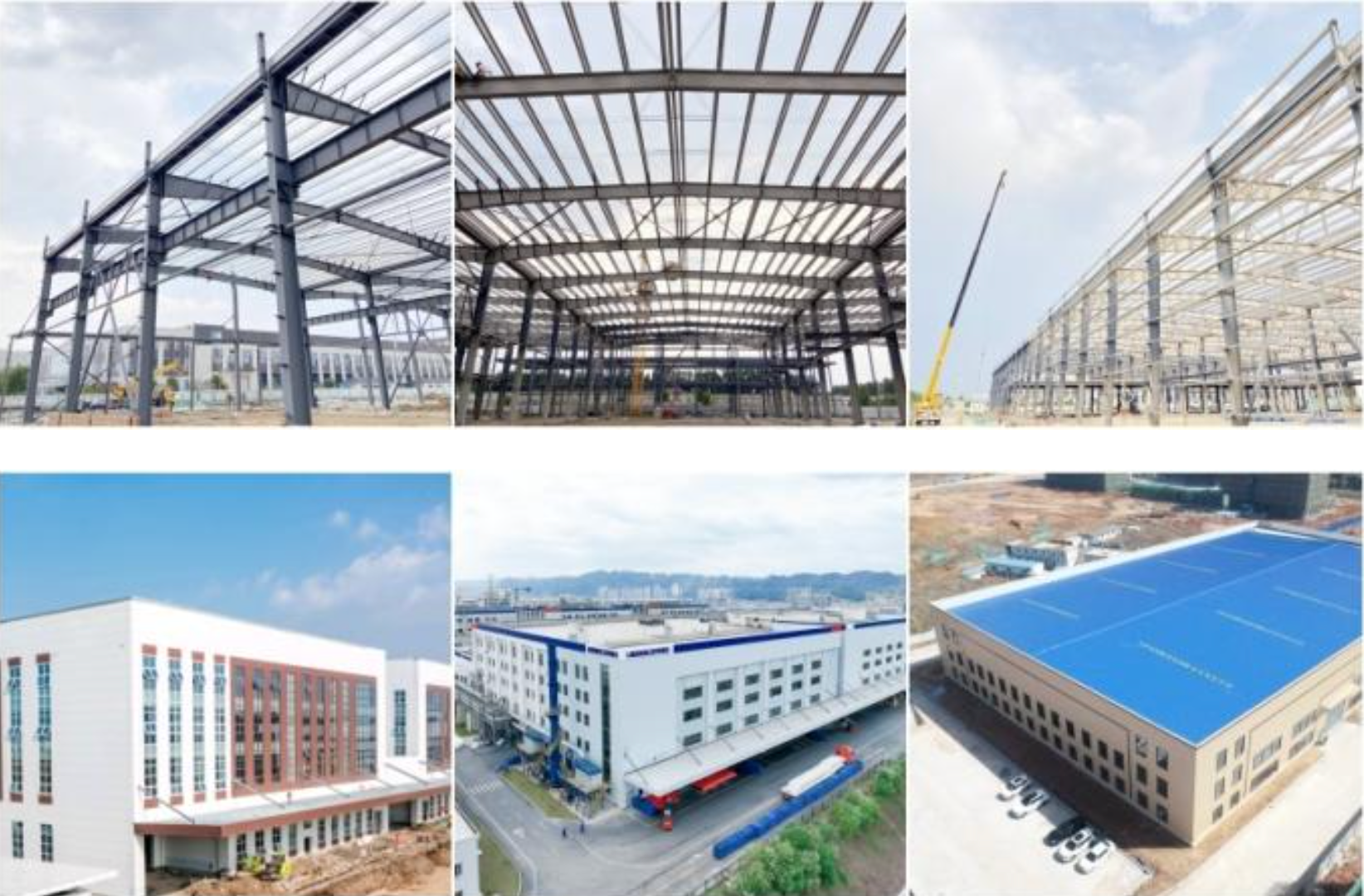

Large Clear Span Steel Structure Warehouse — Column-Free Portal Frame Design

The Large Clear Span Steel Structure Warehouse is engineered with a column-free interior spanning up to 40 meters, maximizing usable storage floor area and enabling unobstructed forklift and logistics movement. This portal frame prefab building eliminates interior columns entirely, providing the ideal solution for warehousing, distribution centers, and industrial storage where space optimization is critical.

Key Advantages of Clear Span Design

  • Maximum Storage Utilization: Column-free interior layout allows racking systems to be configured without obstruction, increasing storage density by up to 30% compared to conventional columned structures.
  • Optimized Logistics Flow: Forklifts, pallet trucks, and automated guided vehicles (AGV) navigate freely without column obstacles, reducing handling time and collision risk.
  • Flexible Layout Adaptability: Interior space can be reconfigured anytime without structural constraints, ideal for businesses with evolving storage needs.

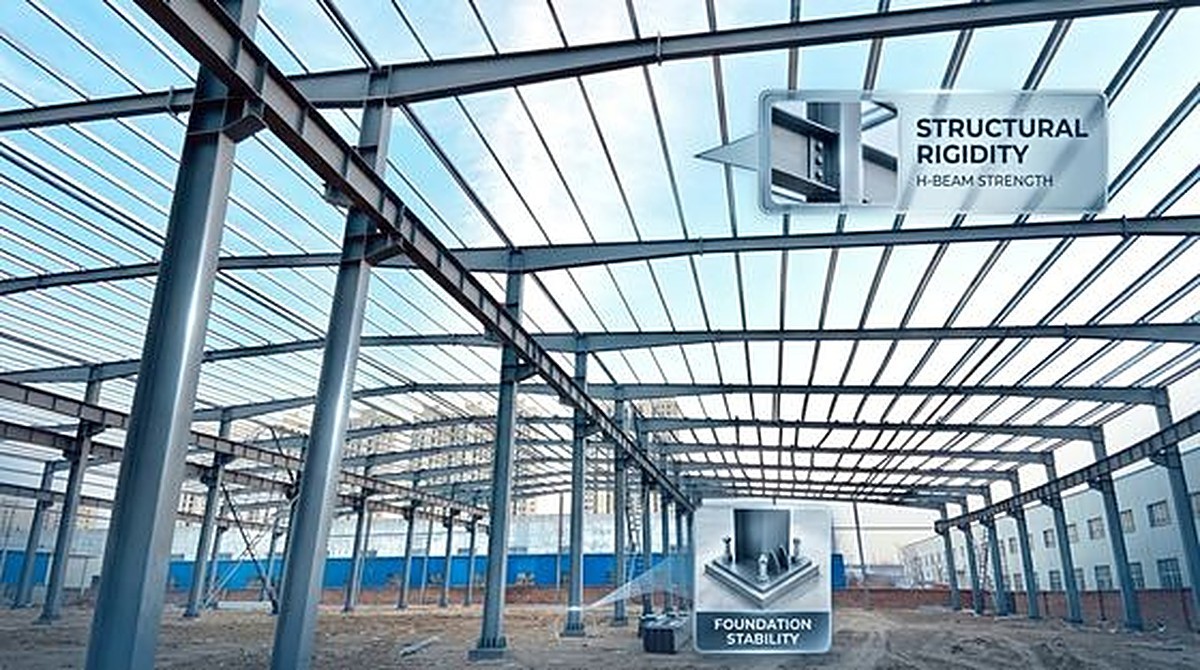

  • Superior Structural Engineering: Portal frame design using Q235B/Q355B welded H-section steel delivers exceptional load-bearing performance across wide spans.

Technical Specifications

Span Width10-40 Meters (Clear Span)
Main Steel FrameQ235B / Q355B Welded H-Section Steel
PurlinQ235/Q355B C and Z Galvanized Purlin
Roof CladdingColor Steel Sheet / EPS / Rock Wool Sandwich Panel
Wall PanelCorrugated Steel Sheet / Sandwich Panel
Structural Warranty50 Years
Wind ResistanceGrade 12
Earthquake ResistanceGrade 8
Design SoftwareAutoCAD, Tekla, PKPM, 3D3S, BIM

Applications

Ideal for logistics warehouses, e-commerce fulfillment centers, manufacturing storage, agricultural produce storage, and large-scale distribution hubs requiring column-free interiors for maximum operational efficiency.
