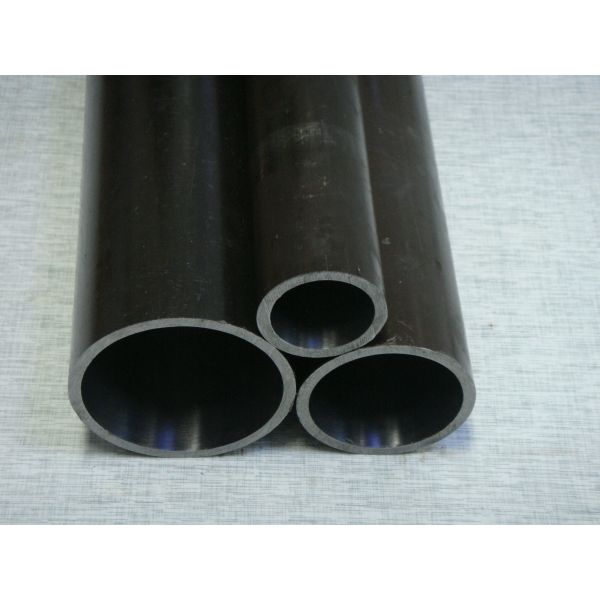

EN10216-2 Heat Exchanger Steel Tube P265GH Cold Drawing
EN10216-2 Heat Exchanger Steel Tube P265GH Cold Drawing
EN10216-2 Heat Exchanger Steel Tube P265GH Cold Drawing
EN10216-2 Heat Exchanger Steel Tube P265GH Cold Drawing
EN10216-2 Heat Exchanger Steel Tube P265GH Cold Drawing
EN10216-2 Heat Exchanger Steel Tube P265GH Cold Drawing
EN10216-2 Heat Exchanger Steel Tube P265GH Cold Drawing
EN10216-2 Heat Exchanger Steel Tube P265GH Cold Drawing
EN10216-2 Heat Exchanger Steel Tube P265GH Cold Drawing
EN10216-2 Heat Exchanger Steel Tube P265GH Cold Drawing
EN10216-2 Heat Exchanger Steel Tube P265GH Cold Drawing
EN10216-2 Heat Exchanger Steel Tube P265GH Cold Drawing
EN10216-2 Heat Exchanger Steel Tube P265GH Cold Drawing
EN10216-2 Heat Exchanger Steel Tube P265GH Cold Drawing
Specifications
Brand Name :
Joyruns
Model Number :
1/2” to 16”
Certification :
ISO9000
Place of Origin :
CHANGZHOU, CHINA
MOQ :
5 tons per size
Price :
Negotiable
Payment Terms :
TT OR LC
Supply Ability :
5000T PER MONTH
Delivery Time :
30DAYS
Packaging Details :
Plastic packing, oiling, wooden box
Standard :
EN10216-2
Grade :
P235GH, P265GH, 20Mn, 16Mo3,15CrMo
OD. Range :
6mm – 137mm
Wall thickness :
1mm-20m
Length :
Max length 12M
Type :
Seamless boiler tube
Description

EN10216-2 P265GH Cold drawing seamless steel tube for higher pressure

EN10216-2 P265GH steel pipeline is widely used in petrochemical, oil and natural gas industries. P235GH pipe is normalized carbon alloy steel. The chemical properties of the P235GH tube are typical, in which Mo 0.08% max and Cr 0.30% max are added.

EN10216-2 P265GH steel pipeline is a flat product of pressure steel (weldable high-temperature performance of alloy and alloy steel) manufactured by German and European standard DIN EN 10216, which EN10216-2 P265GH steel pipeline is used to manufacture pressure vessels, boilers and heat exchangers, steam pipes and pressure vessels.

Specifications:

Grade and Chemical Composition ( ％ ) and mechanical property


Standard


Grade


Chemical Composition


Mechanical Property

C

Si

Mn

P≤

S≤

Cr≤

Mo

Tensile Strength
(MPa)

Yield Strength
(MPa)

Elongation

L

t

EN10216-2

195GH

≤ 0.13

≤ 0.35

≤ 0.70

0.025

0.020

0.30

≤ 0.08

320~440

≥ 195

≥ 27

≥ 25

P235GH

≤ 0.16

≤ 0.35

≤ 1.20

0.025

0.020

0.30

≤ 0.08

360~500

≥ 235

≥ 25

≥ 21

P265GH

≤ 0.20

≤ 0.40

≤ 1.40

0.025

0.020

0.30

≤ 0.08

410~570

≥ 265

≥ 23

≥ 20

20MnNb6

≤ 0.22

0.15~
0.35

1.00~ 1.50

0.025

0.020

-

-

500~650

≥ 355

≥ 22

≥ 20

16Mo3

0.12~
0.20

≤ 0.35

0.40~ 0.90

0.025

0.020

0.30

0.25~
0.35

450~600

≥ 280

≥ 22

≥ 20
