Specifications
Brand Name :
Milky Way
Model Number :
12m
Certification :
ISO//BV
Place of Origin :
China
MOQ :
one 40HQ
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
300 pieces pole per day
Delivery Time :
usually 2 weeks after confirming
Packaging Details :
as per customer request
Tolerance Of Dimension :
+- 2%
Wind Resistance :
3-500km/h
Material :
GR50 GR65 S500 S355
Height :
12m
Welding :
Welding confirms with international welding standard of CWB
Powder coating :
Pure polyester powder painting, color is optional
Design :
Against 8 Grade Of Earthquake
Product Name :

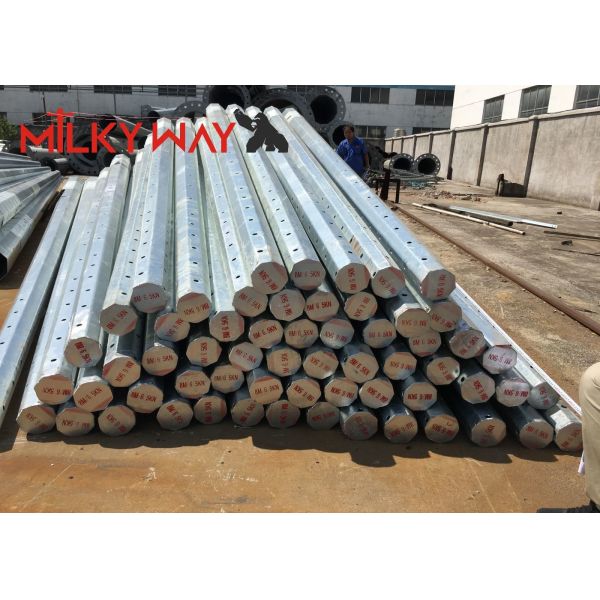

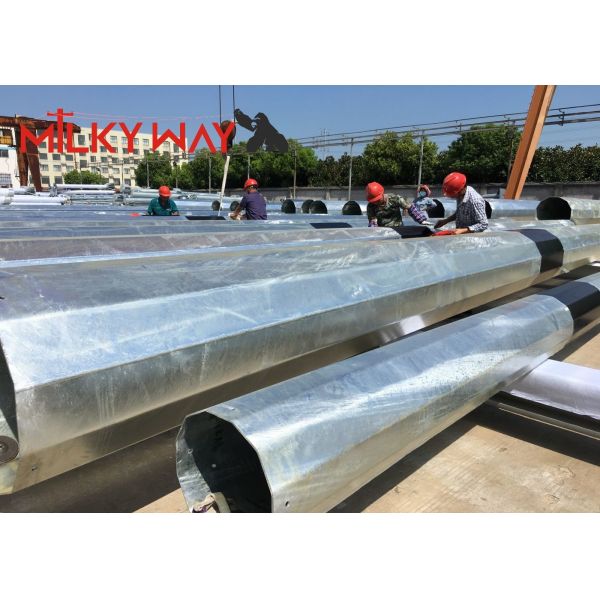

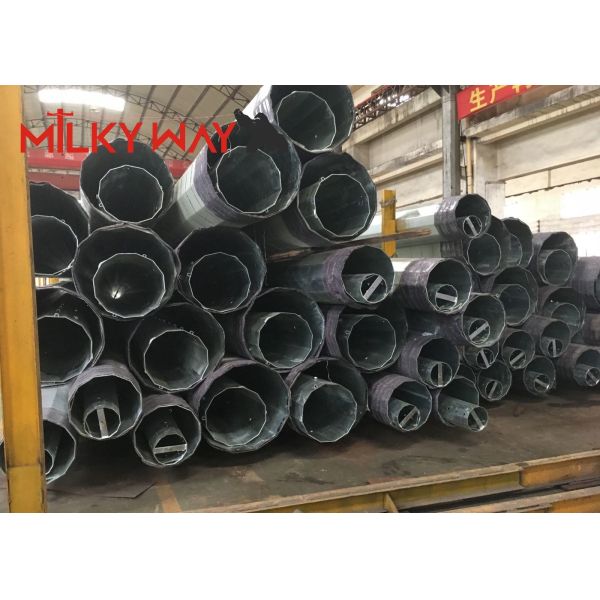

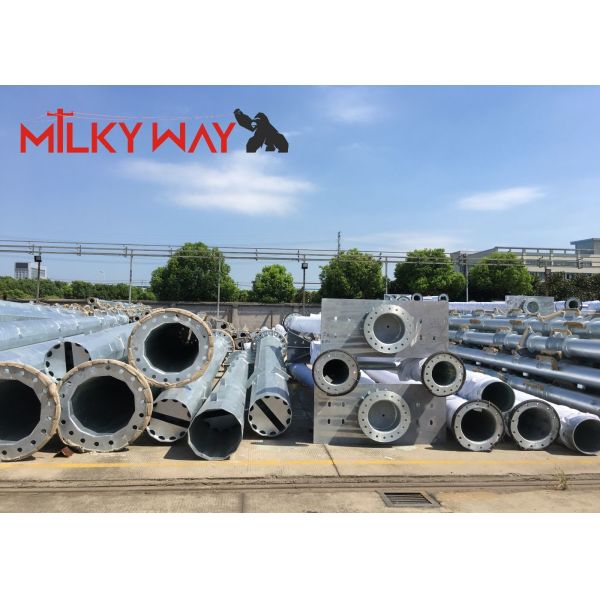

Steel Power Pole 12m Height Hot Dip Galvanized with Minimum Breaking load 2.5KN 10KN 20KN
Description
Product Description

Specification

Available height 12m
Electric pressure 10kv--550kv
Material Q345B/A572,minimum yield strength>=345MPA,
Q235B/A36,minimum yield strength>=235MPA
Galvanized Hot dip galvanization,thickness is>=12um
Delivery lead time 30 days after receiving 30% deposit
Lifetime Minimum 25 years
Structure Overlap connection/Flange connection
Galvanizing standard EN ISO 146,ASTM/A123
Manufacturing and workmanship BS449 or AISC
Welding standard

BSEN287,BSEN288 or equivalent

Steel Power Pole 12m Height Hot Dip Galvanized with Minimum Breaking load 2.5KN 10KN 20KN

Packaging & Shipping

Our poles as normal cover by Mat or straw bale at the top and bottom and wood between the poles to avoide the damage on the galvanization of the pole ,anyway also can following by client required , The loading capacity of 40HC or OT an be calulated calculation base on the client actually specification and data.

As an BV ,ISO , approved supplier in China ,we have more than 20 years produce and export steel pole ,and we can assure the pole we offered is of sound quality which made from qualified material with our professional workers and advance equipment .

Steel Power Pole 12m Height Hot Dip Galvanized with Minimum Breaking load 2.5KN 10KN 20KN

Material

All of our material are purchased from famous mill factory to assure the quality

  1. A mill certificate issued by the mill factory with stamp and signature must be provided before unload the material in our factory ,otherwise we have our reason to refuse the material .
  2. Before put into production ,all the material must pass the chemical and physical analysis to make sure that they have meet the requested strength and component.

To assure our products qualified ,we take steps as follows :

1. Management team : We have employ the foreign export to take chaege of the overall managemnt ,especailly the technical managemnt and quality management .

2.Introducing ISO management ,We are awared ISO 9001:2008 certificate . .

3.QC Inpection:It is our company policy that all the finish product should be inspected by our specialzed QC in every manufacure steps and beofore every shipment

Steel Power Pole 12m Height Hot Dip Galvanized with Minimum Breaking load 2.5KN 10KN 20KN

Company Information

Established in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .

Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on.

We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia , Dominica, Congo, Togo and Guniea so on.
