2 in 1 Automatic Polishing Machine for Steel Tanks with 8-15m2 per hour Efficiency and Custom Design Service
2 in 1 Automatic Polishing Machine for Steel Tanks with 8-15m2 per hour Efficiency and Custom Design Service
2 in 1 Automatic Polishing Machine for Steel Tanks with 8-15m2 per hour Efficiency and Custom Design Service
2 in 1 Automatic Polishing Machine for Steel Tanks with 8-15m2 per hour Efficiency and Custom Design Service
2 in 1 Automatic Polishing Machine for Steel Tanks with 8-15m2 per hour Efficiency and Custom Design Service
2 in 1 Automatic Polishing Machine for Steel Tanks with 8-15m2 per hour Efficiency and Custom Design Service
2 in 1 Automatic Polishing Machine for Steel Tanks with 8-15m2 per hour Efficiency and Custom Design Service
2 in 1 Automatic Polishing Machine for Steel Tanks with 8-15m2 per hour Efficiency and Custom Design Service
2 in 1 Automatic Polishing Machine for Steel Tanks with 8-15m2 per hour Efficiency and Custom Design Service
2 in 1 Automatic Polishing Machine for Steel Tanks with 8-15m2 per hour Efficiency and Custom Design Service
2 in 1 Automatic Polishing Machine for Steel Tanks with 8-15m2 per hour Efficiency and Custom Design Service
2 in 1 Automatic Polishing Machine for Steel Tanks with 8-15m2 per hour Efficiency and Custom Design Service
Specifications
Brand Name :
Trancar Industries
Model Number :
TCM-T
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD 9000-5000 Dollar per set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
20 sets per Month
Delivery Time :
45 work days
Packaging Details :
Custom design plywood box
Dimension :
3500x1600x3080mm
Weight :
2500 kg
Voltage :
380V 400V 415V etc
Polishing Efficiency :
8-15m2 per hour
Surface Roughness :
<=0.25μm
Input Power :
15 kw
Description

TCM-YT 2 in 1 steel shell buffing machine dish buffing machine automatic polishing machine

Stainless steel tank surface automatic polishing grinding buffing machine with semi-autoamtion control system from China.

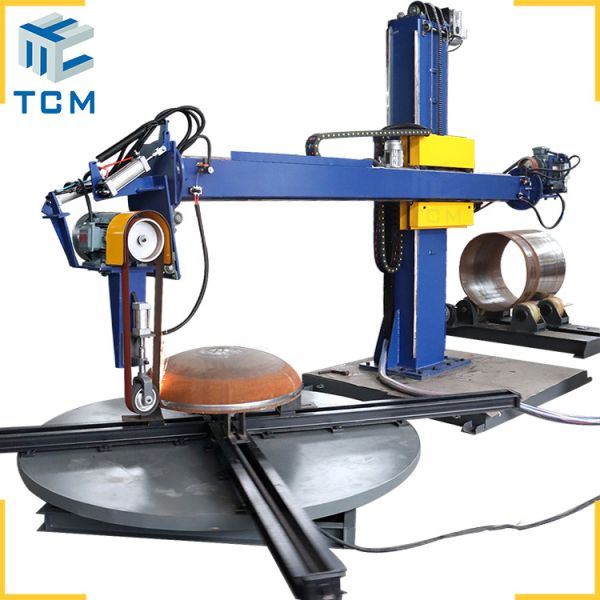

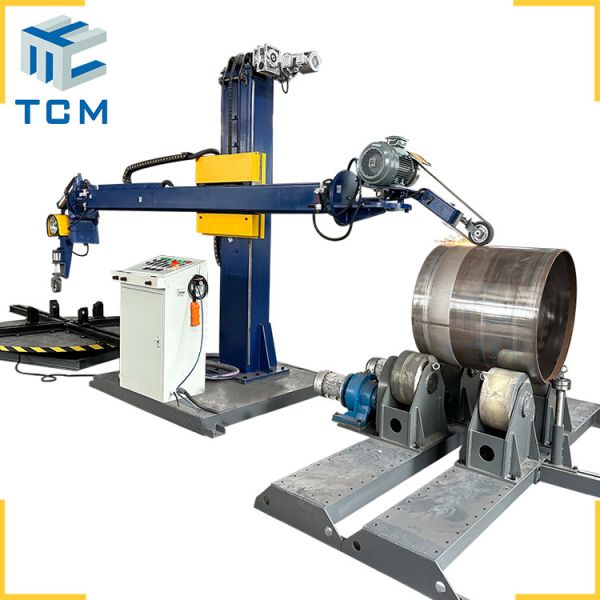

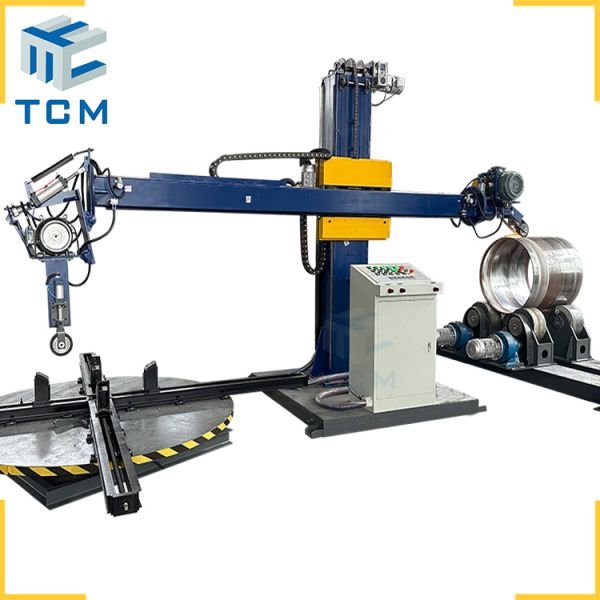

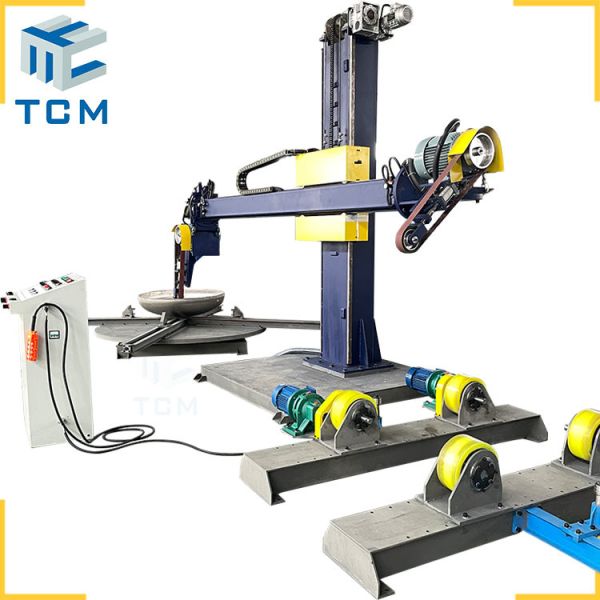

Trancar Industries TCM-YT column and boom manipulator stainless steel tank shell and dish automatic buffing machine,This model is suitable for not only all kinds of stainless steel tanks,industrial tanks internal and external polishing grinding and buffing,but dished head tank cap surface’s polishing grinding and buffing.Custom design service is available per your workshop or project's demands.


This machine is widely used in medical area,chemical,environmental purification,food ,beverage and water filter,etc.

It could buffing all kinds of steel metal cylinder tanks such as,atmospheric / pressure tanks,CIP-tanks,Milk / Cream / Yoghurt Tanks,Chocolate Processing tanks,Beer Fermentation Tanks,Yeast propagation Tanks,Mixer,Bio / Cosmetics Reactors,Pharma Mixers,centrifugal cylinder shell,crystal furnace tank shell etc.

2 in 1 Automatic Polishing Machine for Steel Tanks with 8-15m2 per hour Efficiency and Custom Design Service


TCM-YT 2 in 1 steel tanks and dishes automatic buffing polishing machine

Normal configuration(customer design acceptable)

Steel metal tank size

Outside diameter

400~5000mm / 7000 mm


Inside diameter

400~5000mm / 7000 mm


Length

<=5000mm / 8000 mm


Tank Roller Max.Loading capacity

1 Ton / 2 Ton / 5 Ton /10 Ton or customization

(13T,15T,20T)


Dish end/Tank Head Size

Inside & outer Diameter

450~5000mm / 6000 mm


Turntable Max.loading capacity

1 Ton / 2 Ton /5 Ton / 10 Ton for option or custom design 15 Ton,20 Ton.


Polishing Precision

Surface roughness(Ra)

<=0.25μm


Production Efficiency

Polishing working speed

6~12 m2/h


Total Dimension

Machine Dimension

4500*1600*3080mm


Column Dimension

300x400x8 mm


Beam Dimension

150x200x6 mm


Input total Power

/

15 kw


Power Supply

380V 415V / 50Hz 60HZ / 3p or Customization


Machine Weight

/

3550kg


Color

Grey/Green/Blue/Red/Yellow Custom design


Suitable Polishing Materials

Abrasive sanding belts,grinding wheels. (flap/cloth/ emery/Nylon wheel etc)


Trancar Industries Inox cylindrical tank shell automatic polishing delivery & package:


Packaging and delivery:

1,Plywood case+PE Film+ Carton protection.
2,or based on your order requirements.
