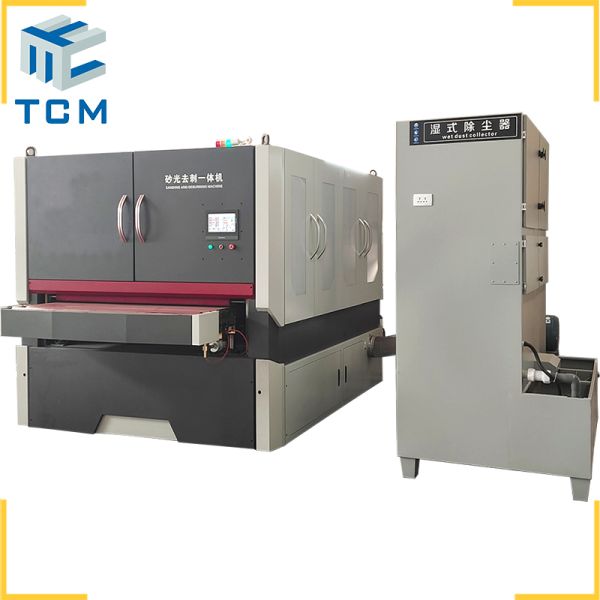

Steel Sheet metal work piece sanding deburring edge rounding machine
Steel Sheet metal work piece sanding deburring edge rounding machine
Steel Sheet metal work piece sanding deburring edge rounding machine
Steel Sheet metal work piece sanding deburring edge rounding machine
Steel Sheet metal work piece sanding deburring edge rounding machine
Steel Sheet metal work piece sanding deburring edge rounding machine
Steel Sheet metal work piece sanding deburring edge rounding machine
Steel Sheet metal work piece sanding deburring edge rounding machine
Steel Sheet metal work piece sanding deburring edge rounding machine
Steel Sheet metal work piece sanding deburring edge rounding machine
Steel Sheet metal work piece sanding deburring edge rounding machine
Steel Sheet metal work piece sanding deburring edge rounding machine
Specifications
Brand Name :
Trancar Industries
Model Number :
TCM-PM-S
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD 5000-25000 Dollar per set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
20 sets per Month
Delivery Time :
45 work days
Packaging Details :
Custom design plywood box/Carton Boxes
Product Name :
deburring edge rounding machine
Dimensions :
3700x2200x2200 mm
Weight :
2800kg
Voltage :
380V 400V 415V etc
Color :
Blue/Red/Grey
Condition :
100% new
Automation :
PLC Automatic
Usage :
laser cutting parts surface polishing deburring
Warranty :
18 Month
Provide :
Custom design service
Description

Steel Sheet metal work piece sanding deburring edge rounding machine


TCM -PM series Sanding & deburring machine is mainly used for steel pieces or sheet’s surface deburring, chamfering and fine surface finishing,such as sanding,brushing,workable for carbon steel plate, stainless steel plate, aluminum plate, copper plate and other plates.


Trancar Industries PLC sanding & deburring machine widely used for laser cutting parts’ surface finishing brushing and chamfering,removing steel metal sheet’s oxide layer, also for steel plate surface rust removing.

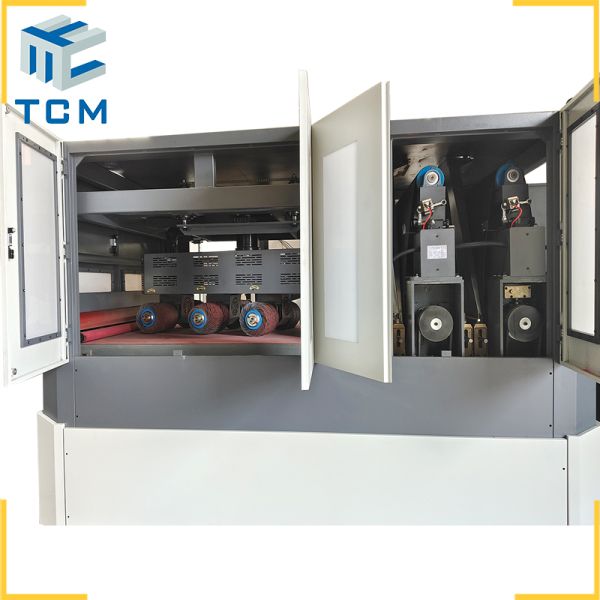

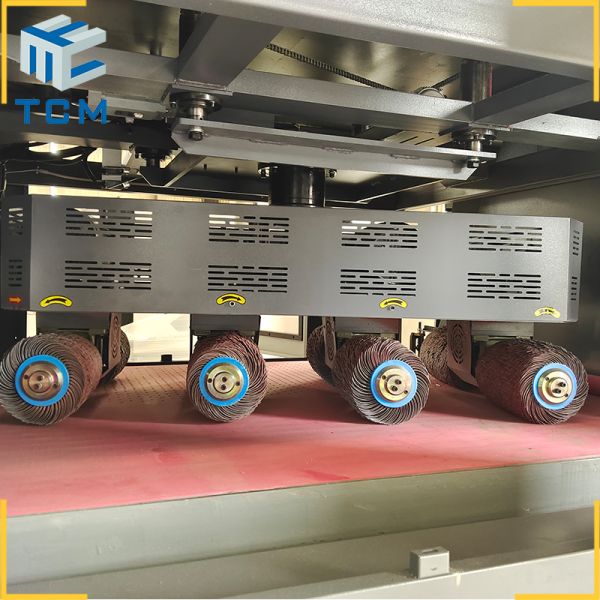

This type of mechanical equipment is composed of 2 sand belts and 4- 8 roller brushes and is mainly used for cleaning the burr produced by the metal sheet after cutting or stamping. In addition, it can also be used for rust removal and oxidation layer on the surface of sheet metal according to the situation; Stainless steel surface simple hairline. Aluminum plate, copper plate and zinc-coated steel surface treatment.


Steel Sheet metal work piece sanding deburring edge rounding machine


Metal sheet deburring edge rounding machine mainly parameter:

Max work width

1500mm

Fix method

Magnetic + vacuum adsorption double system

Work thickness

1-100mm

Conveying speed

0-5m/min

Sand belt 1 power

30kw(hard rubber roller)

Diameter of the rubber roller 1

210mm

Sand belt 2 power

30kw(soft rubber roller)

Diameter of the rubber roller 2

210mm

Feeding motor power

5.5Kw

Lifting motor power

0.55Kw

Roller brushes spindle speed

0-1000r/min

Roller brush alternating speed

0-35r/min

Vacuum adsorption

15Kw 2900r

Sanding belt specification

1520*2200mm (The sand belt grits can be changed at will)

Roller brush specification

300-300-40mm

Electric switch

Chint/Schneider

Bearing

TR

Solenoid valve

JELPC

Photoelectric sensors

AUTONICS for belt guiding, motor brakes

Trancar Industries metal sheet grinding & deburring machine and delivery:

Steel Sheet metal work piece sanding deburring edge rounding machine

Custom design service is available for metal sheet sanding & chamfering,contact Trancar Industries for more steel surface finishing solutions and equipments with best factory price.
